The HT430Y is a compact wheeled small slip loader. The HT430 small slip loader has a quick connection mounting plate so that users can easily connect different accessories. Such as snow throwers, doub
The HT430Y is a compact wheeled small skid steer loader. The HT430 skid steer loader has a quick connection mounting plate so that users can easily connect different accessories. Such as snow throwers, double ditchers, wood chippers, snowboards, snow shovels and so on.
HT430 wheel skid steer loader is used in earthmoving transportation and construction work environments, which can carry out heavy work such as digging, ditching, turning soil and handling materials.
Technical parameters of HT430 wheel skid steer loader
Maximum working height
2400mm
Maximum pin height
2200mm
Maximum discharge height
2000mm
Maximum discharge distance
800mm
Bucket swing Angle
55°
Bucket discharge Angle
40°
Departure Angle
20°
Total height
1350mm
Ground height
100mm
Wheelbase
860mm
No bucket length
2020mm
Total width
1200mm
Bucket width
1200mm
Total length (with bucket)
2600mm
Engine Rated power
Briggs&Stratton 23Hp
Engine Rated speed
3600rpm
Noise
≤95 Db
Fuel tank volume
30 L
Hydraulic tank volume
20 L
System Pressure
25MPa
Standard flow
33L/min
Traveling pump flow
75L/min
Replenishment pump flow
10L/min
Working system
44L/min
Herringbone engineered tire
18*8.5-8
Carrying capacity
430Kg(62% tipping load)
Bucket volume
0.17 m3
Maximum lift
430Kg
speed
0-7 Km/h
Net weight
950Kg
Angle of climb
20degree

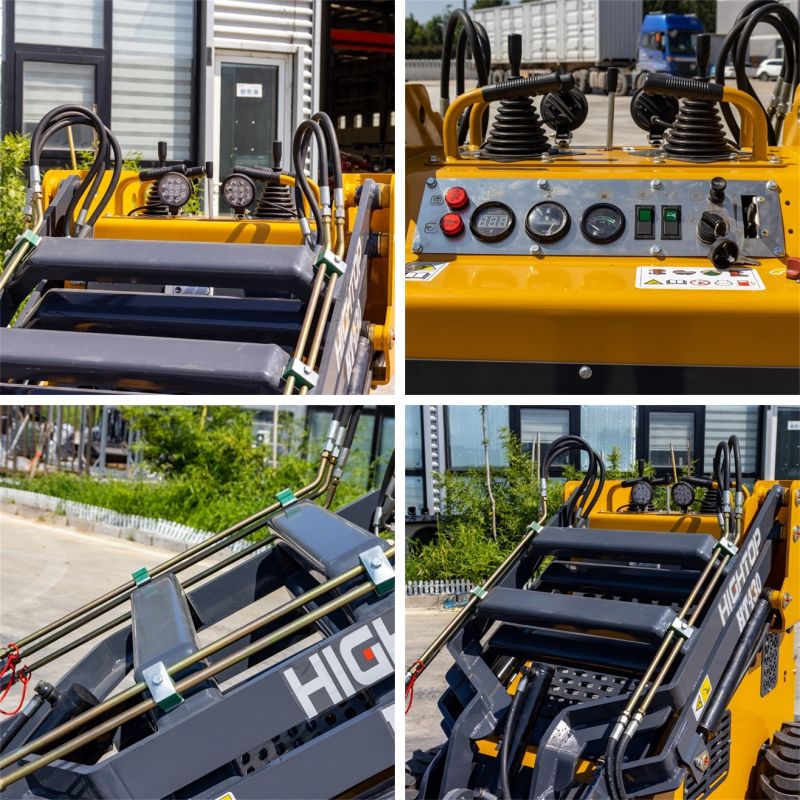

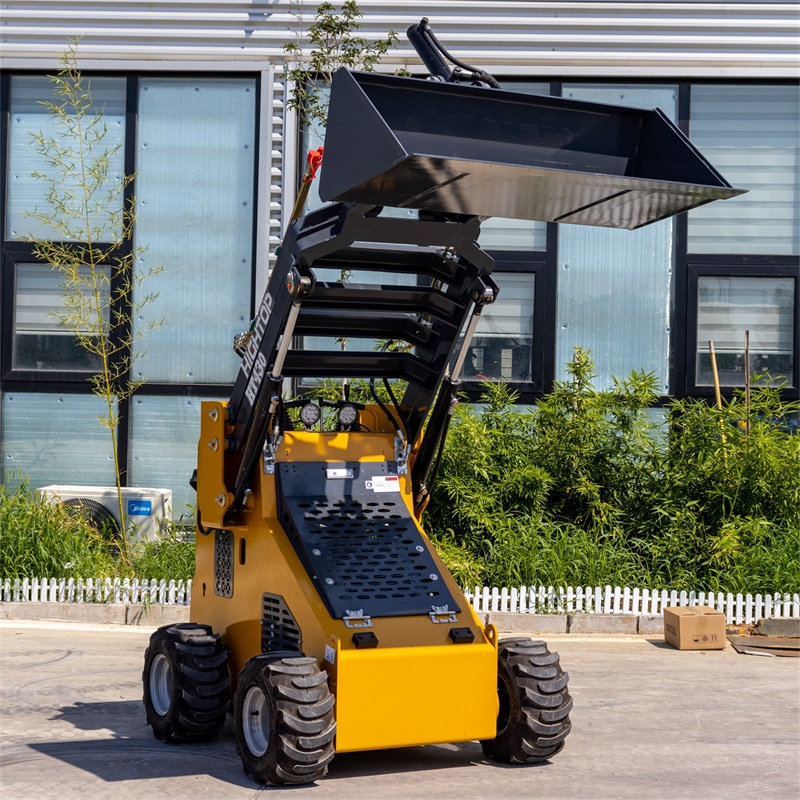

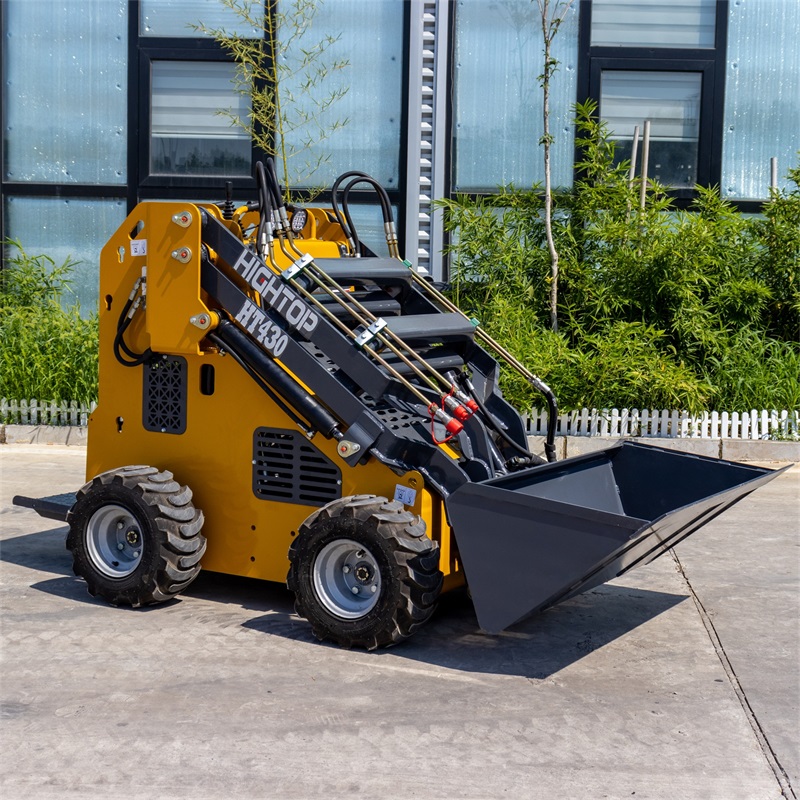

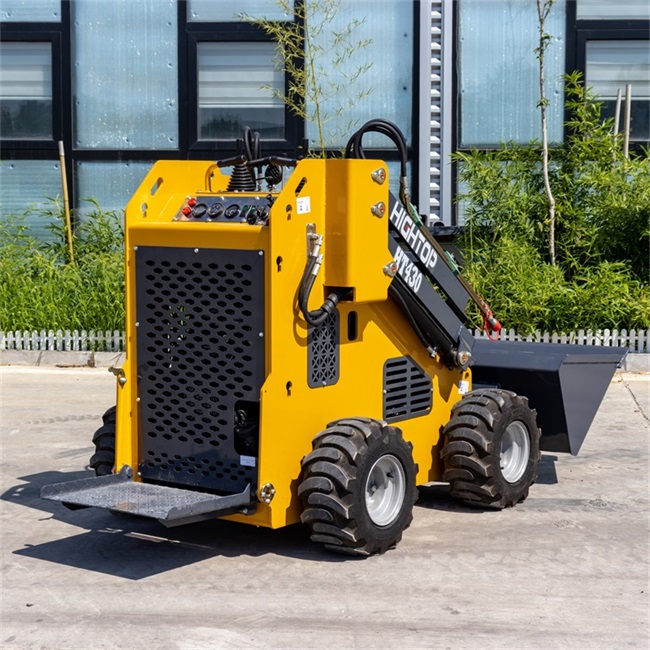

Real picture of the HT430 small skid steer loader
