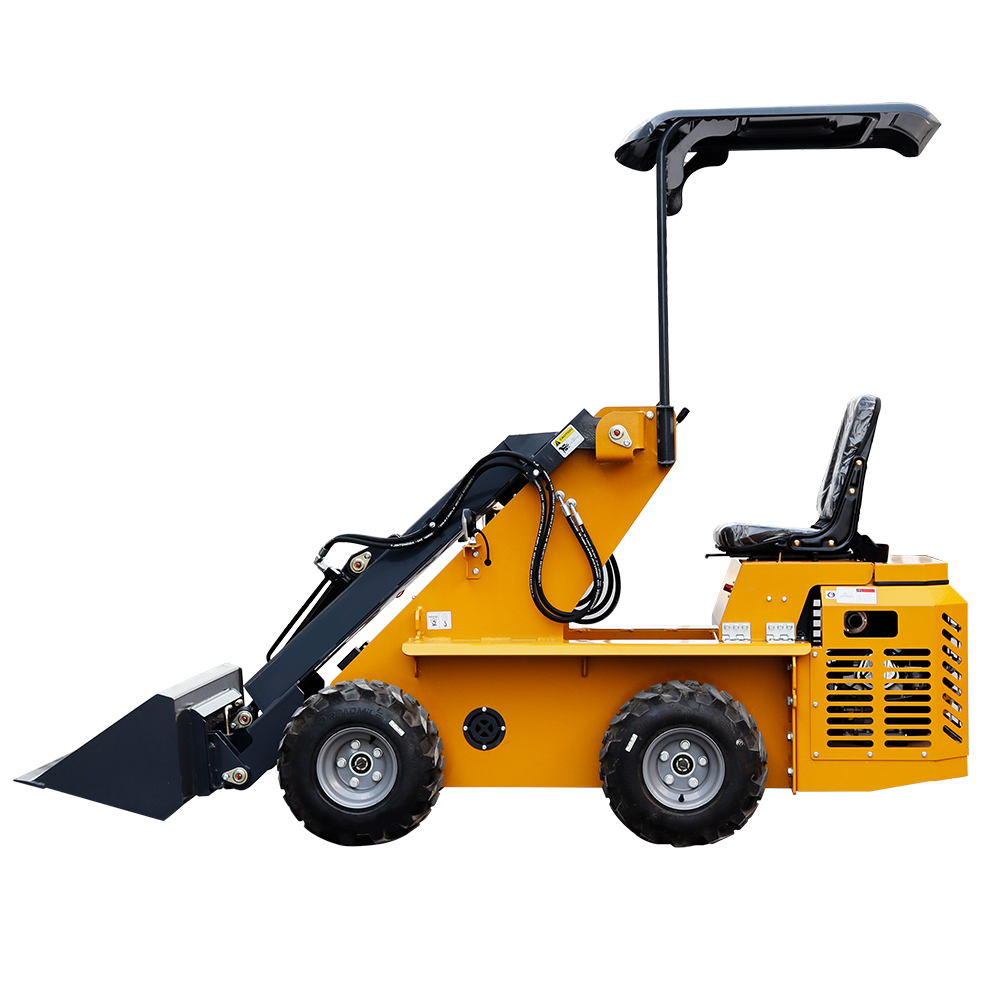

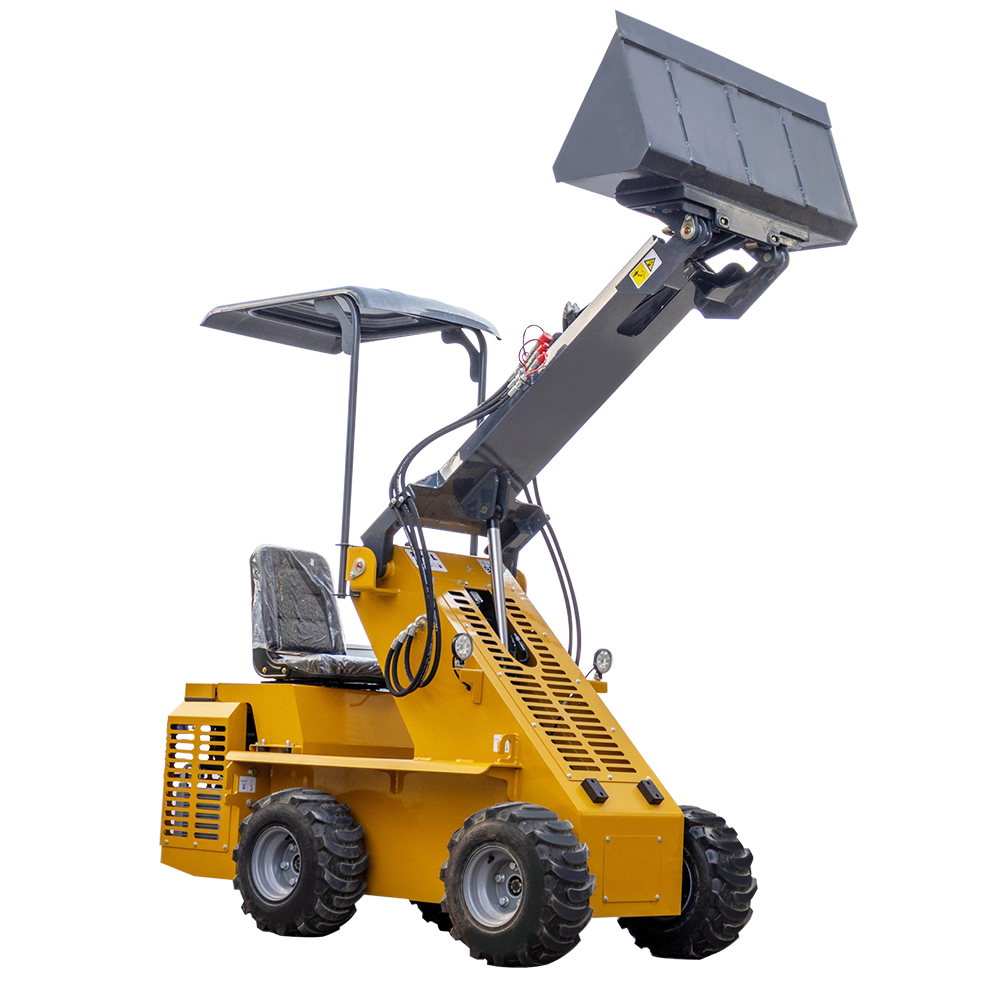

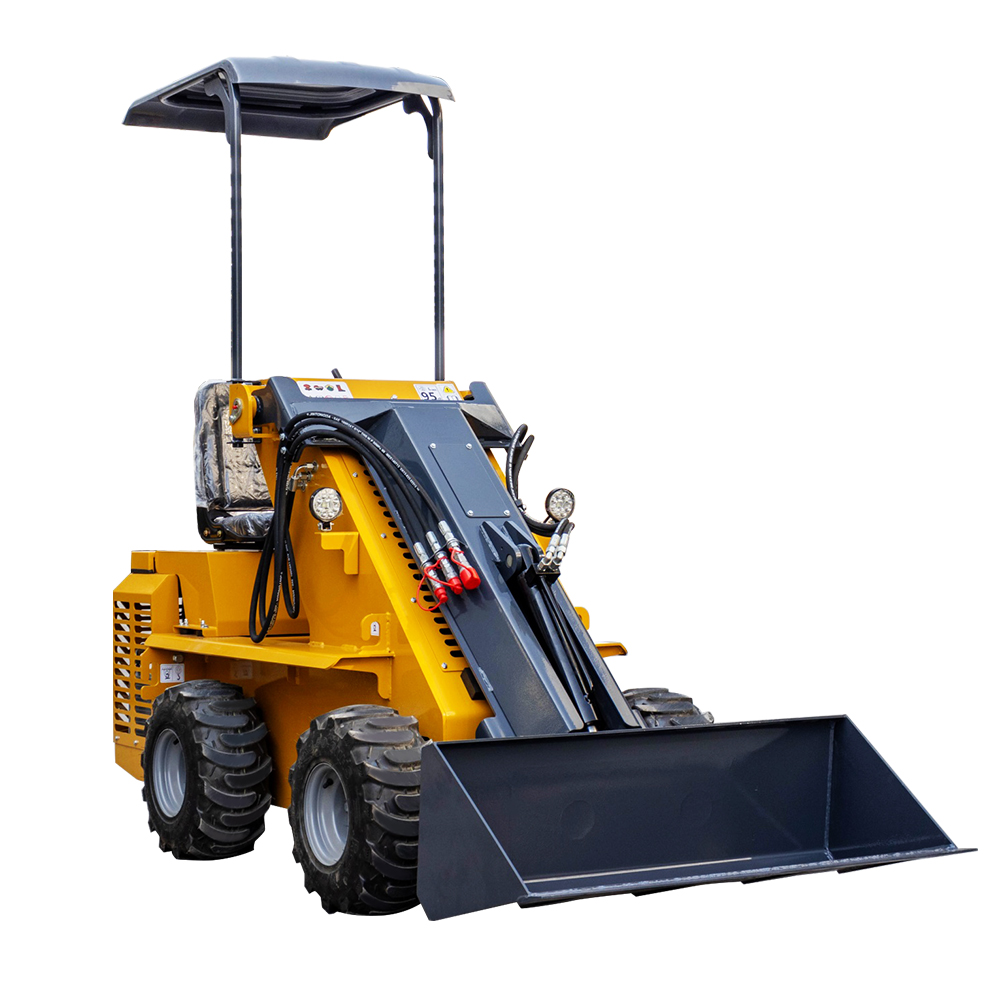

The series has compact design, small host width and good passability. Use variable amplitude working arm. Ensures a strong load carrying capacity in a smaller width.
① The series has compact design, small host width and good passability. Use variable amplitude working arm. Ensures a strong load carrying capacity in a smaller width.
② The width of the main machine is the smallest in all the sliding machine products. To meet special operational requirements.
③ The product uses imported European and American hydraulic parts. Sensitive control, rapid response, is the best choice for small space operations.
|
Operating load (kg) |
300 |
|
Maximum driving speed: (high speed) |
8 |
|
Minimum travel speed: (low speed) |
4 |
|
Tire（track） model |
18*8.5-8 |
|
Engine brand: |
Briggs & Stratton Engine |
|
Rated power (HP) |
13.5HP |
|
Fuel tank capacity (L) |
20 |
|
Machine net weight: (kg) |
800 |
|
Working weight: |
1200KG |
|
Bucket capacity (m3) |
0.15 |
|
Overall operating height (mm) |
2750 |
|
Height to bucket hinge pin (mm) |
2200 |
|
Overall length ithout bucket（mm） |
2180 |
|
overall length with bucket(mm) |
2680 |
|
Dumping angle at maximum height(°) |
38 |
|
Dumping height(mm) |
1770 |
|
Dumping reach(mm) |
200 |
|
Wheelbase(mm) |
950 |
|
Ground clearance(mm) |
140 |
|
Big arm width: (mm) |
340 |
|
Width (mm) |
960 |
|
Bucket width (mm) |
1000 |
