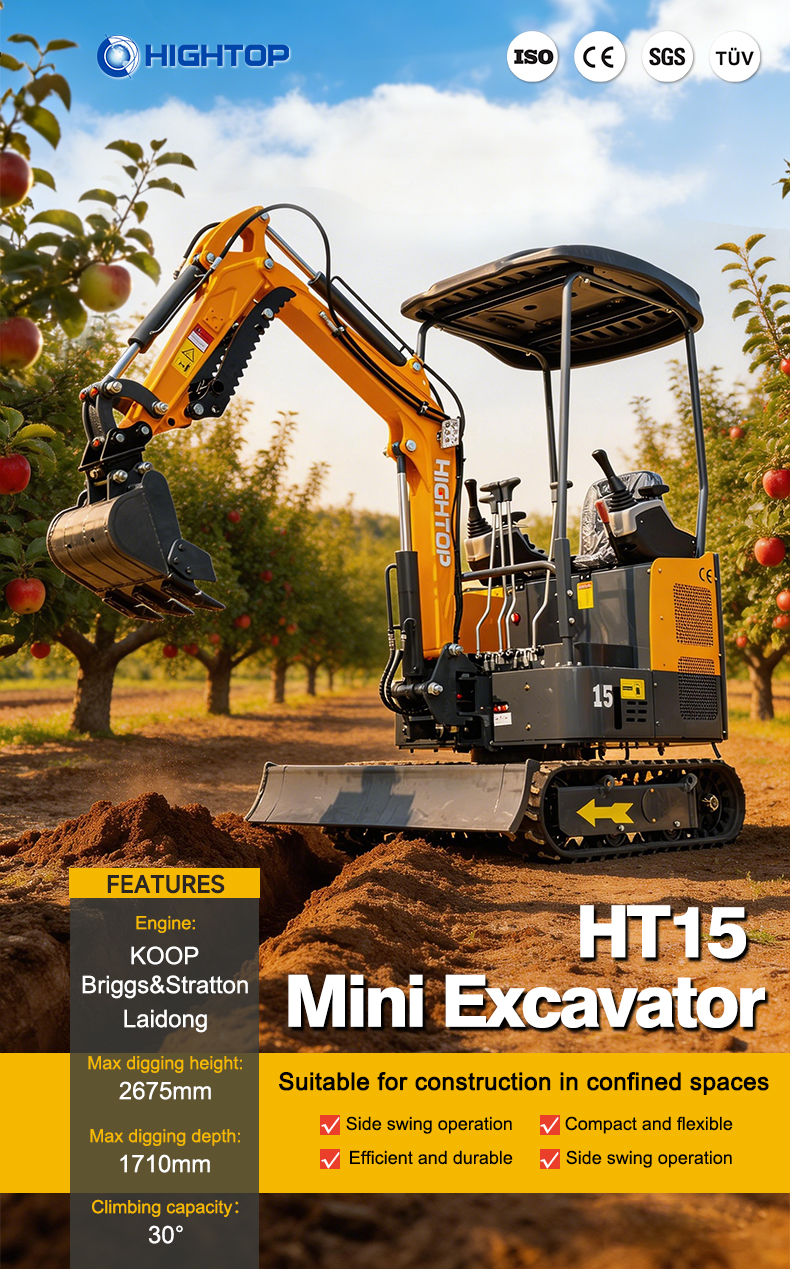

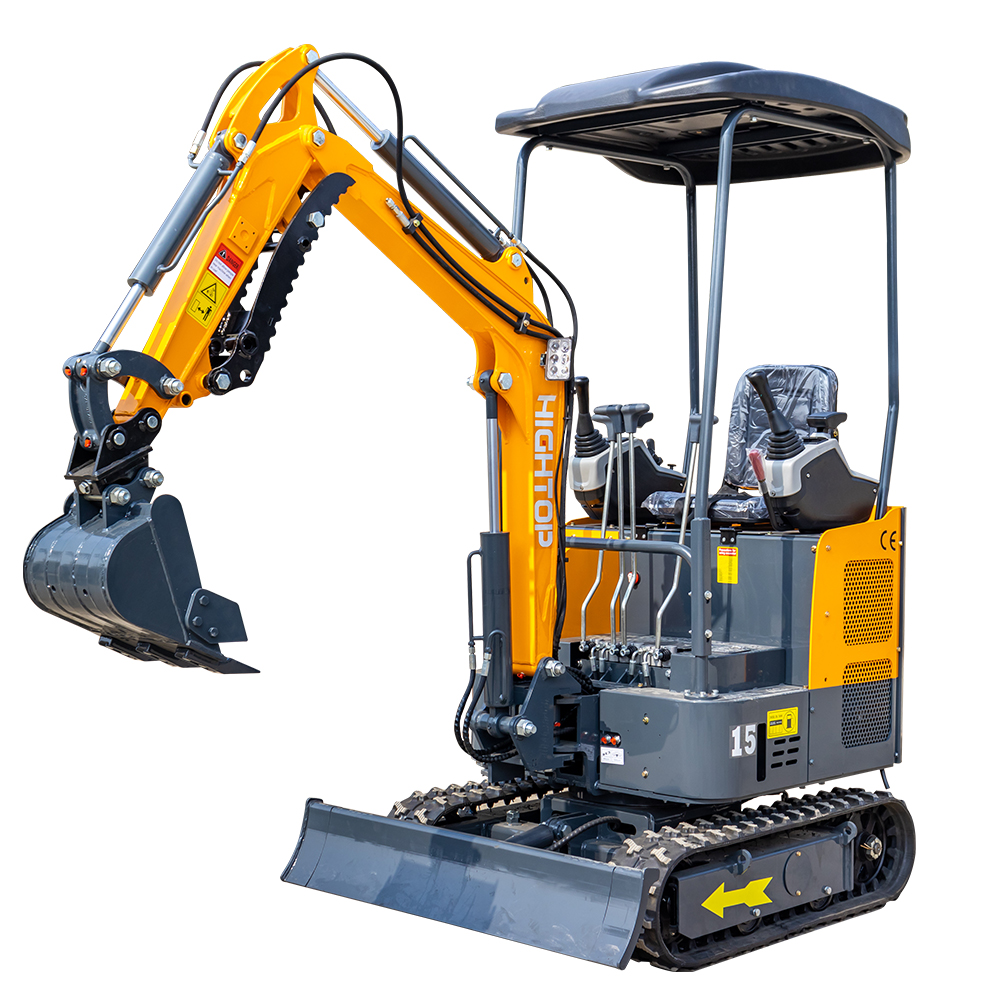

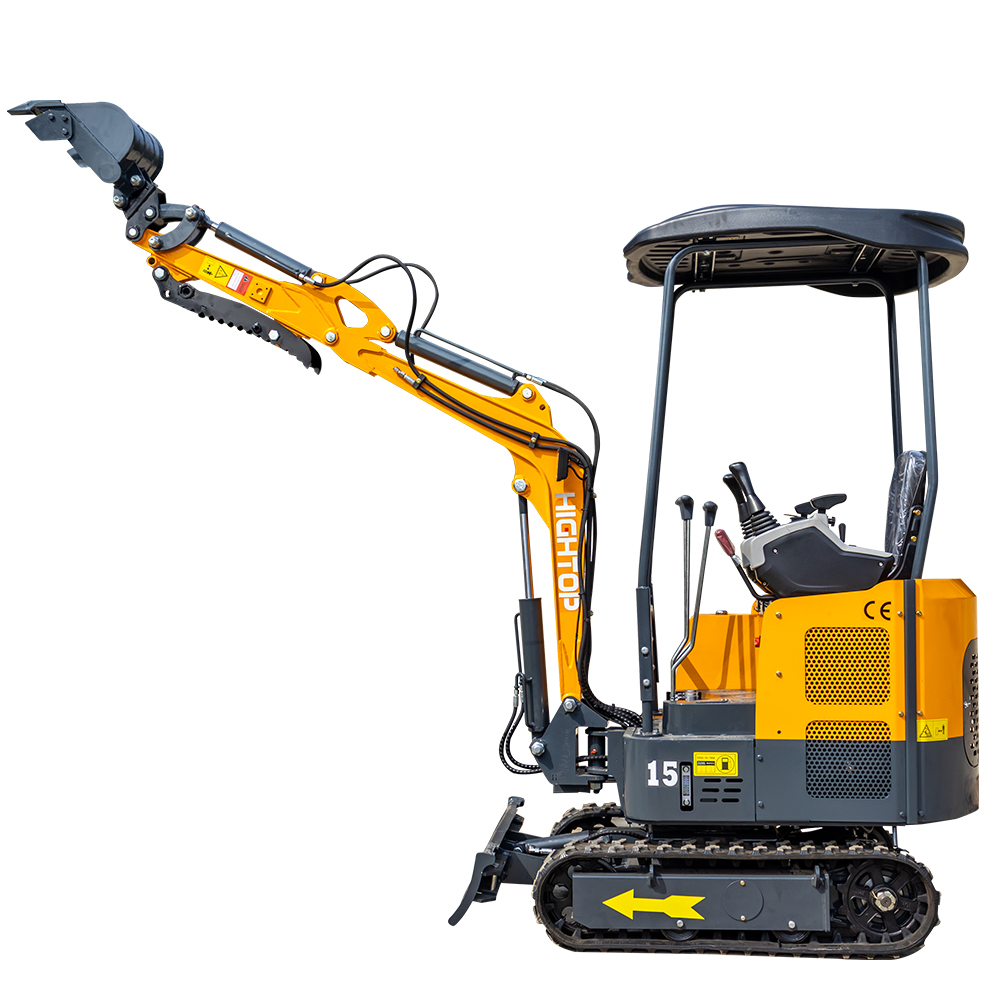

HT15 Mini Crawler Excavator Side swing working device enables excavation alongside walls without frequent machine repositioning
HT15 Mini Crawler Excavator Side Swing Device – Precision Construction

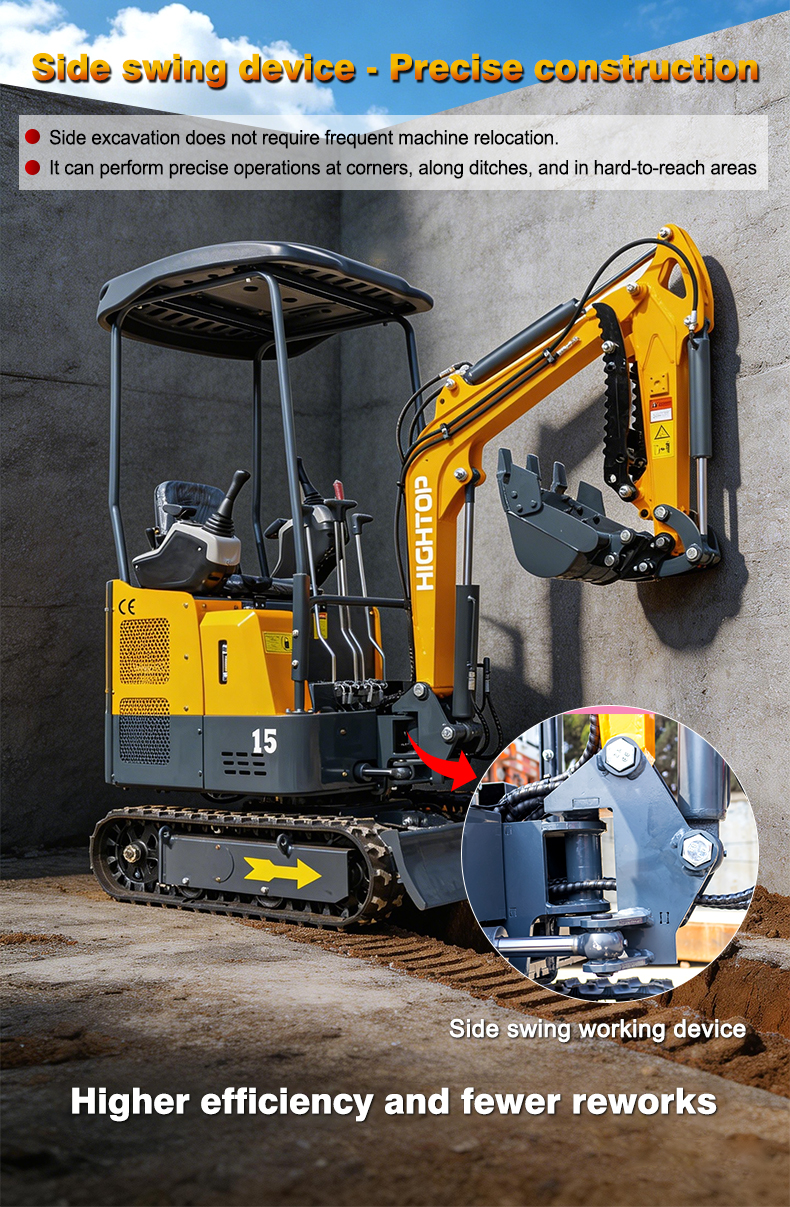

Side swing working device enables excavation alongside walls without frequent machine repositioning
Precision operation in corners, trench edges, and dead spaces
Maximum digging depth: 1710mm
Maximum digging reach: 2920mm
Maximum dumping height: 1815mm

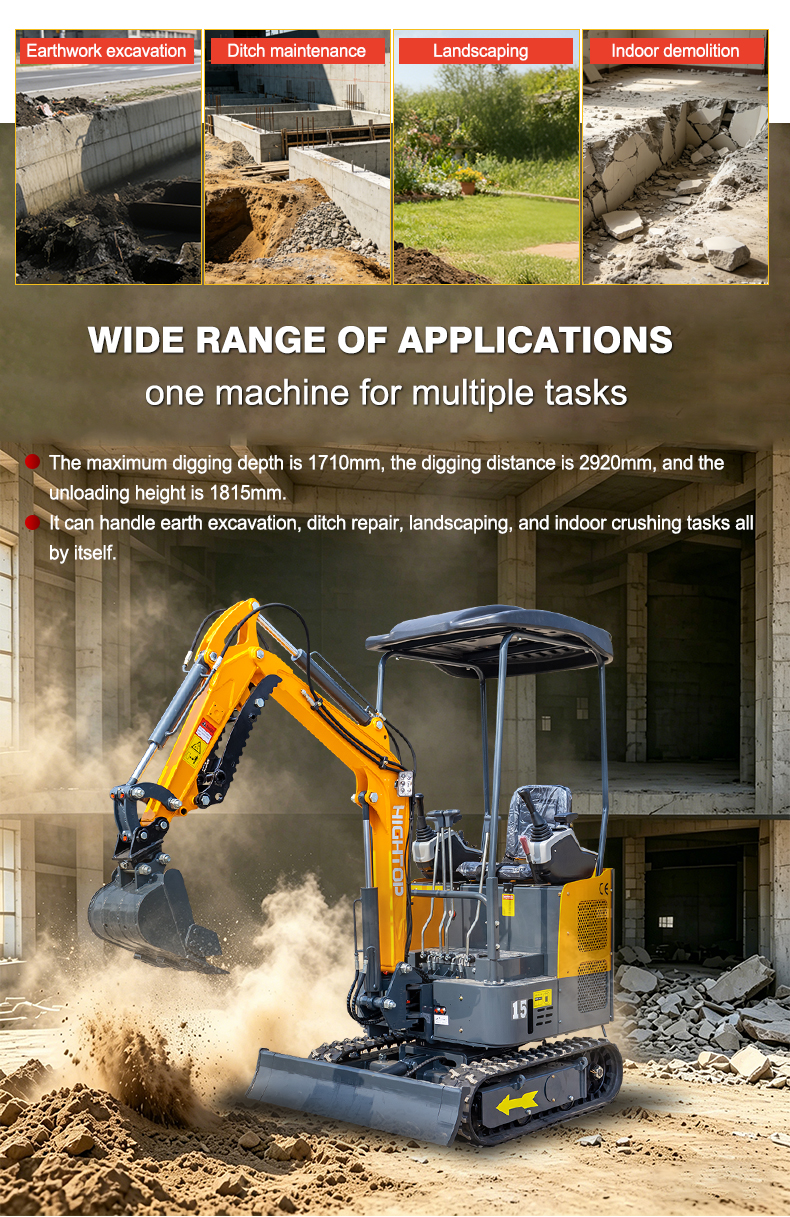

Versatile for earthmoving, trench trimming, landscaping, and indoor demolition

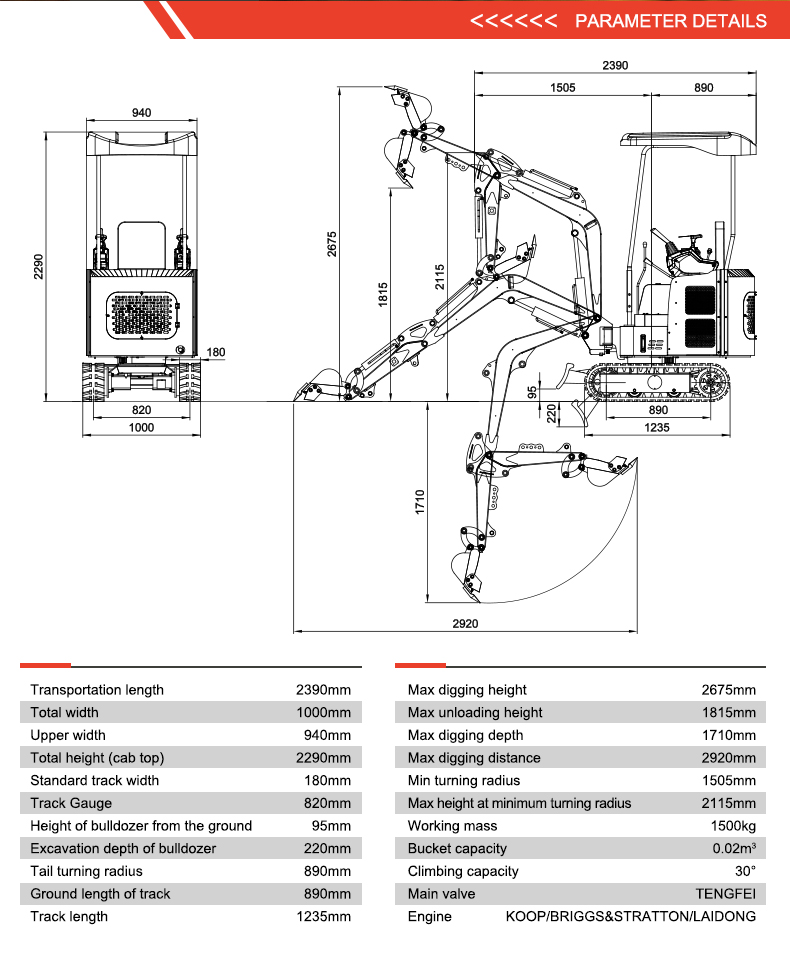

HT15 Side Swing + New Armrest Console Micro-Excavation Parameter Table
| Overall Dimensions (Unit: mm) | |
| Transport Length A | 2390 |

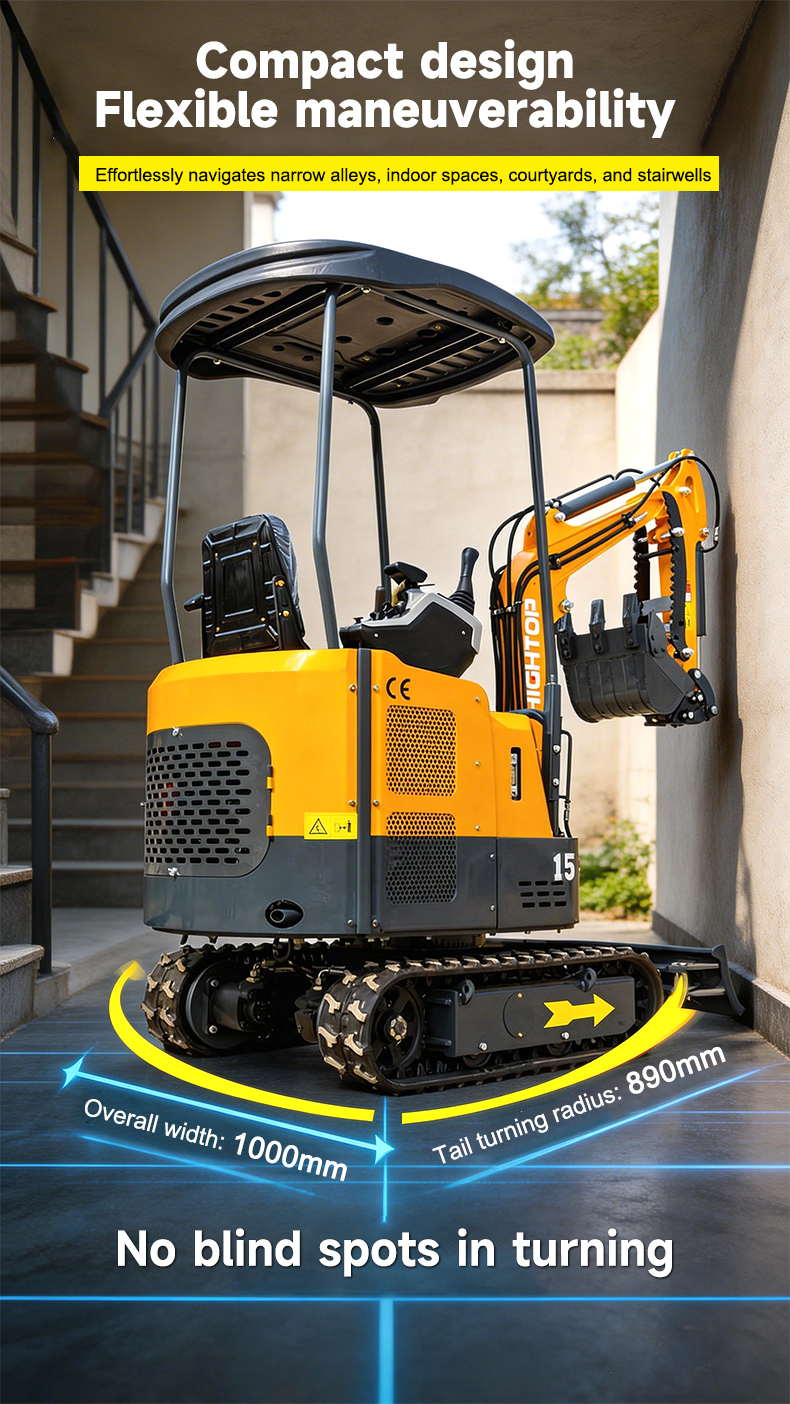

| Total Width B | 1000 |
| Upper Width D | 940 |
| Total Height (Cab Top) C | 2290 |
| Standard Track Shoe Width F | 180 |
| Track Gauge E | 820 |
| Blade Ground Clearance G | 95 |
| Blade Digging Depth H | 220 |
| Tail Swing Radius I | 890 |
| Track Ground Contact Length J | 890 |
| Track Length K | 1235 |
| Working Range (Unit: mm) | |
| Maximum Digging Height a | 2675 |
| Maximum Dumping Height b | 1815 |
| Maximum Digging Depth c | 1710 |
| Maximum Digging Distance d | 2920 |
| Minimum Swing Radius e | 1505 |
| Maximum Height at Minimum Swing Radius f | 2115 |
| Performance Parameters | |
| Operating Weight (KG) | 1500kg |
| Bucket Capacity M^3 | 0.02 |
| Working Equipment Type | Backhoe |
| Gradeability | 30 degrees |
| Main Components | |
| Engine | Kipor/Briggs & Stratton/Laidong |
| Main Valve | Tengfei |
