HT15 Mini Excavator / 1.5T Mini Excavator

HT15 Mini Excavator Double cylinder water cool engine, hydraulic joystick.

HT15 Mini Excavator / 1.5T Mini Excavator Description

HT15 Mini Excavator Description

Chinese manufacturer 1000kg hydraulic crawler mini excavator with competitive prices for sale

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
We also have 0.8 ton , 1 ton,1.6 ton, 1.8 ton,2 ton 2.2 ton and 3.5ton mini Excavator for you too choose!

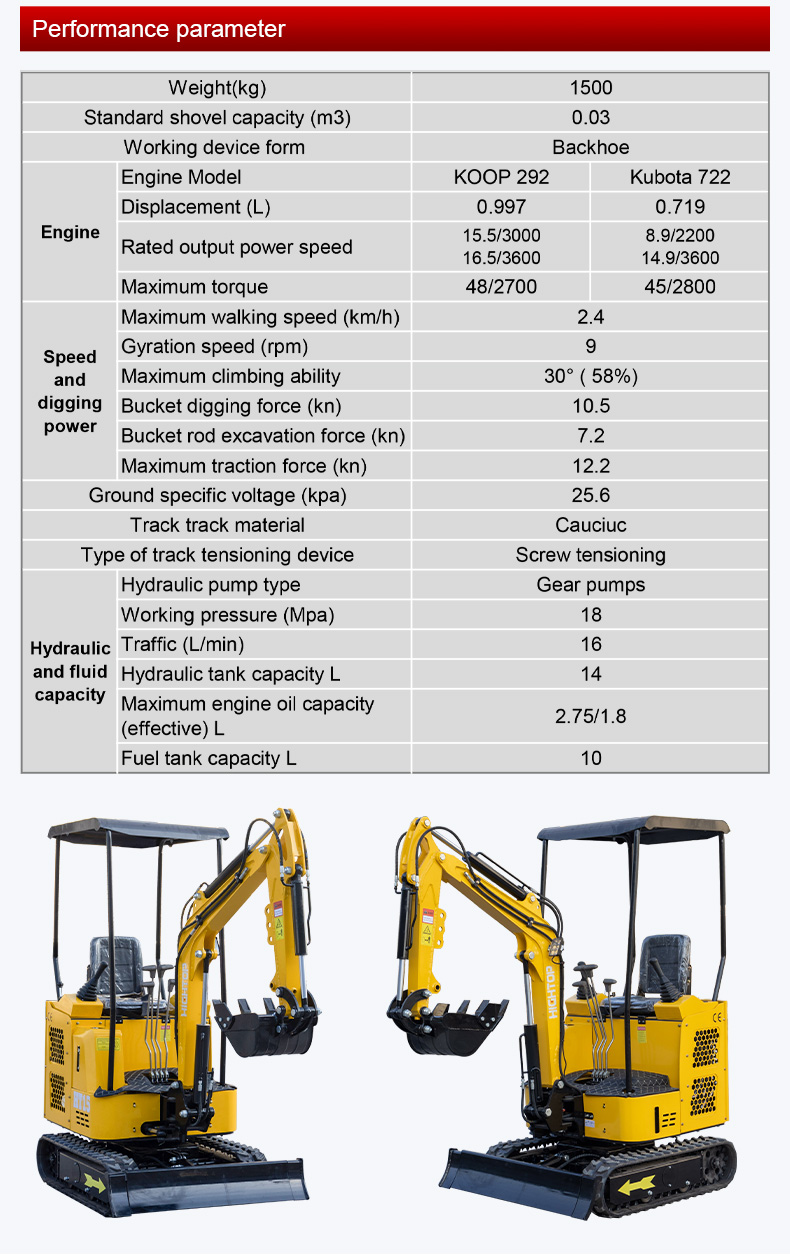

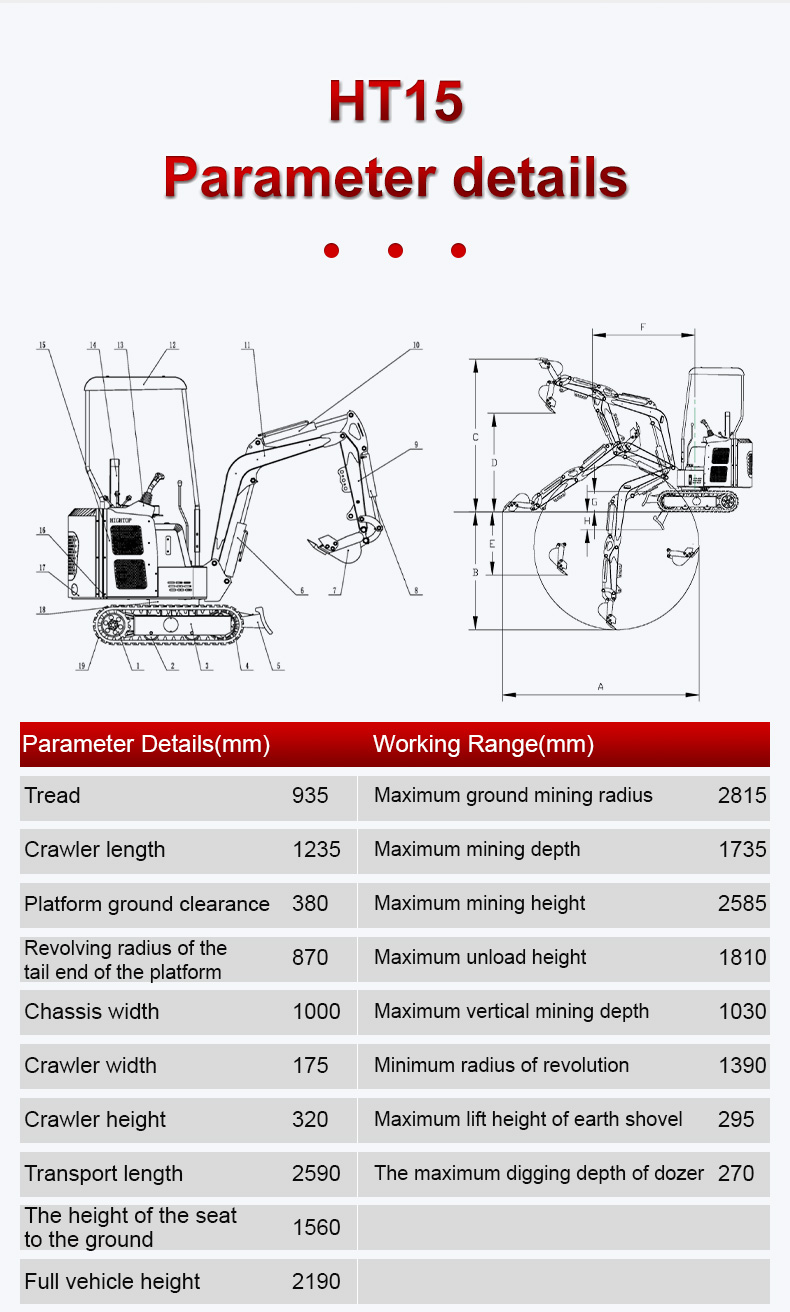

HT15 Mini Excavator Parpmeter

Model:HT15    Main Demensions





Operating Range
 Weight  1500kg  Overall dimension
( LxWxH)
 2550x940x1380   mm  Max. Digging depth   1650 mm
 Digging bucket capacity  0.025cbm/120kg  Wheelbase  770mm  Max. Vertical digging depth  1375 mm
 Bucket width  380mm  Total length of track   1090mm  Max. Digging height  2610 mm
 Engine  CHANGCHAI (EV80)  Platform ground clearance  380 mm  Max. Dumping height  1850 mm
 Bore stroke  double cylinder,
 water cool
 Platform back turning radius  733 mm  Max. Digging radius on ground  2850 mm
 Rated power  12 kw/3600r/min  Chassis width   940 mm  Min. Rotation radius  1330 mm
 Displacement   0.794 L  Track width   180 mm  Max. Upgrade height of bulldozer blade  345 mm
 Travel speed   3.5km/h  Chassis ground clearance  380 mm  Max. Digging depth of bulldozer blade  255 mm



 Track height   320 mm

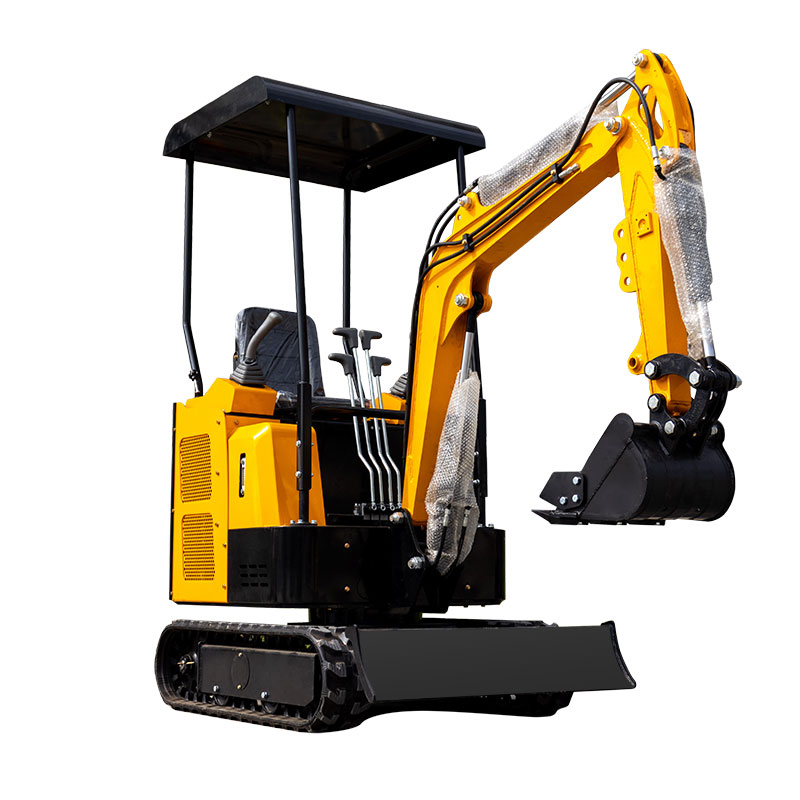

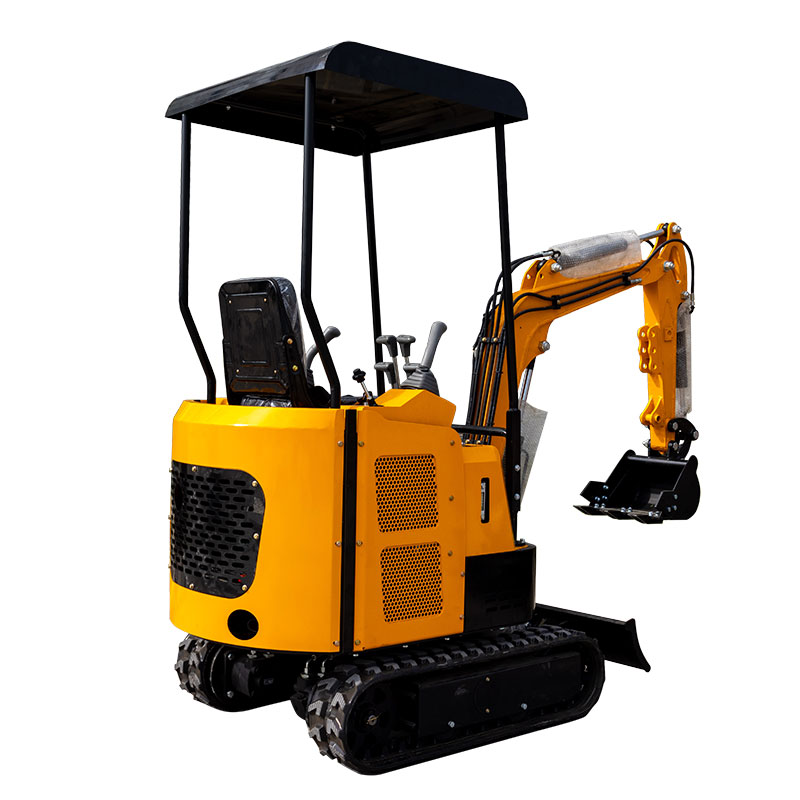

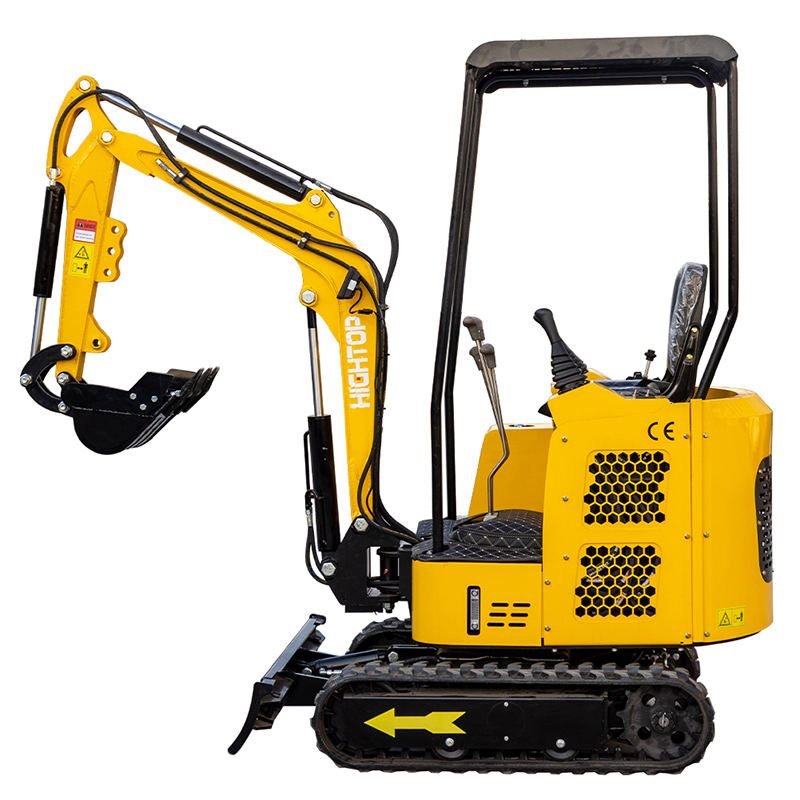

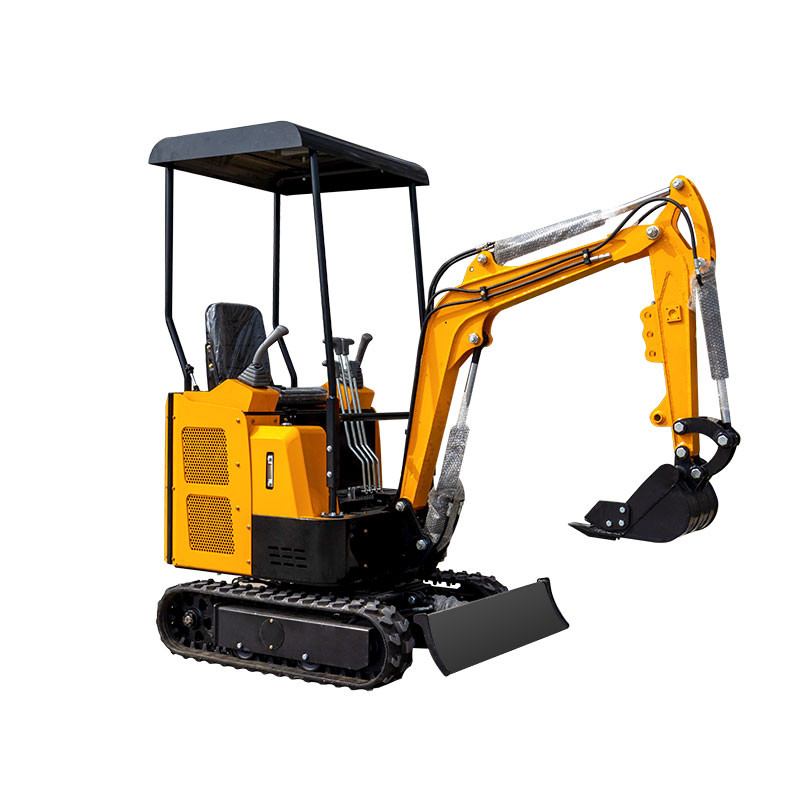

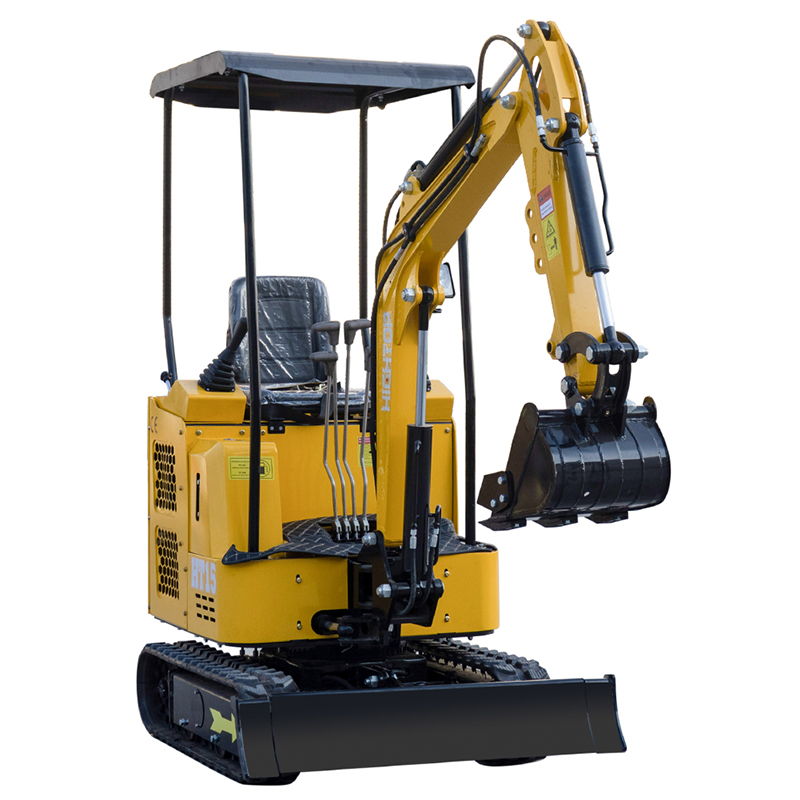

HT15 Mini Excavator Images
