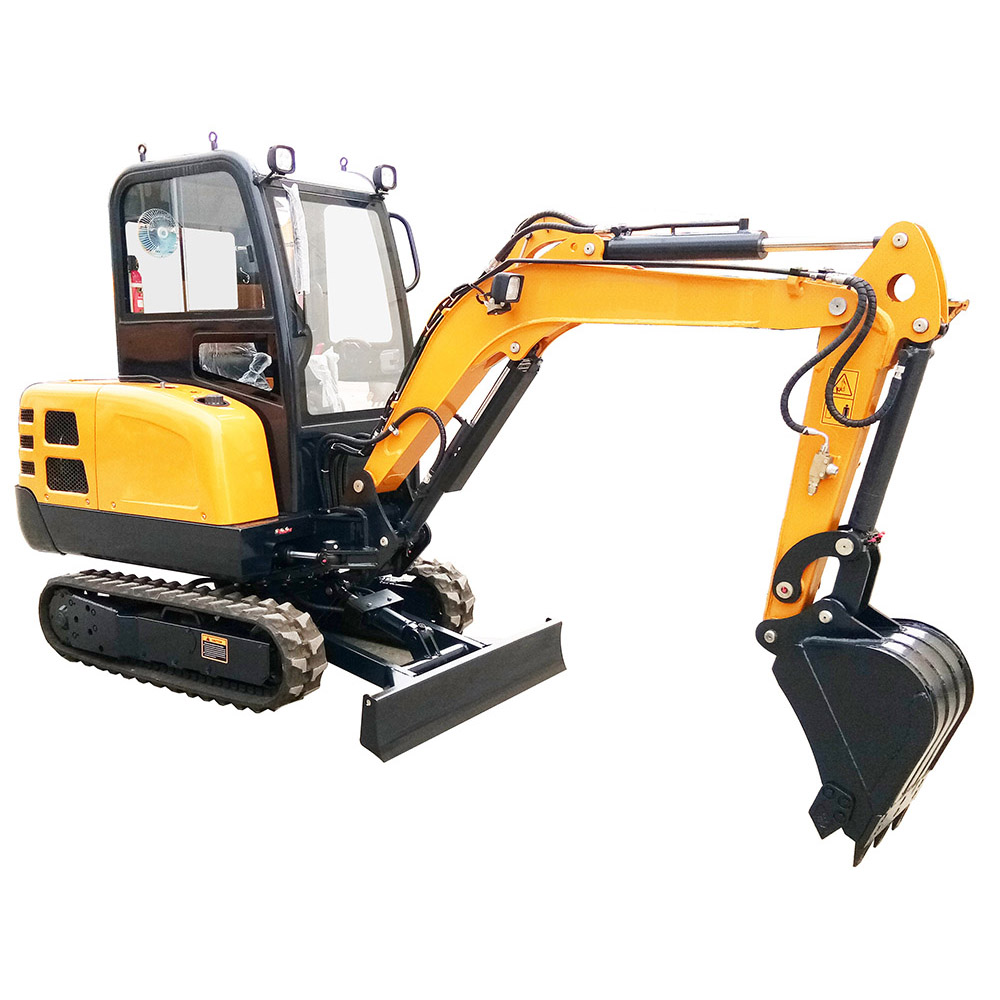

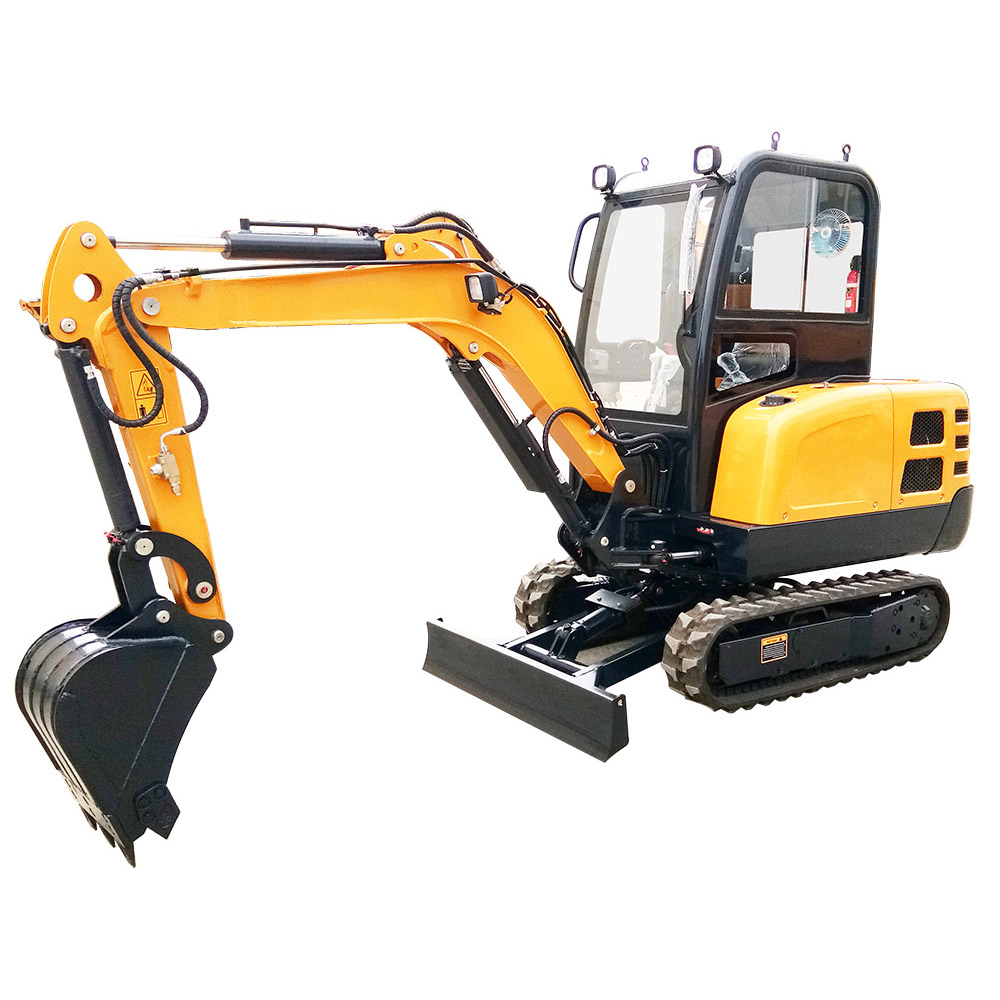

3T Small Excavator High fuel efficiency,Super power
*High fuel efficiency,Super power
*Lower fuel Consumption,High configuration, Superior performance
*Saving energy and protecting environment
|
Machine Size |
|
|
Overall dimension (L*W*H) |
4170mm*1300mm*2280mm |
|
Axle base(Track length on ground) |
1230mm |
|
Track gauge |
1070mm |
|
Min.Ground clearance |
230mm |
|
Swing radius at tail |
1180mm |
|
Track System |
|
|
Maximum Travel speed |
3.5km/h |
|
Width of track shoe |
230mm |
|
Number of track shoe per side |
38pcs |
|
Number of upper roller per side |
0 |
|
Number of bottom roller per side |
4 |
|
Engine |
|
|
Emission Standard |
Euro5/ EPA |
|
Engine Model |
Kubota Engine |
|
Power/Rotation speed |
14.2kw(20HP)2000rpm |
|
Optional Engine |
China Laidong 22.1kw,2300rpm |
|
Number of cylinder |
3 |
|
Performance Parameter |
|
|
Standard bucket capacity |
0.1m³ |
|
Swing speed |
12rpm |
|
Max. Grade ability |
30° |
|
Max. Bucket digging force |
15.3KN |
|
Max. Arm digging force |
10.5KN |
|
Hydraulic system pressure |
18Mpa |
|
Machine weight |
3000kg |
|
Arm length |
1000mm |
|
Working Range |
|
|
Max. Digging height |
3700mm |
|
Max. Dumping height |
2290mm |
|
Max. Digging depth |
2450mm |
|
Max. Vertical digging depth |
2160mm |
|
Max. Digging radius |
4370mm |
|
Min .swing radius |
2020mm |
|
Max. Lifting height of blade |
240mm |
|
Max. Cutting depth of blade |
310mm |
|
Boom swing angle(Left) |
75° |
|
Boom swing angle(Right) |
45° |
|

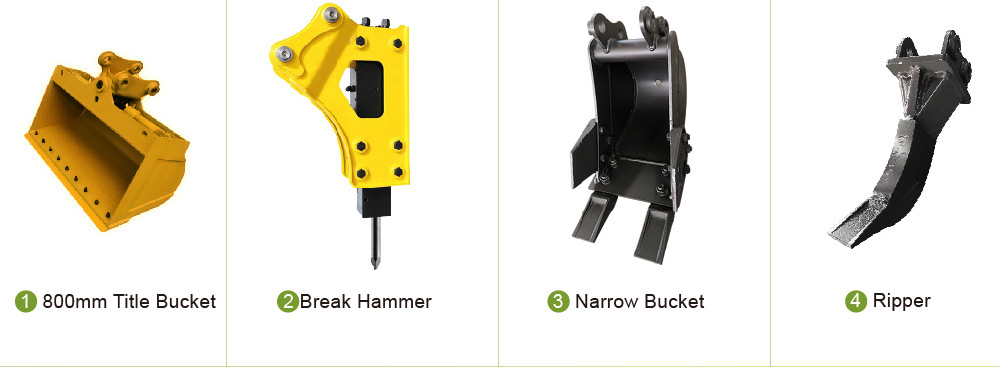

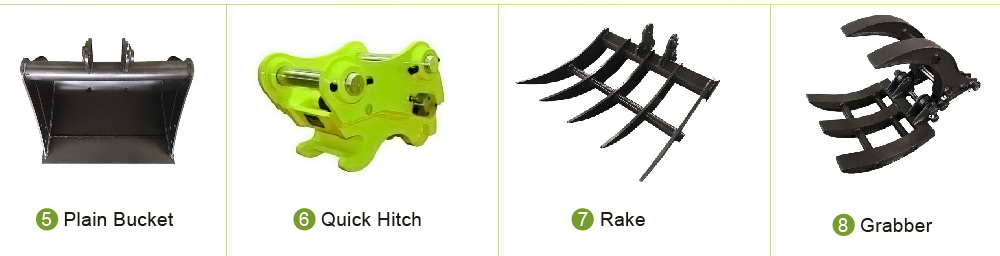

Accessories
One Machine, multi-usage.Quick and easy replacement of accessories
|
|
|
