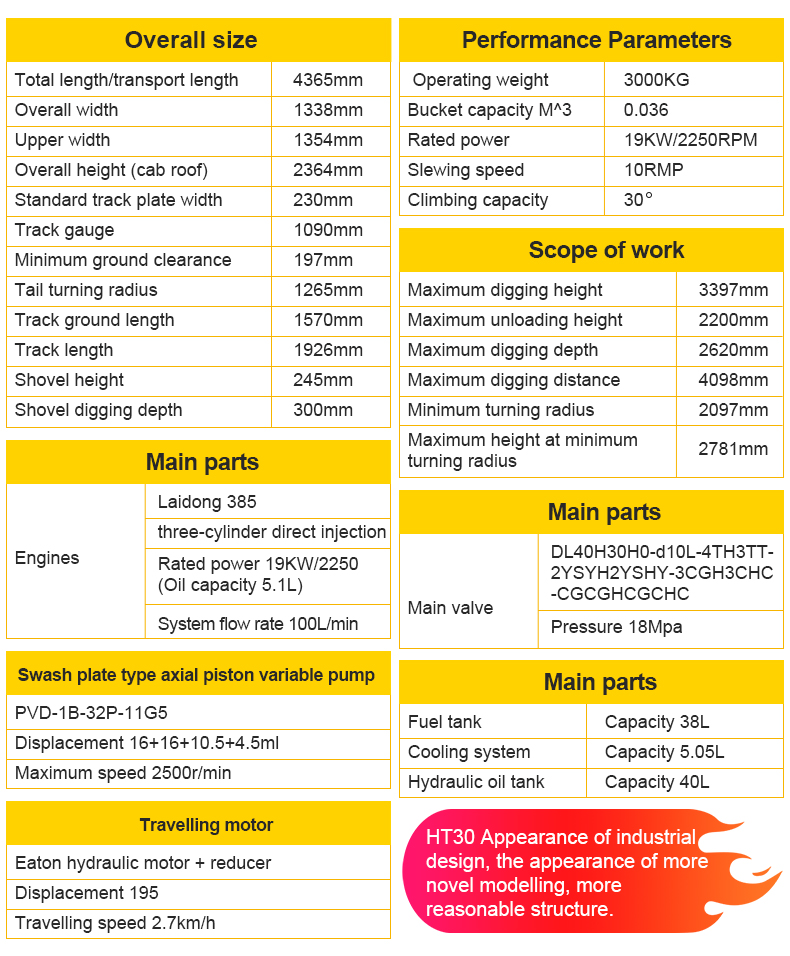

Overall size

Total length/transport length

4365mm

Overall width

1338mm

Upper width

1354mm

Overall height(cab roof)

2364mm

Standard track plate width

230mm

Track gauge

1090mm

Minimum ground clearance

197mm

Tail turning radius

1265mm

Track ground length

1570mm

Track length

1926mm

Shovel height

245mm

Shovel digging depth

300mm

Main parts

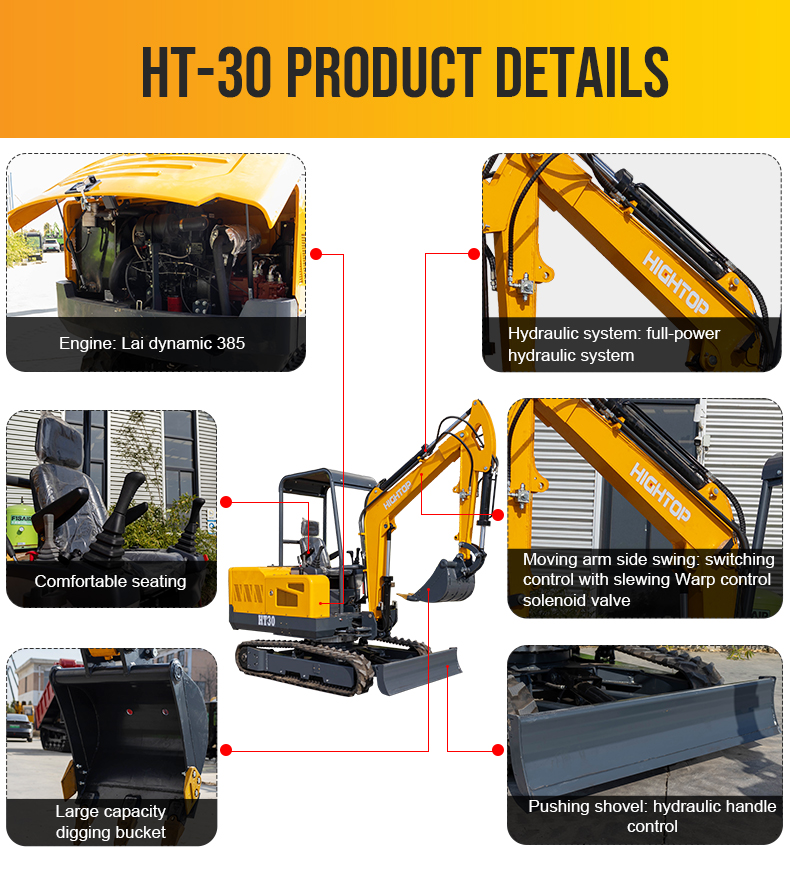

Engines

Laidong 385

three-cylinder direct injection

Rated power 19KW/2250(Oil capacity 5.1L)

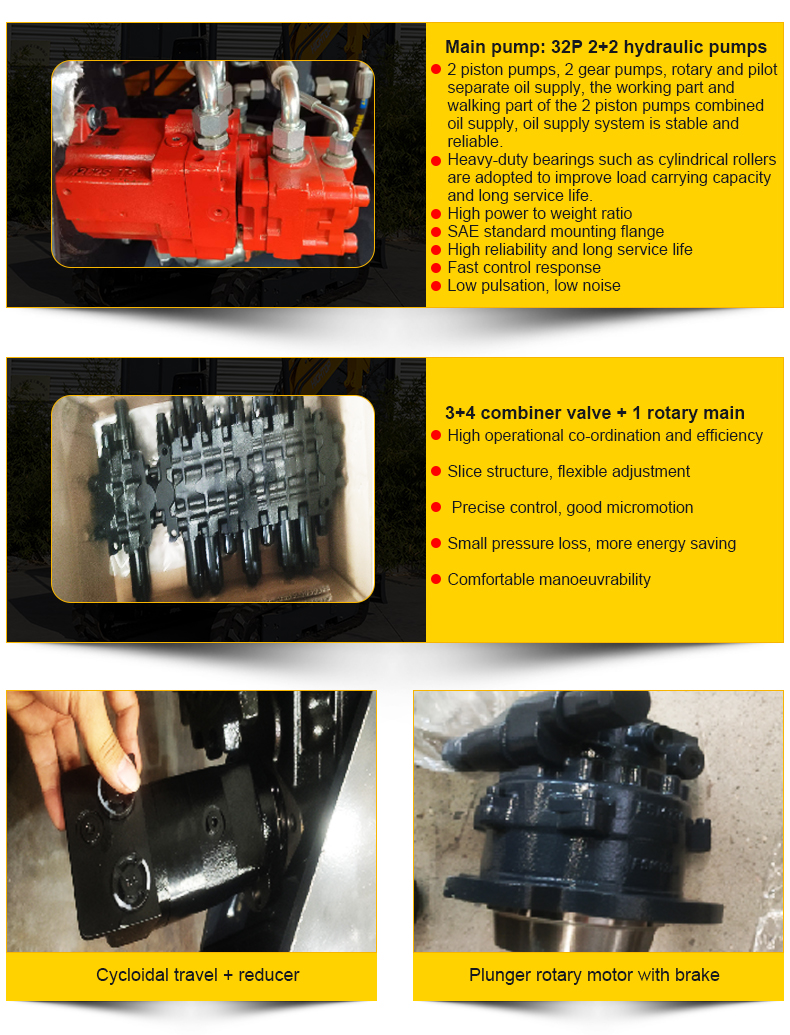

System flow rate 100L/min

Swash plate type axial piston variable pump

Travelling motor

PVD-1B-32P-11G5

Eaton hydraulic motor + reducer

Displacement 16+16+10.5+4.5ml

Displacement 195

Maximum speed 2500r/min

Travelling speed 2.7km/h

PVD-1B-32P-11G5

Performance Parameters

Operating weight

3000KG

Bucket capacity M^3

0.036

Rated power

19KW/2250RPM

Slewing speed

10RMP

Climbing capacity

30°

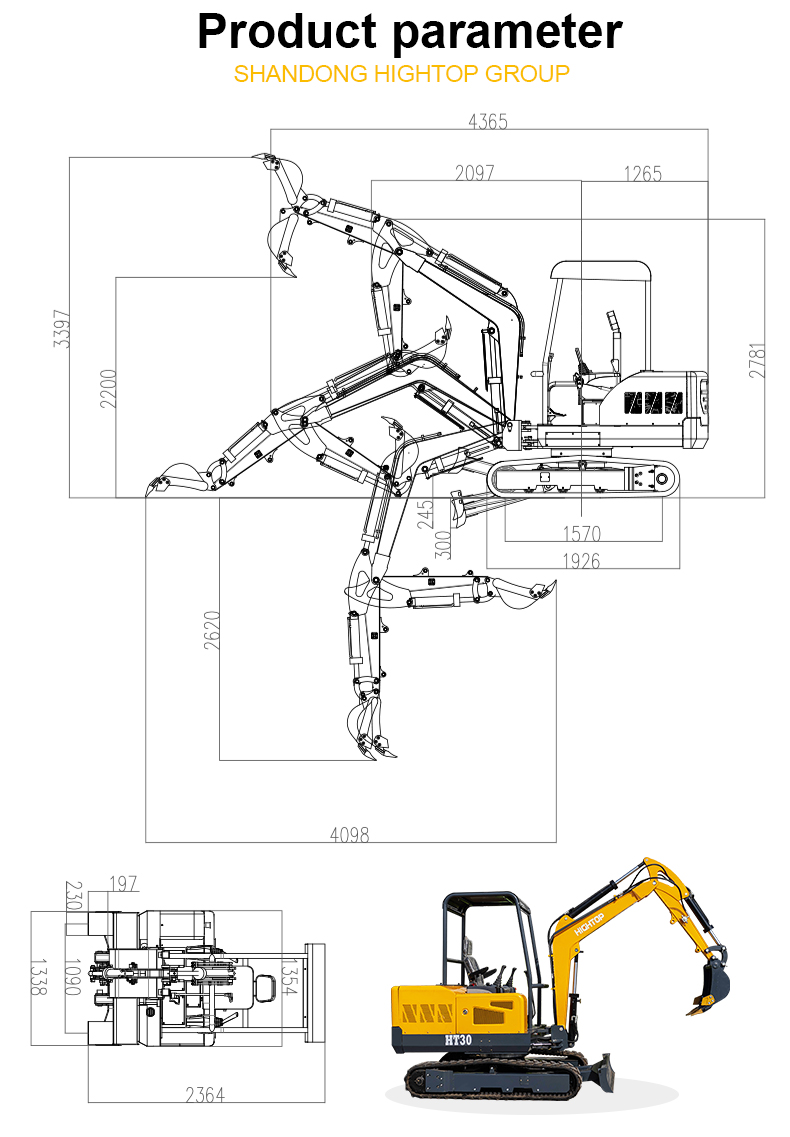

Scope of work

Maximum digging height

3397mm

Maximum unloading height

2200mm

Maximum digging depth

2620mm

Maximum digging distance

4098mm

Minimum turning radius

2097mm

Maximum height at minimumturning radius

2781mm

Main parts

Main valve

DL40H30H0-d10L-4TH3TT-2YSYH2YSHY-3CGH3CHCCGCGHCGCHC

Pressure 18Mpa

Main parts

Fuel tank

Capacity 38L

Cooling system

Capacity 5.05L

Hydraulic oil tank

Capacity 40L
