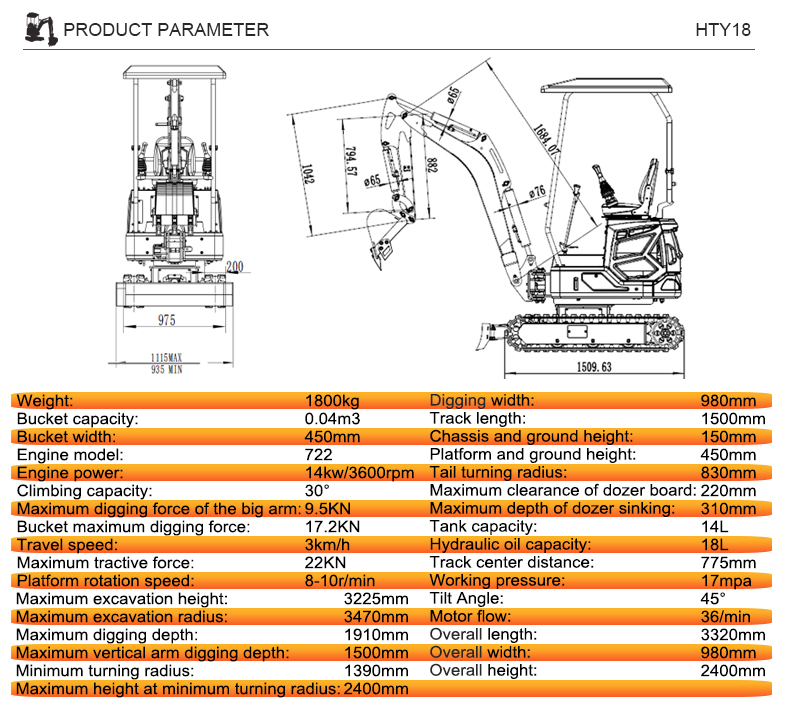

HT-Y18 Mini Excavator Parameter

Basic Parameters

Machine weight: 1800kg

Bucket capacity: 0.04m³

Bucket width: 450mm

Performance Parameters

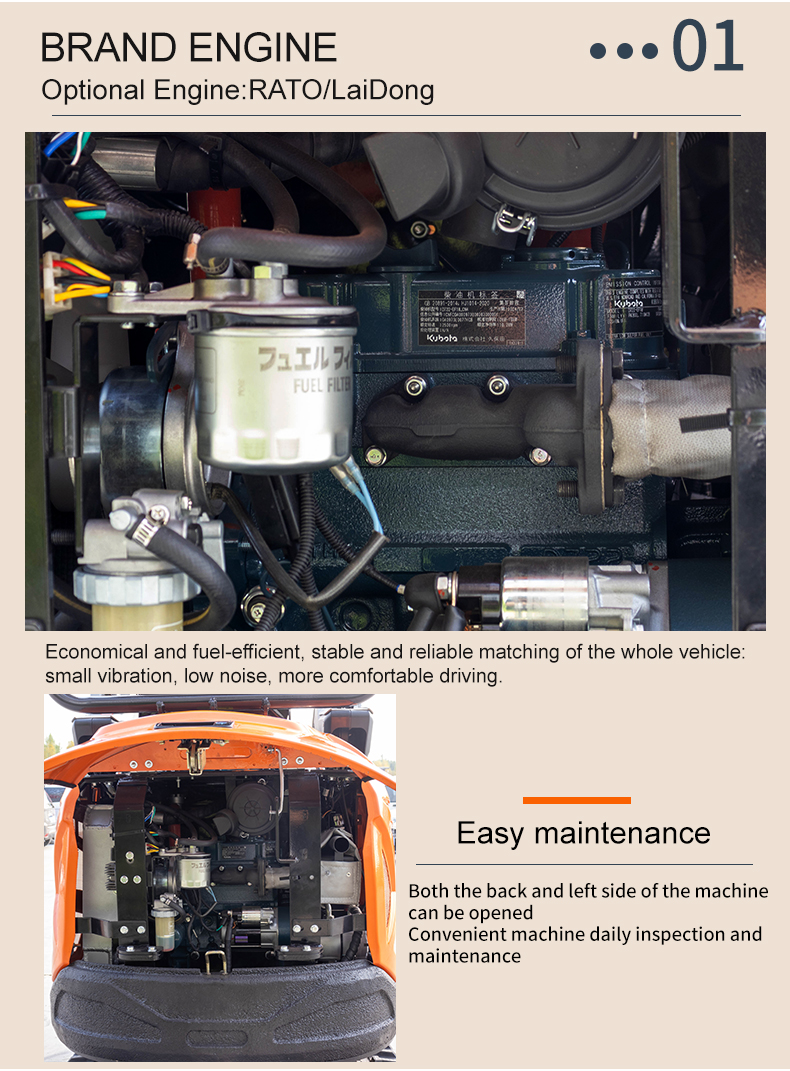

Engine Model: Kubota 722

Engine power: 14kw/3600rpm

Climbing ability: 30°

Maximum digging force of boom: 9.5KN

Bucket maximum digging force: 17.2KN

Traveling speed: 3km/h

Maximum traction force: 22KN

Platform rotary speed: 8-10 r/min

Working Parameter

Maximum digging height: 3225mm

Maximum digging radius: 3470mm

Maximum digging depth: 1910mm

Max. digging depth of vertical arm: 1500mm

Minimum turning radius: 1390mm

Maximum height at minimum turning radius: 2400mm

Transportation Dimension

Overall length: 3320mm

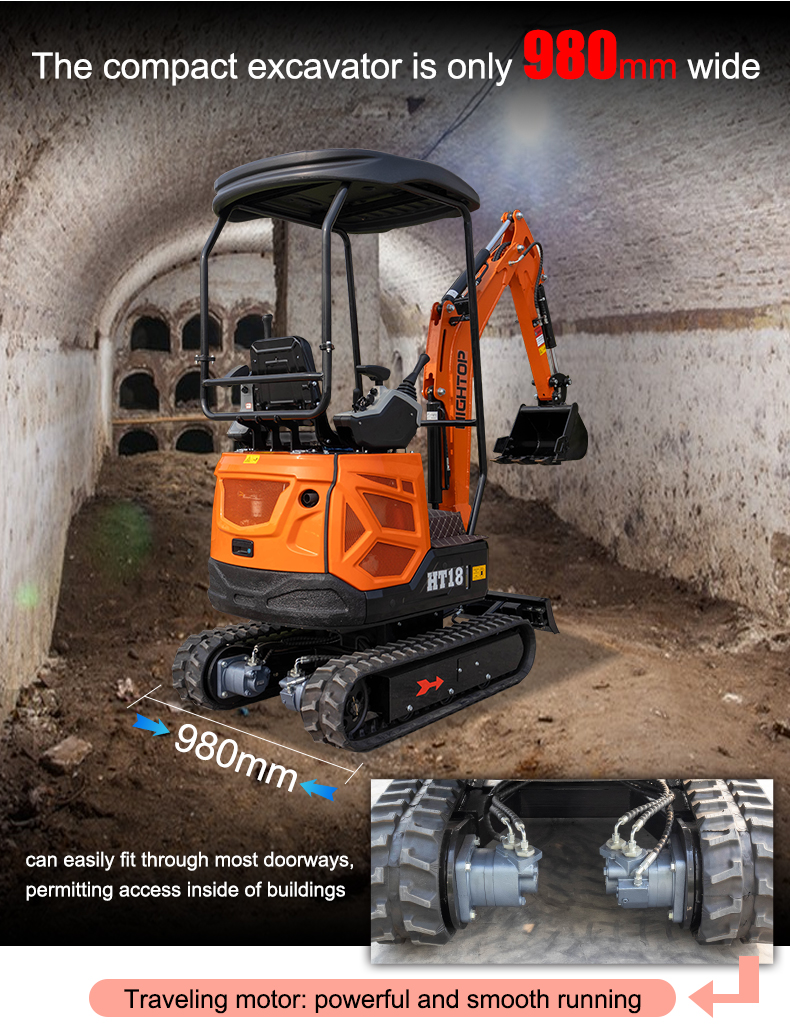

Total width: 980mm

Total height: 2400mm

Others

Chassis width: 980mm

Length of track: 1500mm

Height between chassis and ground: 150mm

Height between platform and ground: 450mm

Tail turning radius: 830mm

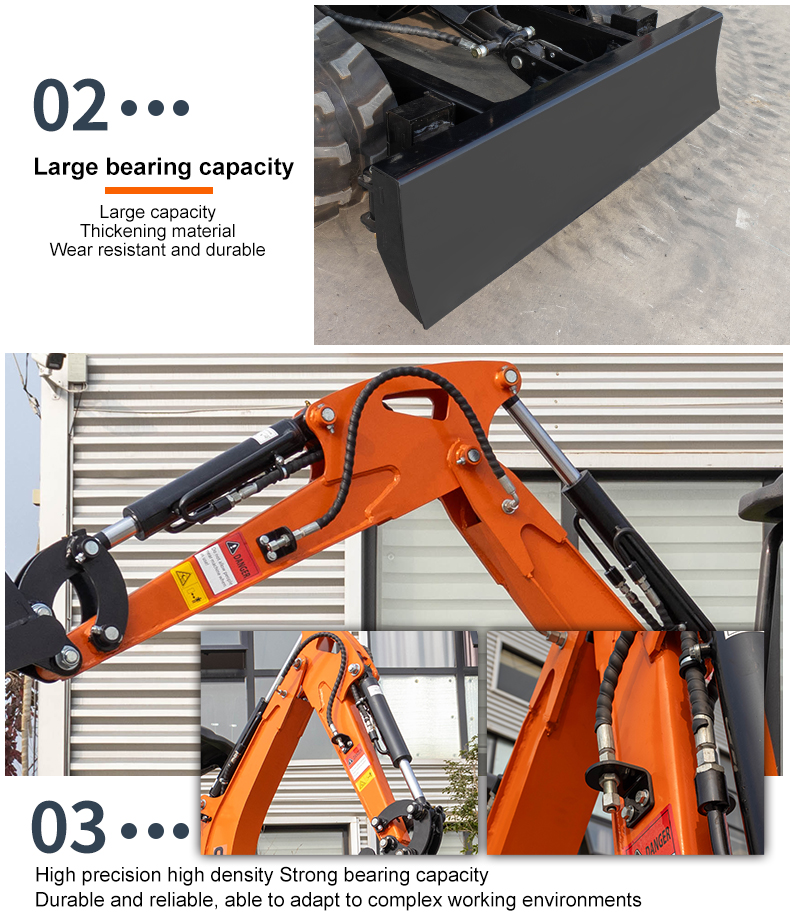

Maximum ground clearance for lifting up the bulldozer: 220mm

Maximum Depth of Sinking of Bulldozer: 310mm

Water tank capacity: 14L

Hydraulic oil capacity: 18L

Rail center distance: 775mm

Working pressure: 17mpa

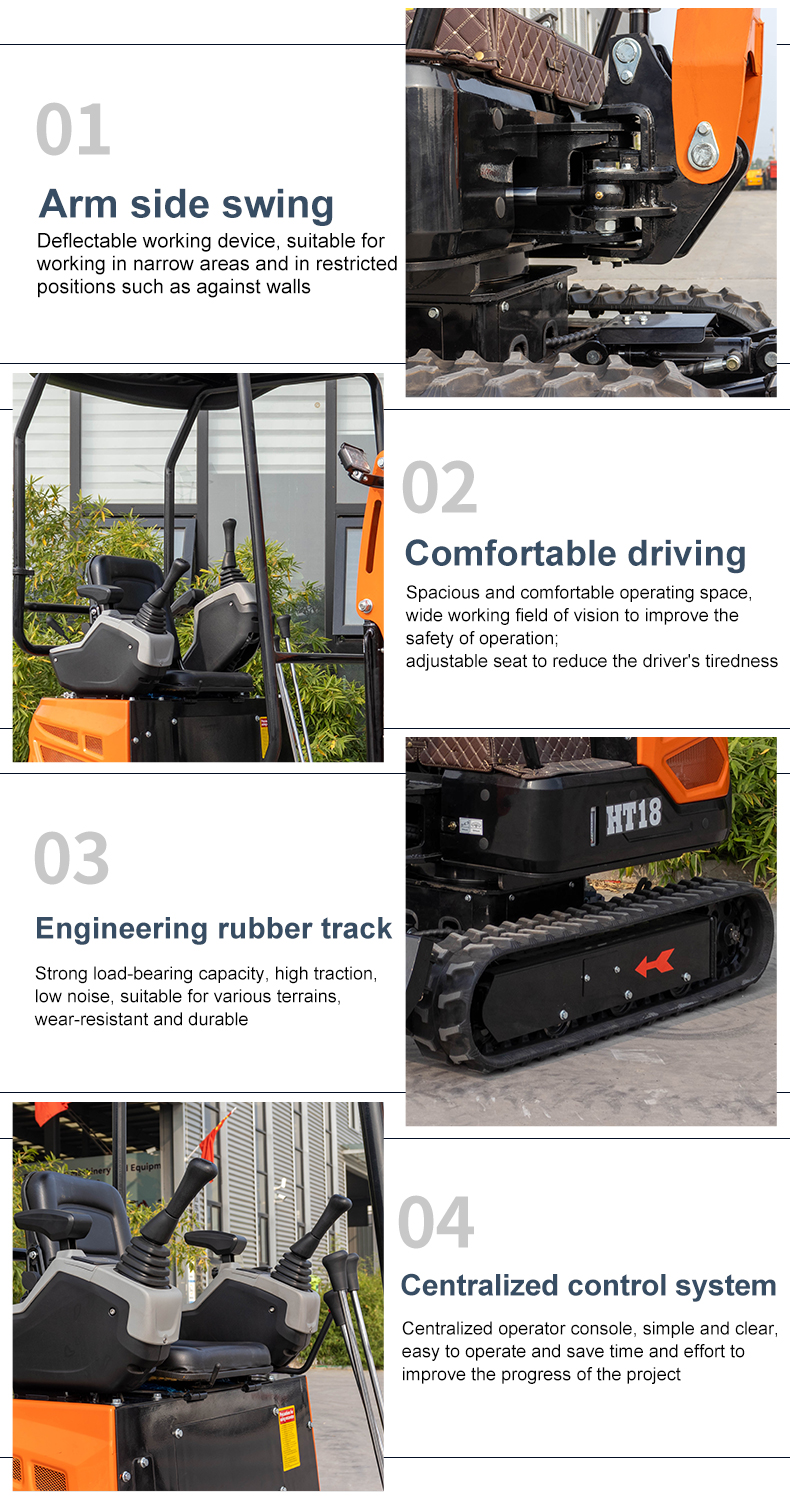

Swing angle: 45 ° left and right

Motor flow: 36L/min

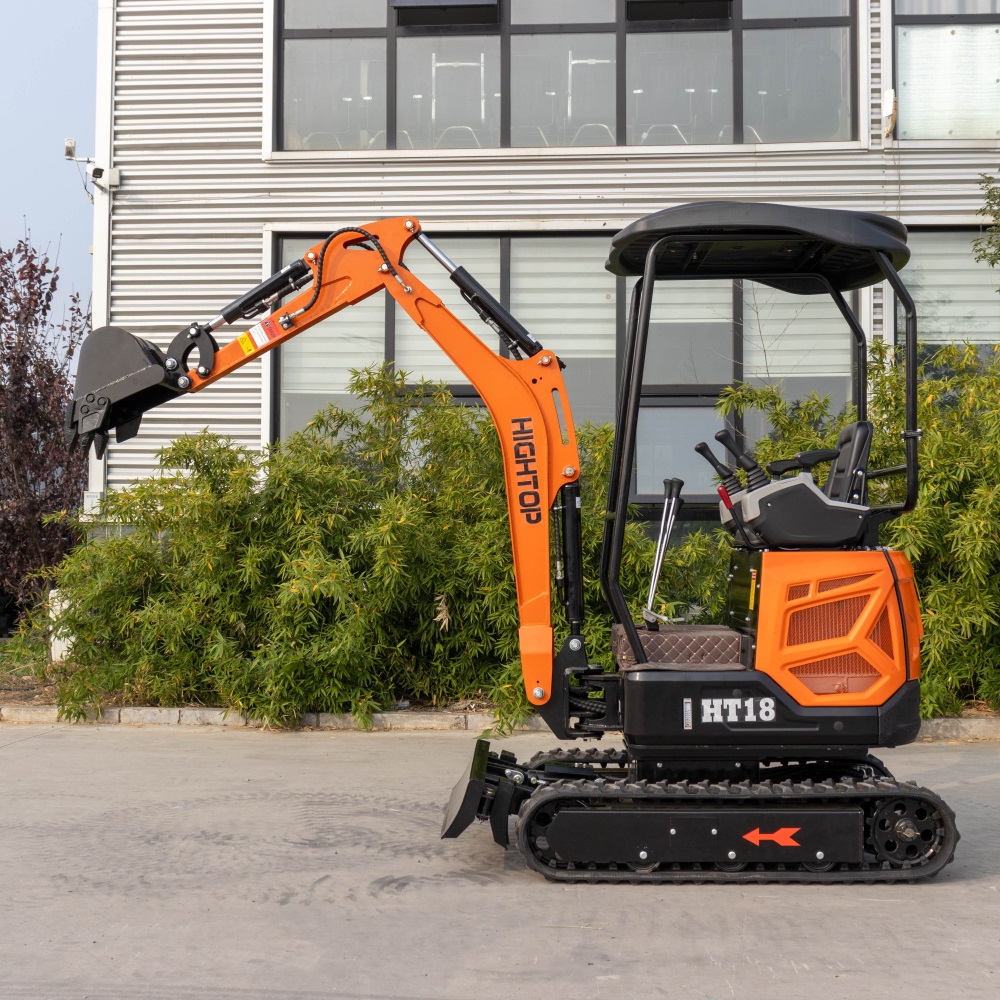

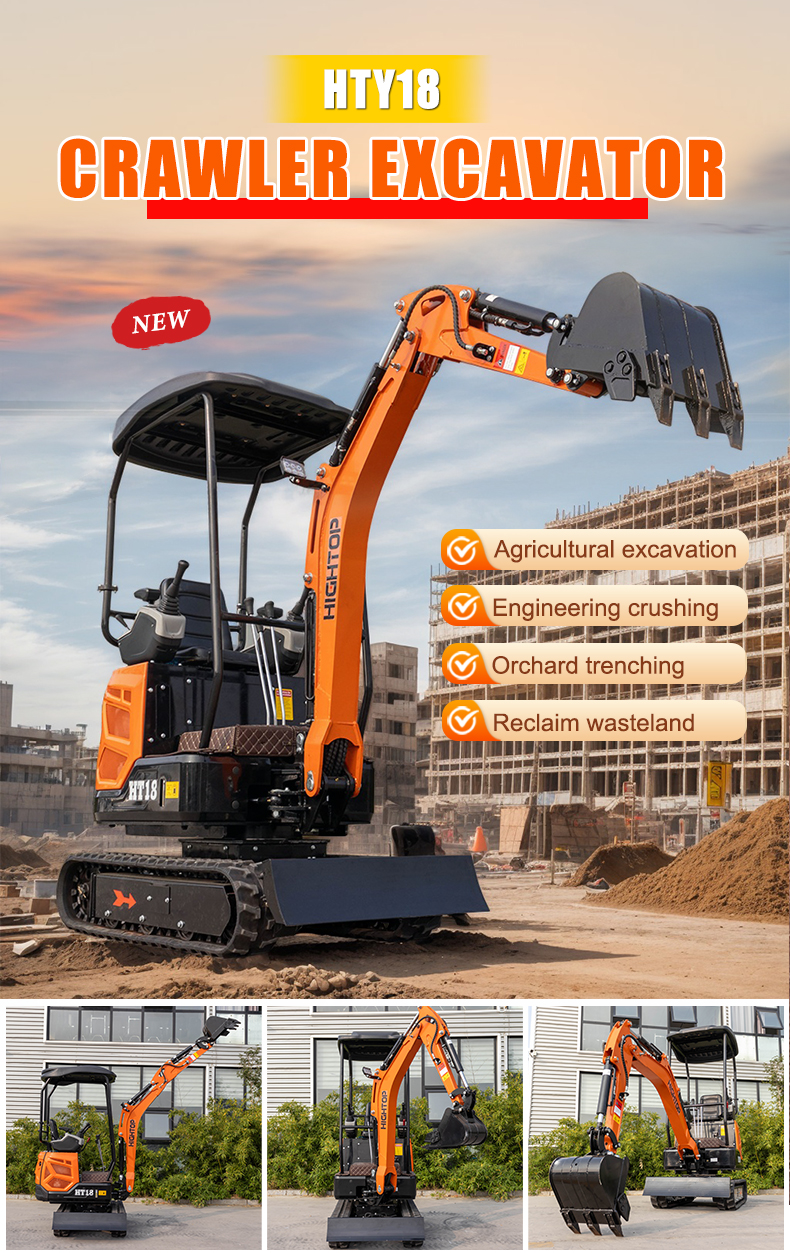

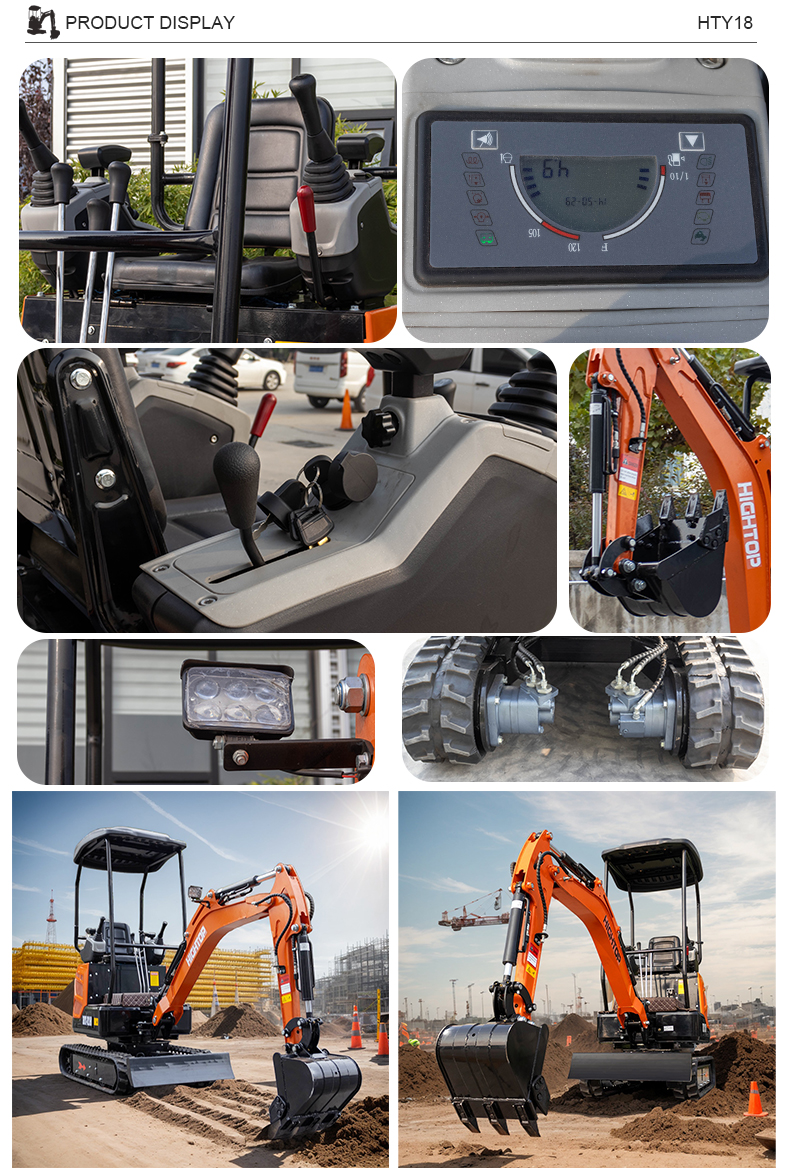

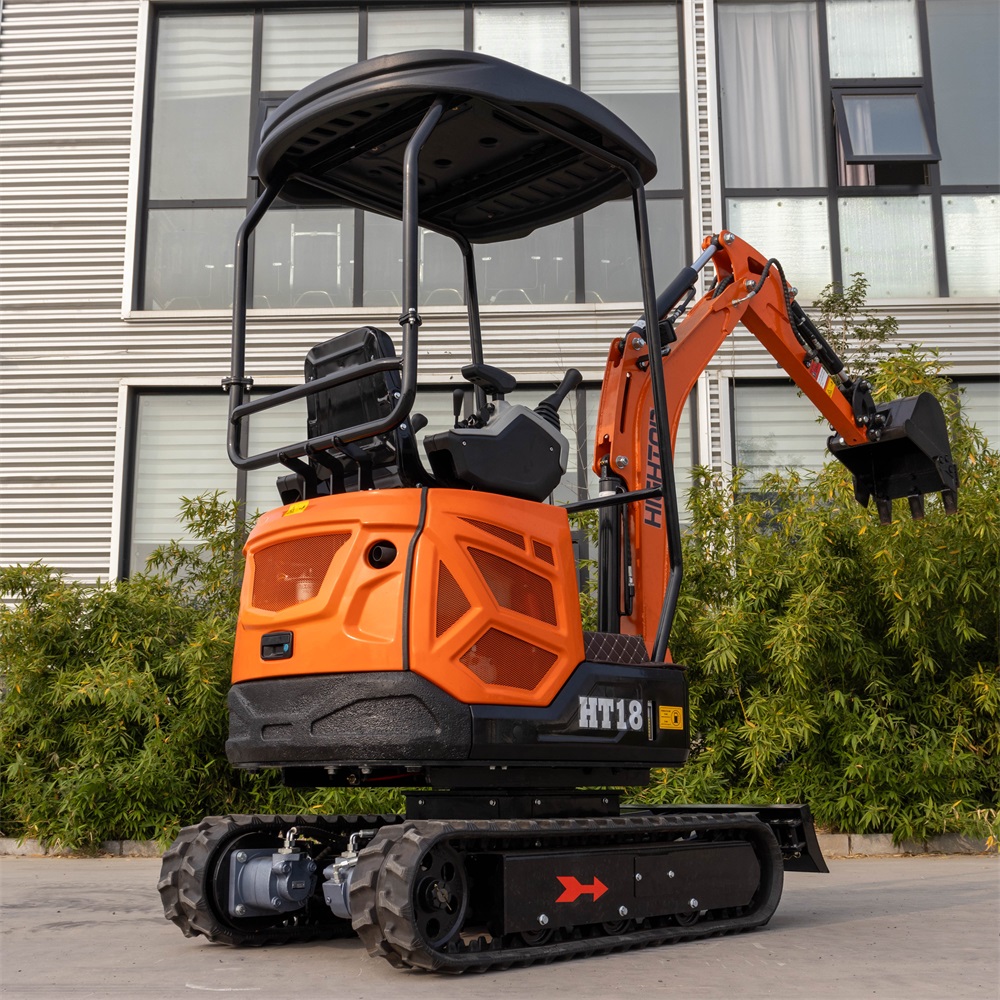

HT-Y18 Mini Excavator Images
