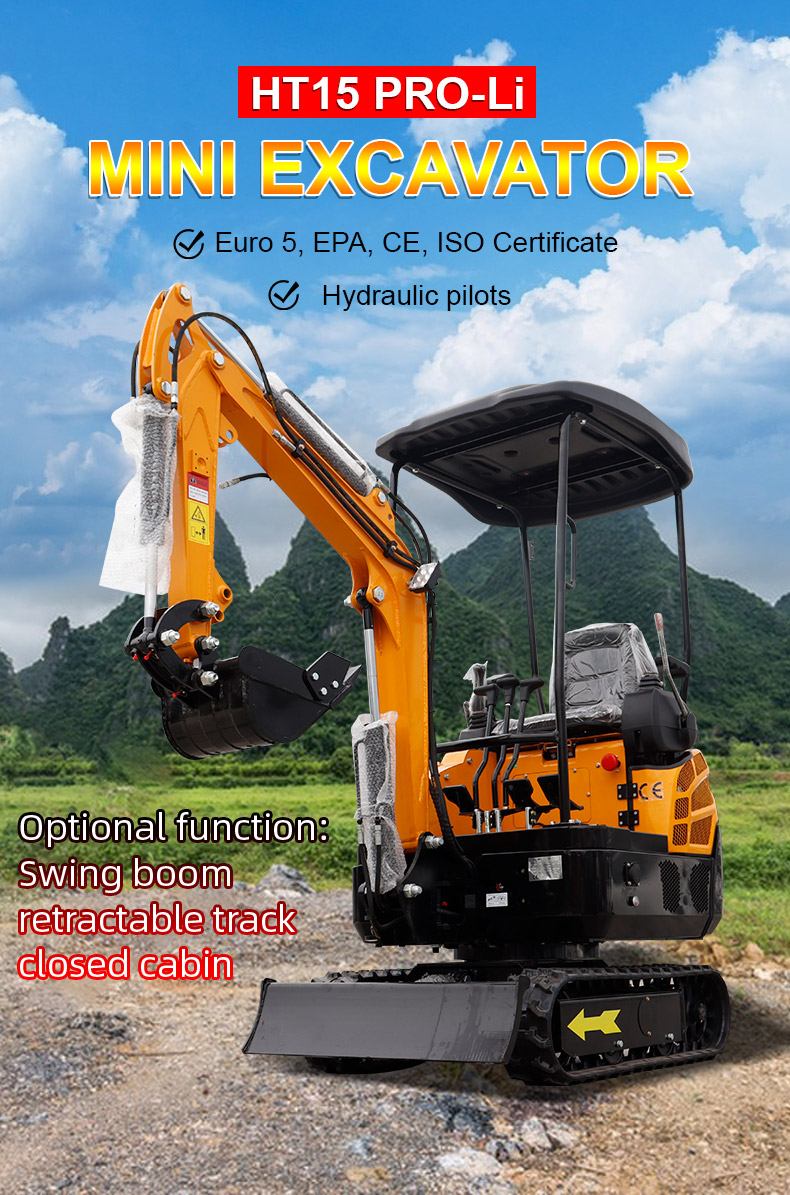

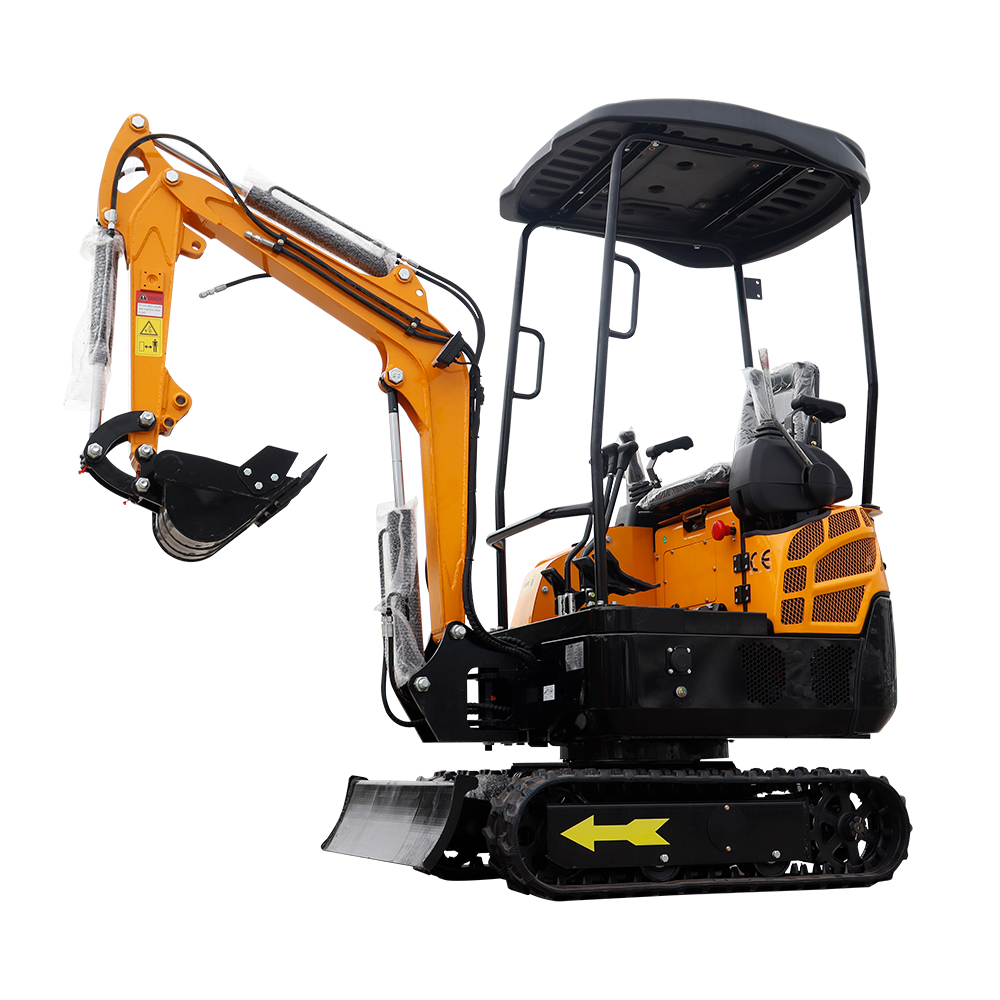

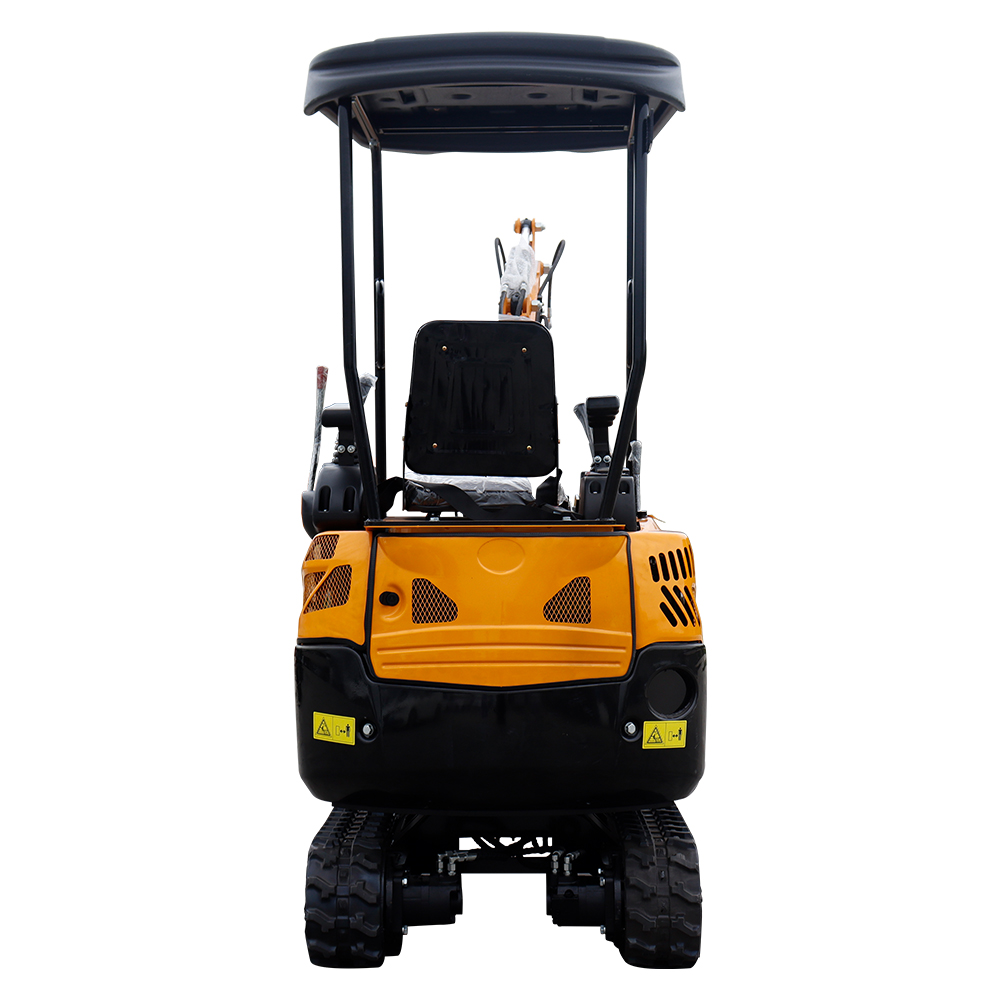

HT15 Pro Li Mini Excavator

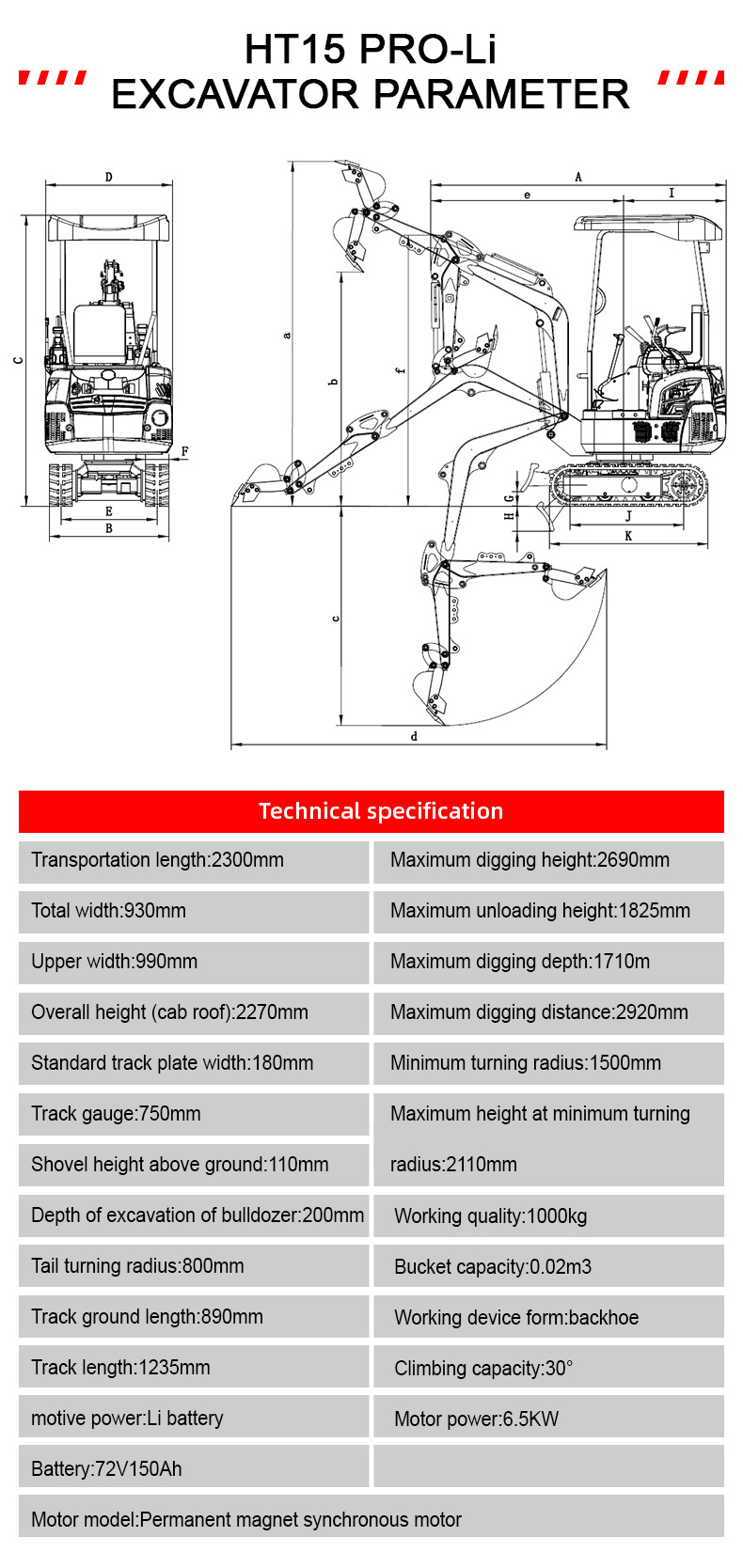

| Transportation length:2300mm | Maximum digging height:2690mm |
| Total width:930mm | Maximum unloading height:1825mm |
| Upper width:990mm | Maximum digging depth:1710m |
| Overall height (cab roof):2270mm | Maximum digging distance:2920mm |
| Standard track plate width:180mm | Minimum turning radius:1500mm |
| Track gauge:750mm | Maximum height at minimum turning |
| Shovel height above ground:110mm | radius:2110mm |
| Depth of excavation of bulldozer:200mm | Working quality:1000kg |
| Tail turning radius:800mm | Bucket capacity:0.02m3 |
| Track ground length:890mm | Working device form:backhoe |
| Track length:1235mm | Climbing capacity:30° |

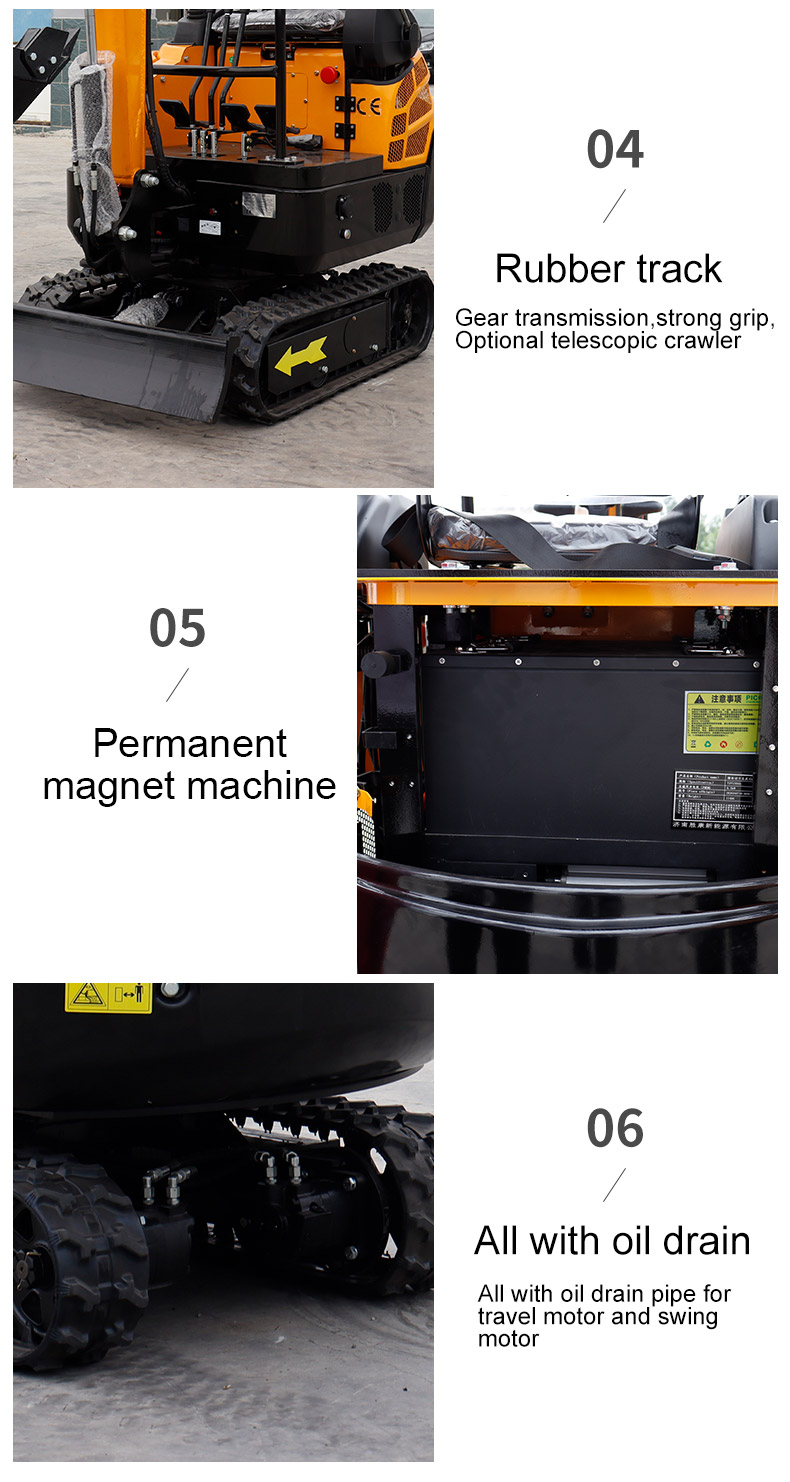

| motive power:Li battery | Motor power:6.5KW |
| Battery:72V150Ah | Motor model:Permanent magnet synchronous motor |
