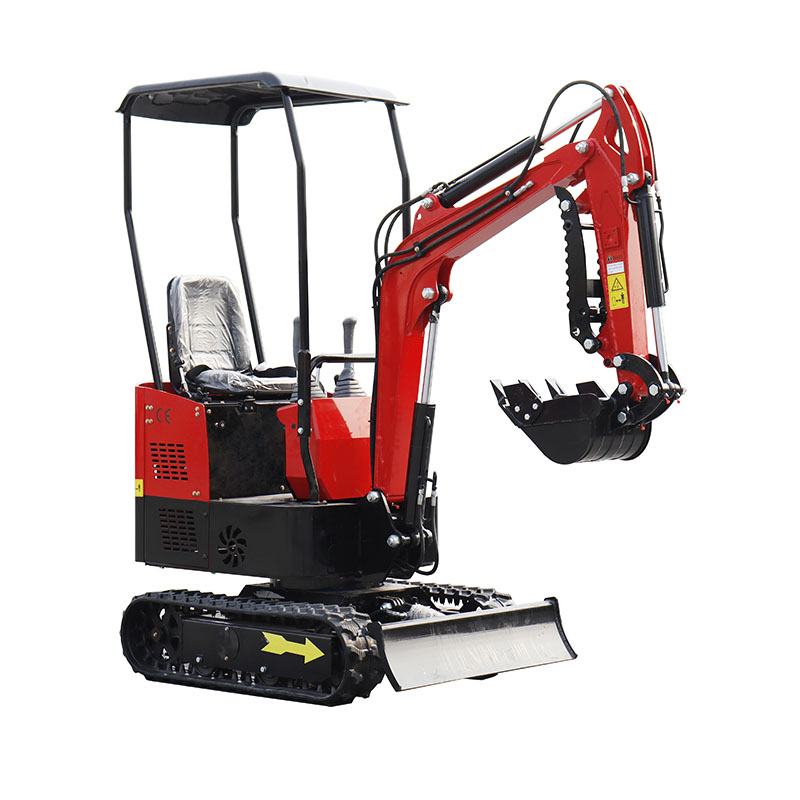

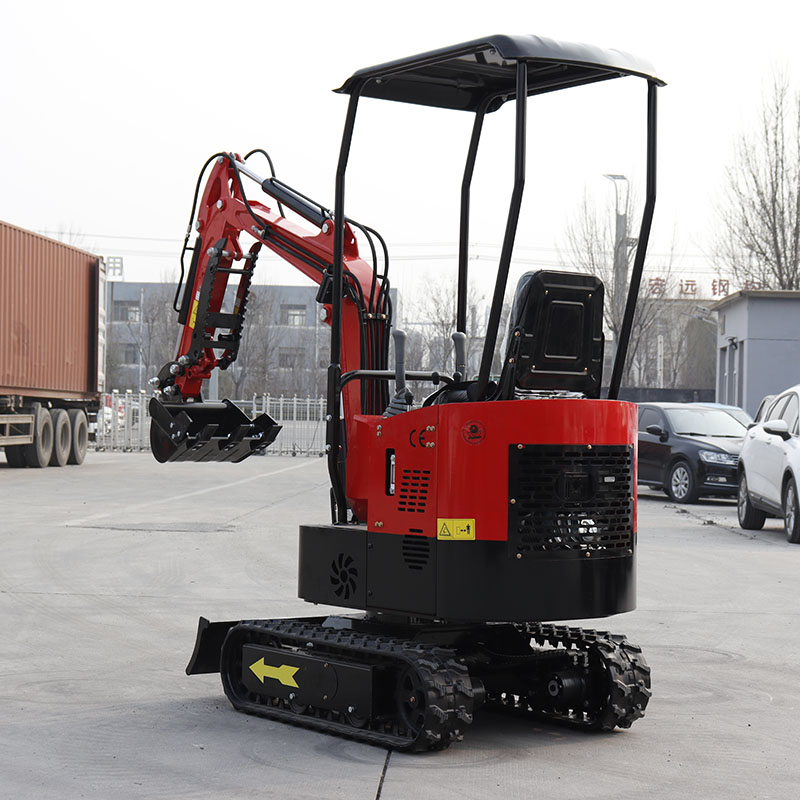

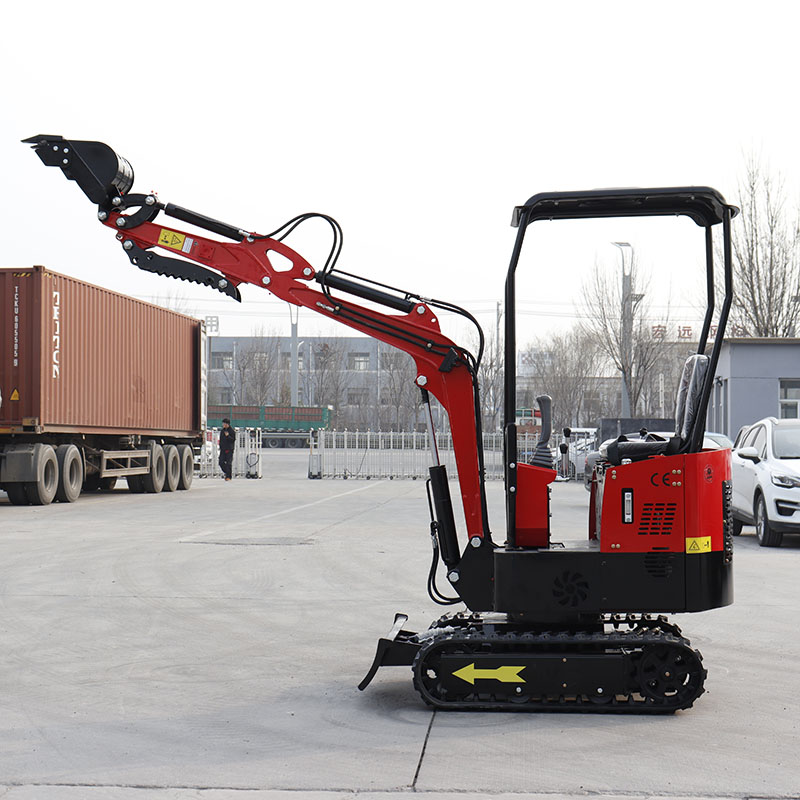

Model:HT-10H

Weight

1000kg

Platform ground clearance

380 mm

Digging bucket capacity

0.025cbm/120kg

Platform back turning radius

784 mm

Bucket width

380mm

Chassis width

896 mm

Engine

KOOP 192F

Track width

180 mm

Optional Engine

Rato,Yoop,Koop,Changchai

Chassis ground clearance

320 mm

Briggs & Stratton

Track height

132 mm

Bore stroke

Single cylinder, fan cool

Max. Digging depth

1750 mm

Rated power

7kw/3000r/min

Max. Vertical digging depth

1550 mm

Displacement

6.8ml/r

Max. Digging height

2610 mm

Travel speed

1.5km/h

Max. Dumping height

1850 mm

Overll dimension( LxWxH)

2900 x 930 x 2180 mm

Max. Digging radius on ground

3050 mm

Wheelbase

910 mm

Min. Rotation radius

1330 mm

Total length of track

1230mm

Max. Upgrade height of bulldozer blade

345 mm

Platform ground clearance

380 mm

Max. Digging depth of bulldozer blade

255 mm
