HT18-1 Mini Excavator

HT18-1 Mini Excavator

HT18-1 Mini Excavator Description

HT18-1 Mini Hydraulic Excavator Description:

High working efficiency: The radius of rotation is small. In the case of limited working space, the operator does not need to consider obstacles on the construction site to hinder the rotation of the excavator, so that the operator can focus on the operation of the bucket, which greatly improves the work effectiveness.

HT18-1 Mini Hydraulic Excavator Features:

1. The standard configuration of this excavator includes the boom side swing function.Deflection angle (Left/Right):35°

2. This machine This machine is equipped with a plunger motor with high and low speed functions. Low speed can provide more powerful power when the excavator is climbing, high speed is suitable for normal driving.

HT18-1 Mini Excavator Parameter

Model:HT18-1
Engine	Kubota Engine D722,Koop Engine 292	Min.ground clearance	119mm
Mainvalve	BEIFANG	Tail turning radius	790mm
Working weight(kg)	1800kg	Track ground length	1050mm
Bucket capacity	0.03m3	Track length	1545mm
Power	10.2kw/14kw	Max digging height	2580mm
Swing speed	12RMP	Max.unloading height	1637mm
Gradeability	30	Max.digging depth	2060mm
Overall legnth	4325/1655mm	Max.digging distance	3160mm
Overall width	1100mm	Min.turning radiuse	1711mm
Upper width	990mm	Max.height at minimum turning radius	2048mm
Overall height	2272mm
Standard track shoe width	180mm	Boom swing Angle(left)°	75
Track Gauge	920mm	Boom swing Angle(right)°	45

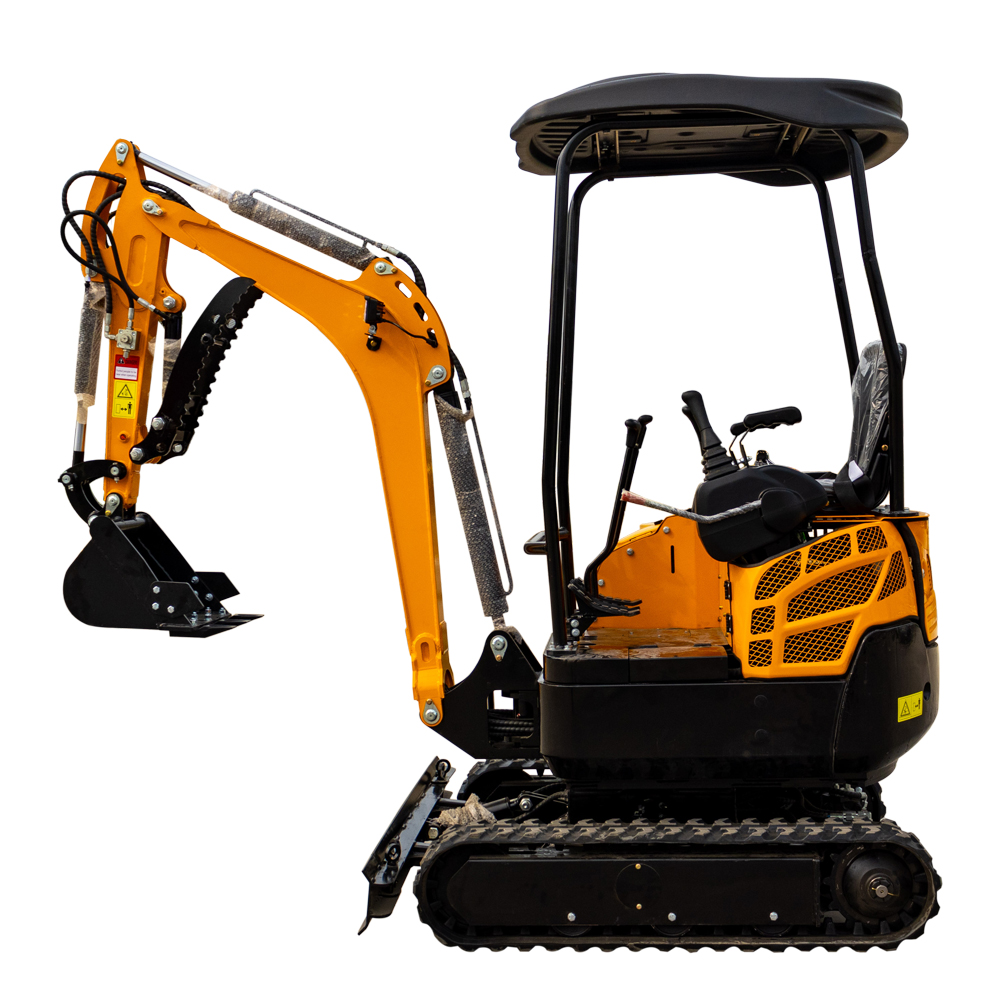

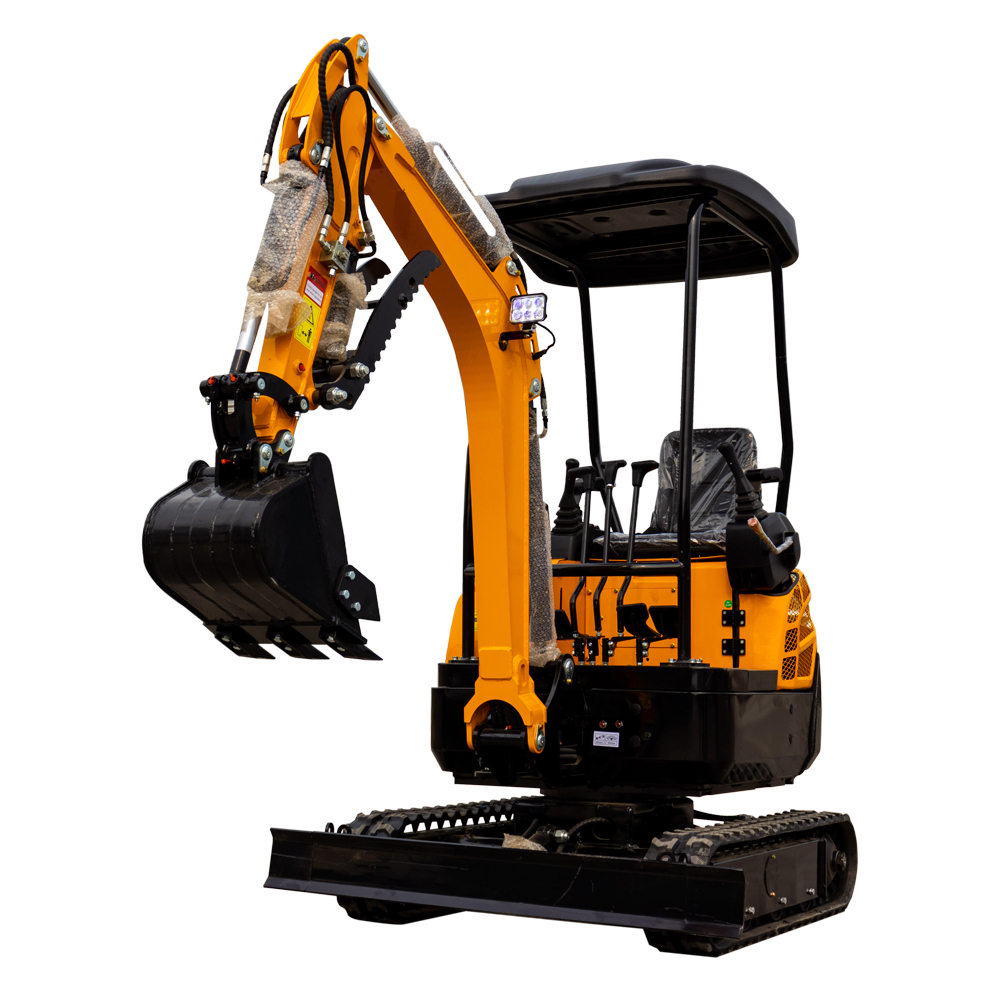

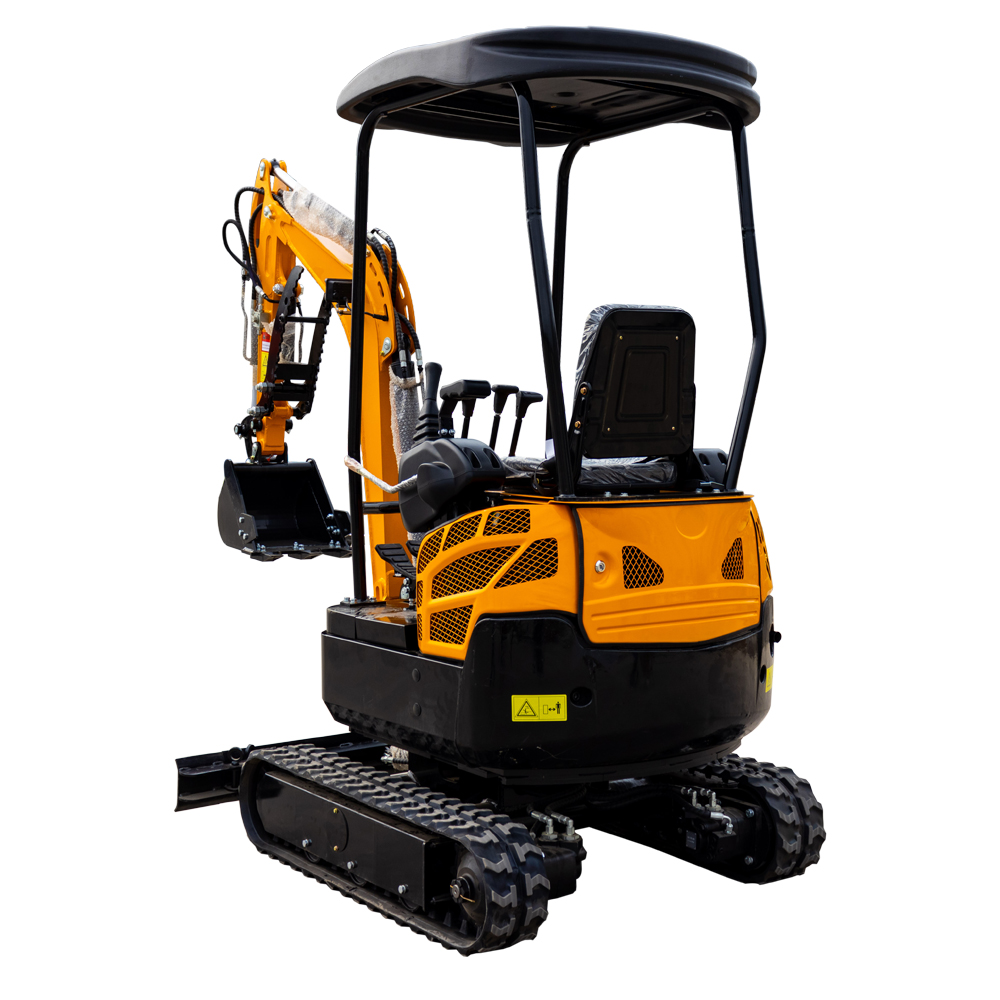

HT18-1 Mini Excavator Images

The above parameters are subject to change without notice! To get the latest information, or have product customization needs, please contact customer service staff: Ask a question and get a quote
