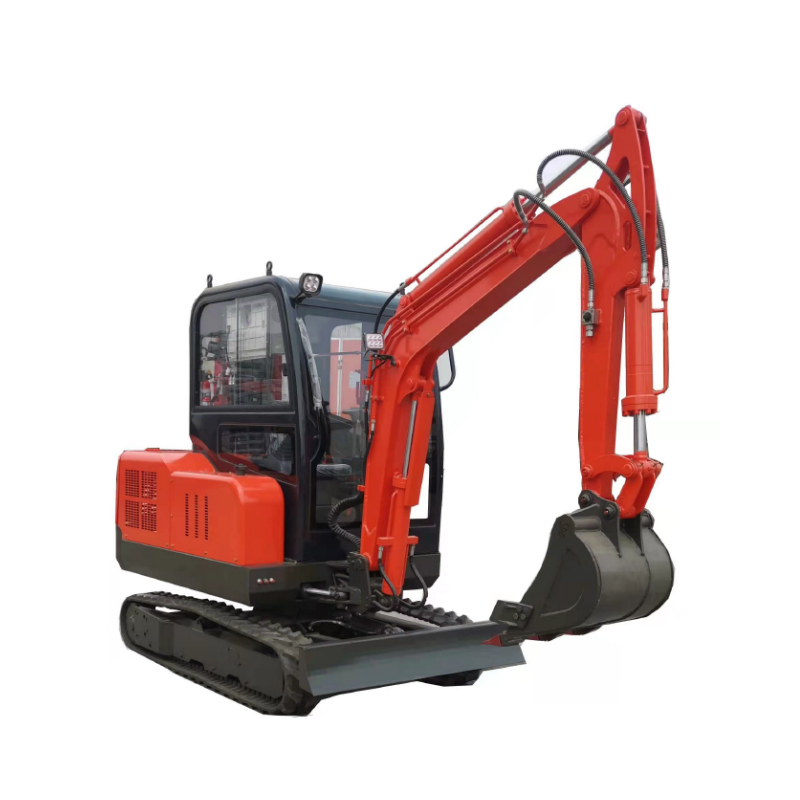

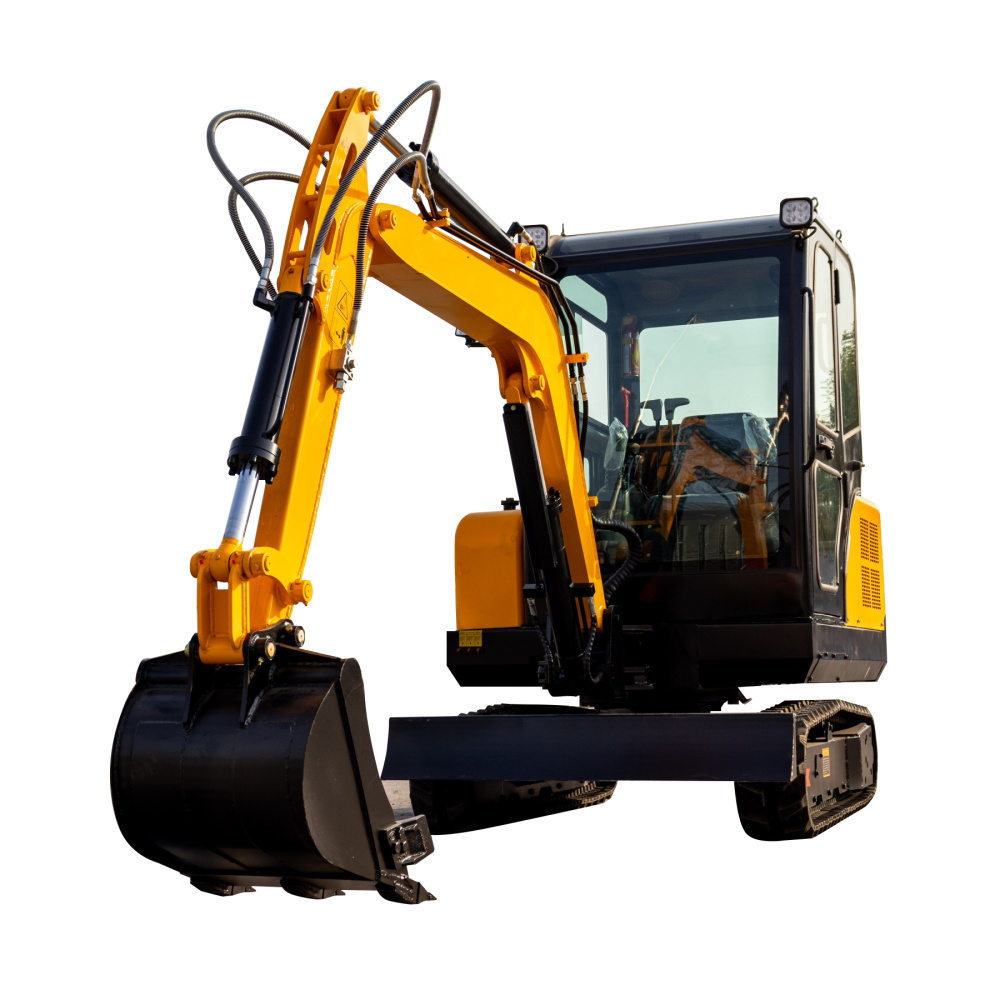

HT30-2 Mini Excavator
1. Imported famous brand engine and hydraulic system with global warranty
2. Self produced working equipment, upper carriage and under carriage , heat treatment with high rigidity
3. Smooth working performance with high efficiency
ODM & OEM
ODM 8 OEM service are available for us to supply.
GOOD REPUTATION
Top quality, good cost efficiency, reliable performance of ourproducts win good reputation from many customers in and abroad.
|
Model:HT30-2 |
|
|
Emission Standard |
Tier 5/ EPA 4 |
|
Make /Model |
Kubota Engine D1105 |
|
Power /Rotation speed |
14.1kw(20HP)@2000rpm |
|
Number of cylinder |
3 |
|
Maximum Travel speed |
2.5km/h |
|
Width of track shoe(Rubber &steel track) |
230mm |
|
Number of track shoe per side(steel track only) |
38pcs |
|
Number of upper roller per side |
0 |
|
Number of bottom roller per side |
4 |
|
Machine Size |
|
|
Overall dimension (L*W*H) |
4170mm*1300mm*2280mm |
|
Axle base(Track length on ground) |
1230mm |
|
Track gauge |
1070mm |
|
Minimum Ground clearance |
230mm |
|
Swing radius at tail |
1180mm |
|
Performance Parameter |
|
|
Standard Bucket capacity |
0.1m³ |
|
Swing speed |
12rpm |
|
Maximum Grade ability |
30° |
|
Maximum Bucket digging force |
15.3KN |
|
Maximum Arm digging force |
10 5KN |
|
Hydraulic system pressure |
18Mpa |
|
Machine weight |
2550kg |
|
Boom length |
1850mm |
|
Arm length |
1000mm |
|
Working Range |
|
|
Maximum Digging height |
3700mm |
|
Maximum Dumping height |
2290mm |
|
Maximum Digging depth |
2450mm |
|
Maximum Vertical digging depth |
2160mm |
|
Maximum Digging radius |
4370mm |
|
Minimum swing radius |
2020mm |
|
Maximum Lifting height of blade |
240mm |
|
Maximum Cutting depth of blade |
310mm |
|
Boom swing angle(Left/Right) |
70°/50 |
