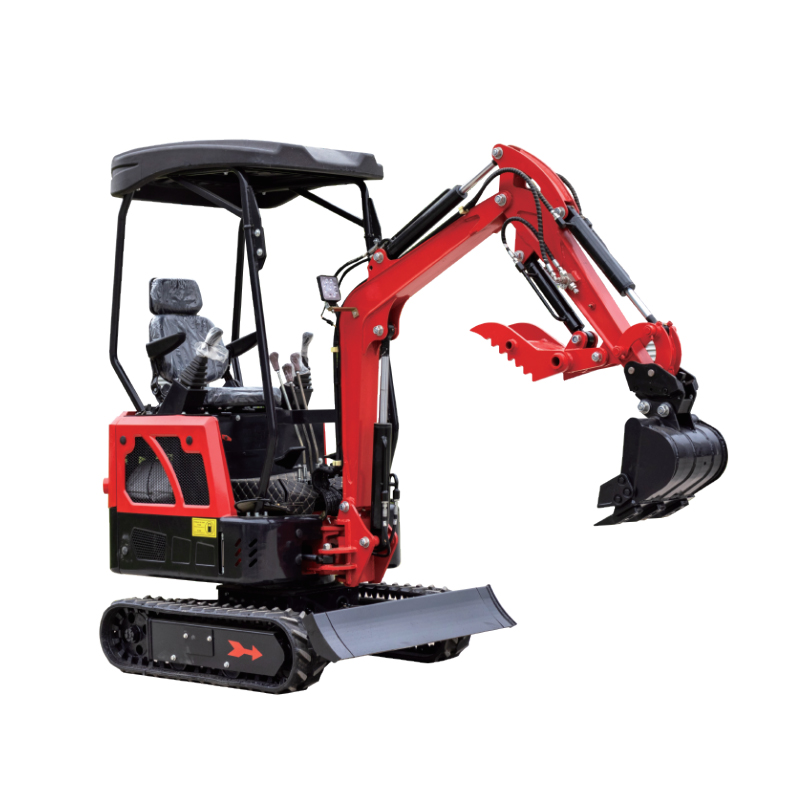

Model:HT16

Emission Standard

Tier 5/ Stage V

Engine

Kubota

Model

D722

Power /Rotation speed

10.2kw(15HP)2500rpm

Number of cylinder

3

Maximum Travel speed

4km/h

PERFORMANCE PARAMETER

Standard Bucket capacity

0.025m³

Swing speed

9 rpm

Max. Grade ability

35°

Maximum Bucket digging force

18KN

Maximum Arm digging force

11KN

Hydraulic system pressure

18.2Mpa

Machine weight

1350kg

MACHINE SIZE

Overall dimension (L*W*H)

2450mm*940mm*2150mm

Chassis width

1000mm

Axle base(Track length on ground)

1300mm

Track width

200mm

Min.Ground clearance

380mm

MAIN DEMENSIONS

Maximum Digging height

2640mm

Maximum Dumping height

2100mm

Maximum Digging depth

1800mm

Maximum Vertical digging depth

2230mm

Maximum Digging radius

2350mm

Minimum swing radius

1190mm
