HT-10A Mini Excavator / 1T Mini Excavator

PA/CE,ISO certificate Optional: Boom swing Color can choose Red, Yellow, Blue, accept customized。

HT-10A Mini Excavator / 1T Mini Excavator Description

HT-10A Mini Excavator Introduction

EPA/CE,ISO certificate Optional: Boom swing

Color can choose Red, Yellow, Blue, accept customized。

HT-10A Mini Excavator Parameter

Model

HT-10A

Weight

1000kg

Digging bucket capacity

0.025cbm/120kg

Bucket width

380mm

Engine

CHANGCHAI (192FAM)

Optional Engine

BRIGGS & STRATTON YANMAR

Bore stroke

Single cylinder, fan cool

Rated power

8.2 kw/3600r/min

Main pump

G5-6

Displacement

6. 8ml/r

Swing motor

SANYANG (BMRS-250)

Traveling motor

SANYANG (BMT-245)

Travel speed

1.5km/h

Main Demensions



Overall dimension( LxWxH)

2775X930X2219mm

Wheelbase

910 mm

Total length of track

1230mm

Platform ground clearance

380 mm

Platform back turning radius

784 mm

Chassis width

896 mm

Track width

180 mm

Chassis ground clearance

132 mm

Track height

320 mm

Operating Range



Max. Digging depth

1650 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of bulldozer blade

255 mm

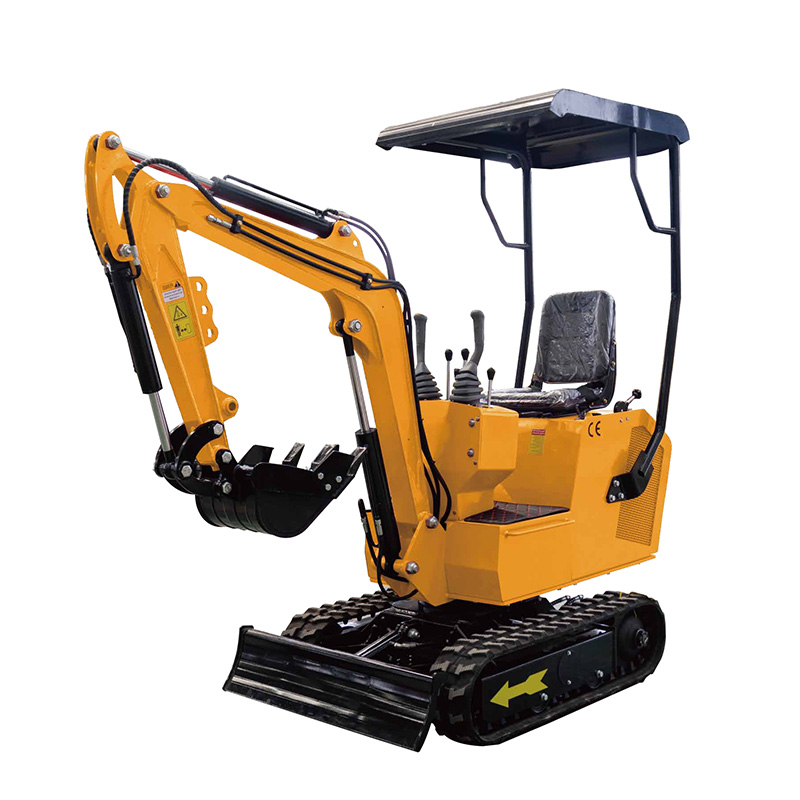

HT-10A Mini Excavator Images
