HT-H45-HT-H70 4.5ton-7ton Diesel/ Gasoline/LPG Forklift Truck

HT-H45-HT-H70 4.5ton-7ton Diesel/ Gasoline/LPG Forklift Truck Description

HT-H45-HT-H70 4.5ton-7ton Diesel/ Gasoline/LPG Forklift Truck Parameter

Generals	Model			UNIT	HT-H45Z	HT-H45	HT-H50Z	HT-H60Z	HT-H70Z
	Power type				Diesel	Diesel	Diesel	Diesel	Diesel
	Rated capacity			kg	4500	4500	5000	6000	7000
	Load center			mm	500	500	600	600	600
Dimensions	Lift height			mm	3000	3000	3000	3000	3000
	Free lift height			mm	150	150	150	150	150
	Fork size(LWT)			mm	1220×150×50	1220×150×50	1220×150×70	1220×150×60	1220×150×70
	Fork outside spread(Min./Max.)			mm	280/1380	280/1380	300/1830	300/1200	300/1200
	Mast tilt range(F/R)			deg	6/12	6/12	6/12	6/12	6/12
	Front overhang			mm	530	530	590	590	590
	Overall dimensions	Length to face of fork	Without of fork	mm	3242	3242	3430	3490	3570
			With fork	mm	4462	4462	4650	4710	4790
			Wheel width	mm	1485	1485	1995	1995	1995
		Mast lowered height		mm	2425	2425	2400	2400	2400
		Mast extended height		mm	4222	4222	4420	4420	4420
		Overhead guard height		mm	2320	2320	2450	2450	2450
	Turning radius			mm	2950	2790	3770	3410	3450
Performance	Travel speed (unload/full load)			km/h	24/24	24/24	30/28	30/28	30/28
	Lift speed (unload/ full load)			mm/s	500/460	500/460	600/400	600/400	600/400
	Self weight			kg	6200	6200	8650	9000	9500
Wheel & Tires Drive units	Max. gradeability			%	19	19	20	20	20
	Tires		Front		300-15-18PR	300-15-18PR	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR
	Tires		Rear		7.00-12-12PR	7.00-12-12PR	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR
	Tread		Front	mm	1180	1180	1470	1470	1470
	Tread		Rear	mm	1190	1190	1700	1700	1700
	Wheelbase			mm	2100	2100	2250	2250	2250
	Min. ground clearance （unload/ full load）		Mast	mm	175	175	190/160	190/160	190/160
	Min. ground clearance （unload/ full load）		Frame	mm	225	225	260/250	260/250	260/250
	Battery			v/ah	2-12/80	2-12/80	2×12/90	2×12/90	2×12/90
	Engine		Model		4D35ZG31	4D35ZG31	4DF3-12GCG3U	4DF3-12GCG3U	4DF3-12GCG3U
			Rated output	kw/r.p.m	57/2200	60/2200	85/2200	85/2200	85/2200
			Rated torque	n.m/r.p.m	285/1300-1500	300/1600-1800	425/1600	425/1600	425/1600
			Displacement	cc	4578	3470	4750	4750	4750
			No. of cylinder		4	4	4	4	4
			Bore×stroke	mm	108/125	98/115	Notes:Optional China Quanchai /Xichai /Japan ISUZU /UK Perkins engine and so on
	Transmission		Model		HhdrauLic	Manual	Hydraulic	Hydraulic	Hydraulic
	Transmission		Shift (FWD/RVS)		2/1	2/2	2/1	2/1	2/1
	Operating pressure			mpa	19	19	19	19	19

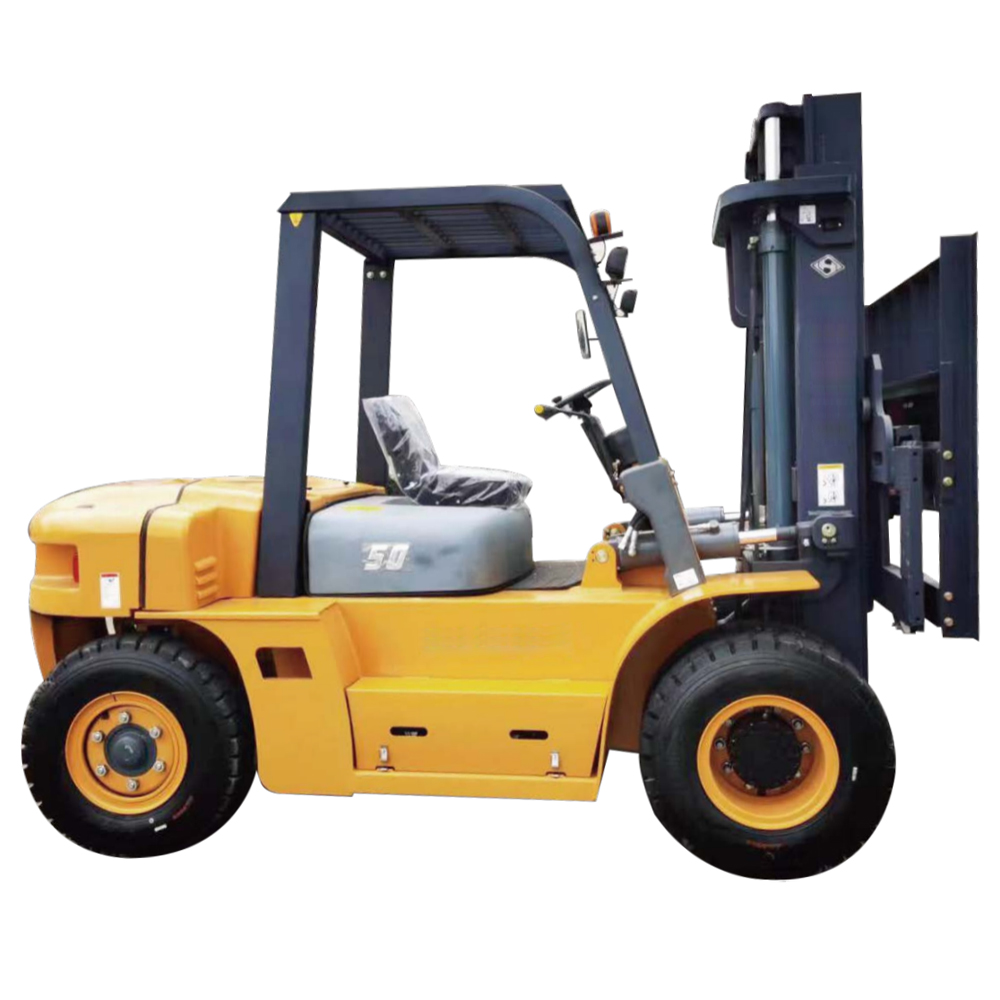

HT-H45-HT-H70 4.5ton-7ton Diesel/ Gasoline/LPG Forklift Truck Images

The above parameters are subject to change without notice! To get the latest information, or have product customization needs, please contact customer service staff: Ask a question and get a quote
