HT-H25-HT-H35 2.5ton-3.5ton Diesel/ Gasoline/LPG Forklift Truck

HT-H25-HT-H35 2.5ton-3.5ton Diesel/ Gasoline/LPG Forklift Truck Description

HT-H25-HT-H35 2.5ton-3.5ton Diesel/ Gasoline/LPG Forklift Truck Parameter

Generals	Model			UNIT	HT-H25	HT-H30Z	HT-H30	HT-H35Z	HT-H35
	Power type					Diesel/ Gasoline/LPG
	Rated capacity			kg	2500	3000	3000	3500	3500
	Load center			mm	500	500	500	500	500
Dimensions	Lift height			mm	3000	3000	3000	3000	3000
	Free lift height			mm	130	130	130	130	130
	Fork size(LWT)			mm	1070×120×40	1070×125×45	1070×125×45	1070×125×45	1070×125×45
	Fork outside spread(Min./Max.)			mm	300/1200	300/1200	300/1200	300/1200	300/1200
	Mast tilt range(F/R)			deg	6/12	6/12	6/12	6/12	6/12
	Front overhang			mm	482	490	490	490	490
	Overall dimensions	Length to face of fork	Without of fork	mm	2630	2680	2680	2730	2730
			With fork	mm	3720	3750	3750	3800	3800
			Wheel width	mm	1150	1225	1225	1225	1225
		Mast lowered height		mm	2095	2095	2095	2095	2095
		Mast extended height		mm	4050	4180	4180	4180	4180
		Overhead guard height		mm	2120	2130	2130	2130	2130
	Turning radius			mm	2380	2460	2460	2510	2510
Performance	Travel speed (unload/full load)			km/h	20/18.5	20/18.5	20/18.5	20/18.5	20/18.5
	Lift speed (unload/ full load)			mm/s	480	480	480	480	480
	Self weight			kg	4000	4250	4250	4500	4500
Wheel & Tires Drive units	Max. gradeability			%	20	20	20	20	20
	Tires		Front		7.00-12-12PR	28×9-15-12PR	28×9-15-12PR	28×9-15-12PR	28×9-15-12PR
	Tires		Rear		6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
	Tread		Front	mm	970	1000	1000	1000	1000
	Tread		Rear	mm	970	970	970	970	970
	Wheelbase			mm	1650	1700	1700	1700	1700
	Min. ground clearance （unload/ full load）		Mast	mm	152/132	152/132	152/132	152/132	152/132
	Min. ground clearance （unload/ full load）		Frame	mm	158/138	158/138	158/138	158/138	158/138
	Battery			v/ah	12/90	12/90	12/90	12/90	12/90
	Engine		Model		4D27G31	4D27G31	4D27G31	4D27G31	4D27G31
			Rated output	kw/r.p.m	36.8/2500	36.8/2500	36.8/2500	36.8/2500	36.8/2500
			Rated torque	n.m/r.p.m	156/1700-1900	156/1700-1900	156/1700-1900	156/1700-1900	156/1700-1900
			Displacement	cc	2670	2670	2670	2670	2670
			No. of cylinder		4	4	4	4	4
			Bore×stroke	mm	90×105	90×105	90×105	90×105	90×105
	Transmission		Model		Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
	Transmission		Shift (FWD/RVS)		2/2	1/1	2/2	1/1	2/2
	Operating pressure			mpa	17.5	17.5	17.5	17.5	17.5

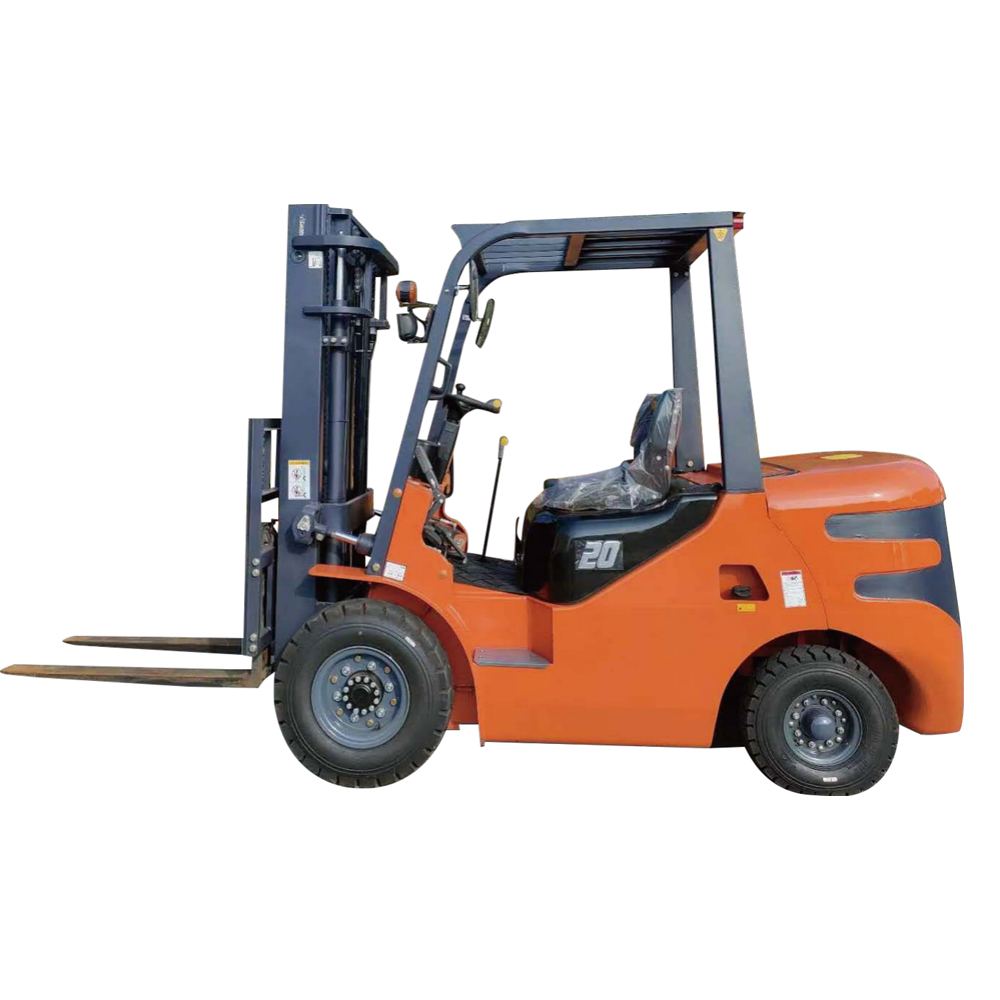

HT-H25-HT-H35 2.5ton-3.5ton Diesel/ Gasoline/LPG Forklift Truck Images

The above parameters are subject to change without notice! To get the latest information, or have product customization needs, please contact customer service staff: Ask a question and get a quote
