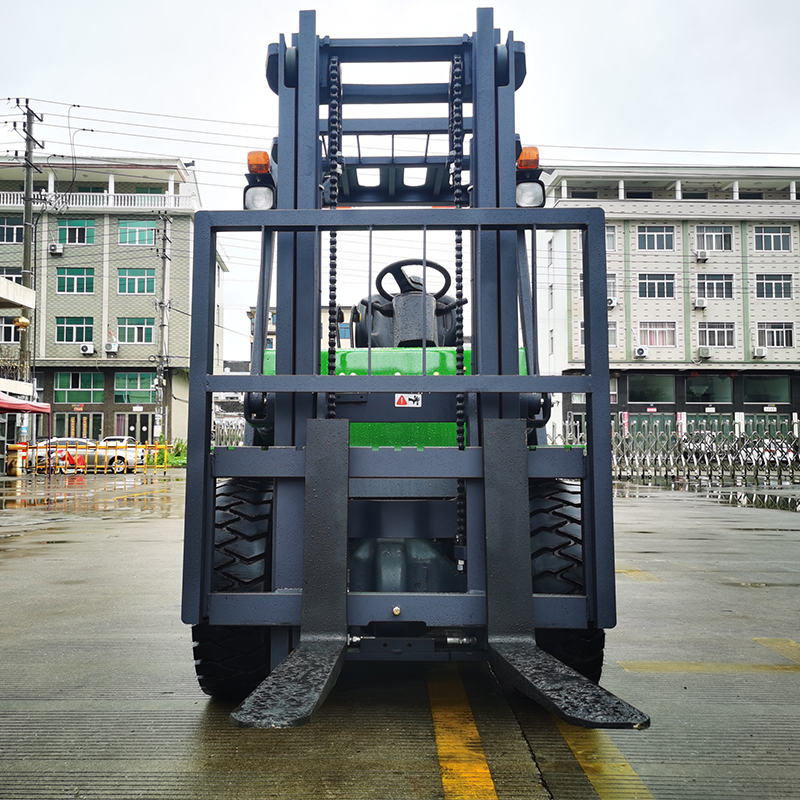

HT3-3.5 ton electric forklift
|
HT3-3.5 ton electric forklift |
||
|
Model |
HT30 |
HT35 |
|
Rated capacity |
3000kg |
3500kg |
|
Load center |
500mm |
500mm |
|
Lift height |
3000mm |
3000mm |
|
Free lift height |
130mm |
130mm |
|
Fork size(L*W*T) |
1070*125*45mm |
1070*125*45mm |
|
Fork outside spread(Min./Max.) |
300/1200mm |
300/1200mm |
|
Mast tilt range(F/R) |
6/12deg |
6/12deg |
|
Front overhang |
490mm |
490mm |
|
without of fork |
2680mm |
2730mm |
|
with fork |
3750mm |
3800mm |
|
wheel width |
1225mm |
1225mm |
|
Mast lowered height |
2095mm |
2095mm |
|
Mast extended height |
4180mm |
4180mm |
|
Overhead guard height |
2130mm |
2130mm |
|
Turning radius |
2460mm |
2510mm |
|
Min. right angle aisle width |
2105mm |
2200mm |
|
Travel speed (unload/full load) |
18km/h |
18km/h |
|
Lift speed (unload/ full load) |
300mm/s |
300mm/s |
|
Self weight |
4250kg |
4500kg |
|
Max. gradeability |
15° |
15° |
