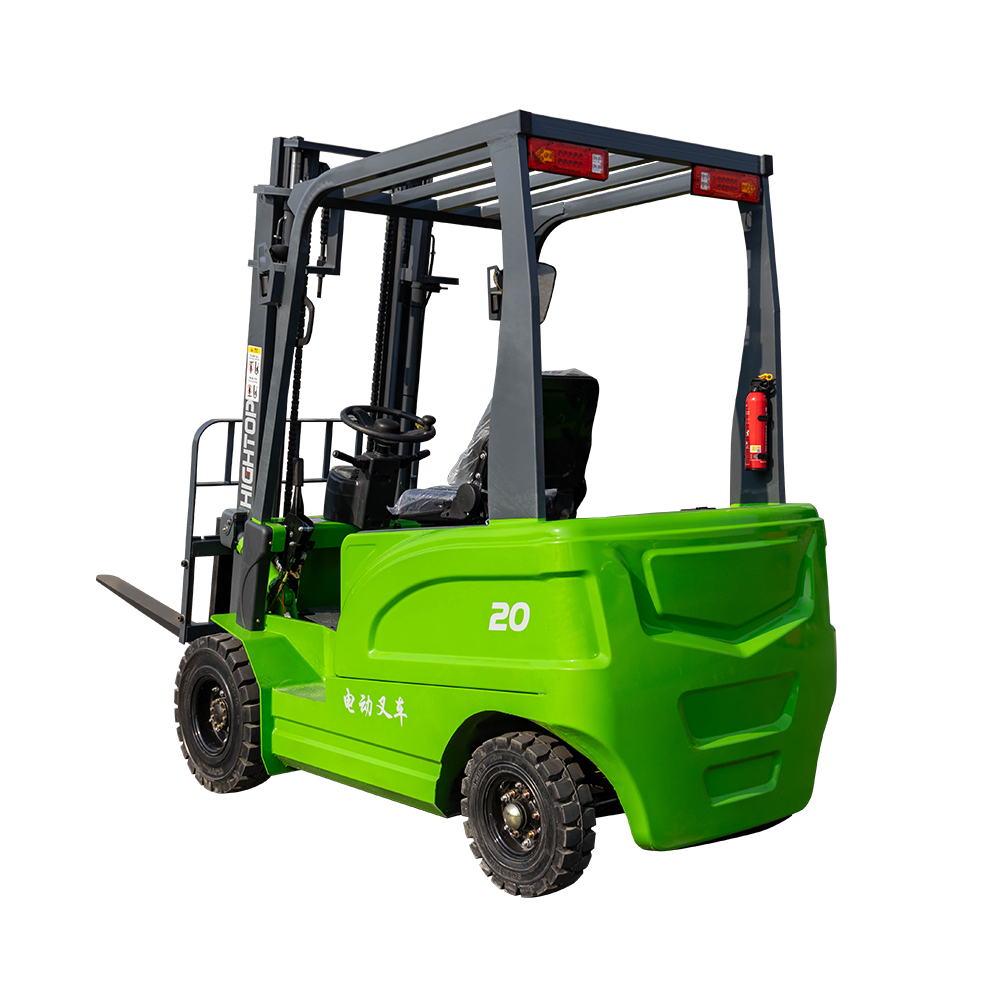

Electric forklift is a kind of handling equipment powered by electricity, with advantages such as energy saving and flexibility.
Electric forklift is a kind of handling equipment powered by electricity, with advantages such as energy saving and flexibility. It is widely used in warehouses, workshops, logistics centers and other places. Electric forklift is powered by electricity, has higher acceleration and climbing ability, can quickly carry out cargo handling and stacking operations, improve work efficiency, electric forklift does not produce exhaust gas and noise, almost no pollution to the environment, is an energy-saving handling equipment, the control system and operation mode adopted by electric forklift make the operation simpler, more convenient and more comfortable. At the same time, it is also equipped with a variety of protective devices. The electric forklift has a simple structure and fewer parts, so it is more convenient to maintain. At the same time, due to the use of electric drive, the maintenance cost is relatively low.

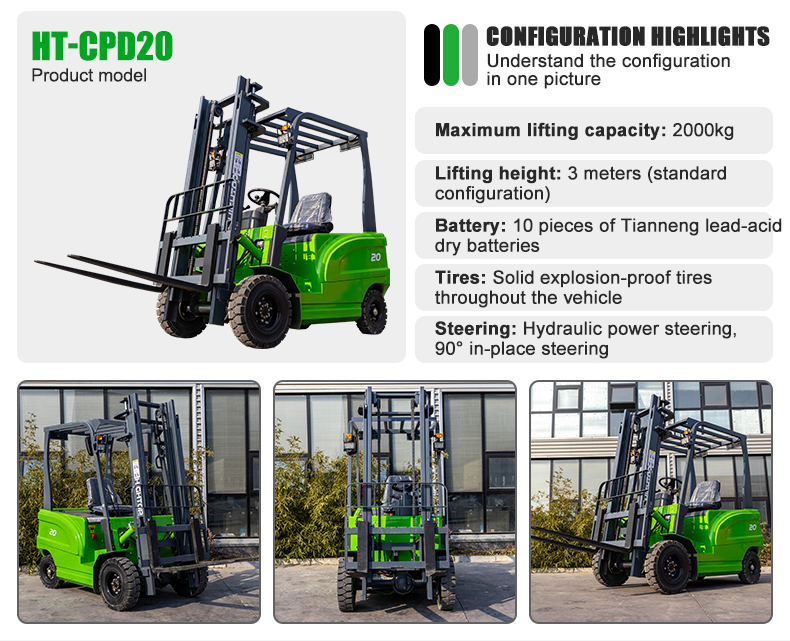

Maximum lifting capacity: 2000kg
Lifting height: 3 meters(standardconfiguration)
Battery: 10 pieces of Tianneng lead-aciddry batteries
Tires: Solid explosion-proof tiresthroughout the vehicle
Steering: Hydraulic power steering90°in-place steering
|

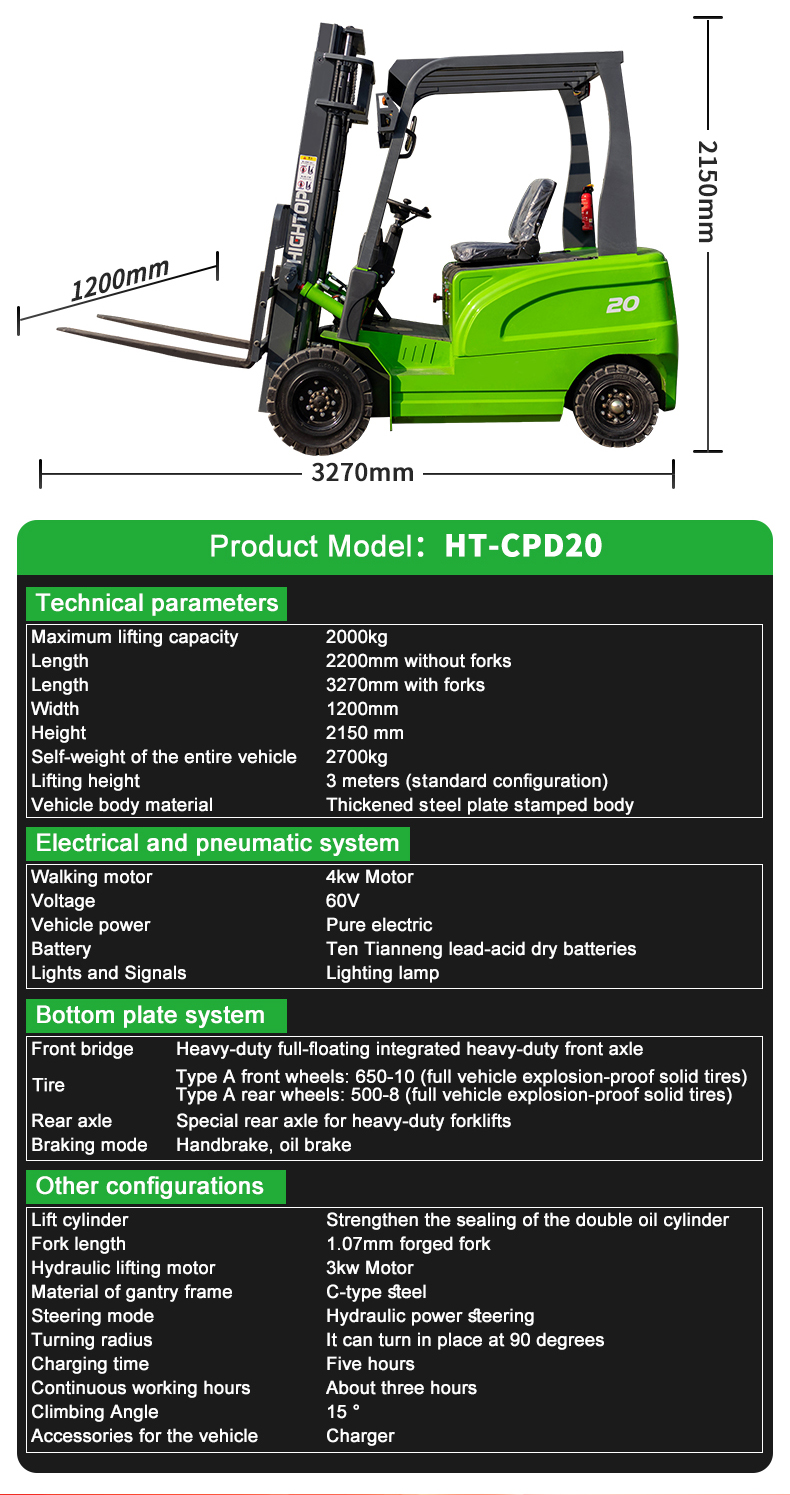

Technical parameters |
|
|
Maximum lifting capacity |
2000kg |
|
Length |
2200mm without forks |
|
Length |
3270mm with forks |
|
Width |
1200mm |
|
Height |
2150mm |
|
Self-weight of the entire vehicle |
2700kg |
|
Lifting height |
3 meters (standard confguration) |
|
Vehicle body material |
Thickened steel plate stamped body |
|
Technical parameters |
|
|
Walking motor |
34kw Motor |
|
Voltage |
60V |
|
Vehicle power |
Pure electric |
|
Battery |
Ten Tianneng lead-acid dry batteries |
|
Lights and Signals |
Lighting lamp |
|
Bottom plate system |
|
|
Front bridge |
Heavy-duty full-floating integrated heavy-duty front axle |
|
Tire |
Type A front wheels: 650-10 (full vehicle explosion-proof solid tires) Type A rear wheels: 500-8 (full vehicle explosion-proof solid tires) |
|
Rear axle |
Special rear axle for heavy-duty forklifts |
|
Braking mode |
Handbrake, oil brake |
|
Other configurations |
|
|
Lift cylinder |
Strengthen the sealing of the double oil cylinder |
|
Fork length |
1.07mm forged fork |
|
Hydraulic lifting motor |
3kw Motor |
|
Material of gantry frame |
C-type steel |
|
Steering mode |
Hydraulic power steering |
|
Turning radius |
It can turn in place at 90 degrees |
|
Charging time |
Five hours |
|
Continuous working hours |
About three hours |
|
Climbing Angle |
15° |
|
Accessories for the vehicle |
Charger |
