The body of the vehicle is formed by stamping thickened steel plateswhich has strong impact resistanceThe front axle is designed as a fully floating integrated structure, whilethe rear axle is a dedic

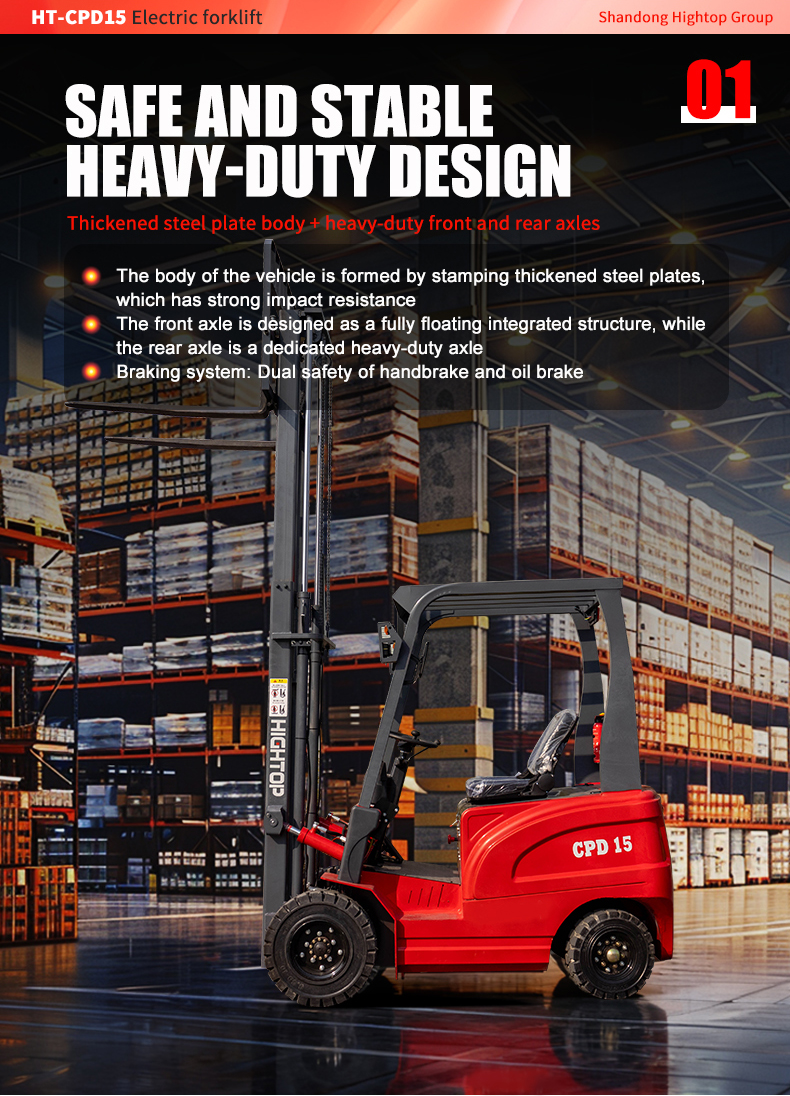

The body of the vehicle is formed by stamping thickened steel plateswhich has strong impact resistanceThe front axle is designed as a fully floating integrated structure, whilethe rear axle is a dedicated heavy-duty axleBraking system: Dual safety of handbrake and oil brake.

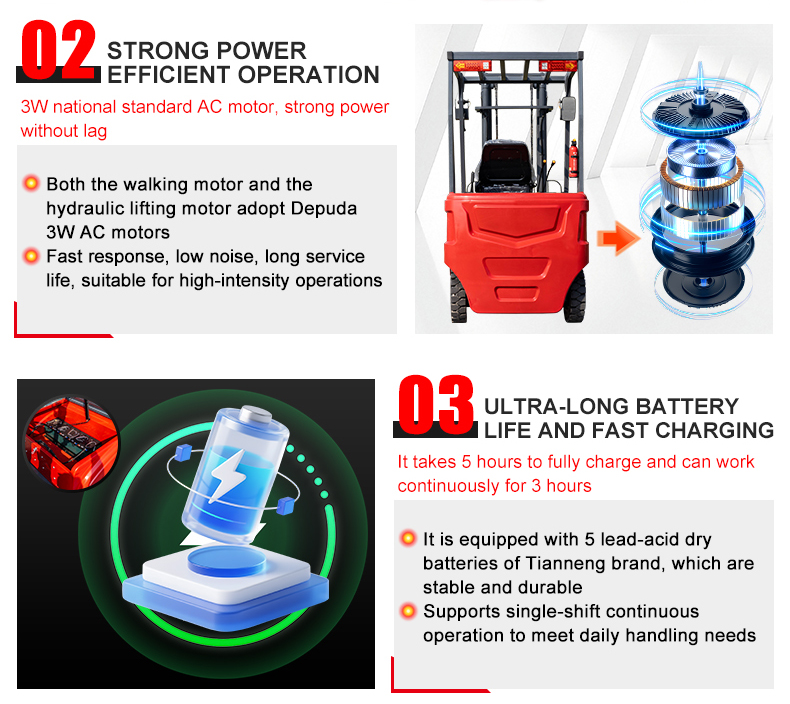

Both the walking motor and thehydraulic lifting motor adopt Depuda3W AC motorsFast response, low noise, long servicelife,suitable for high-intensity operations.
It is equipped with 5 lead-acid drybatteries of Tianneng brand, which arestable and durableSupports single-shift continuousoperation to meet daily handling needs.

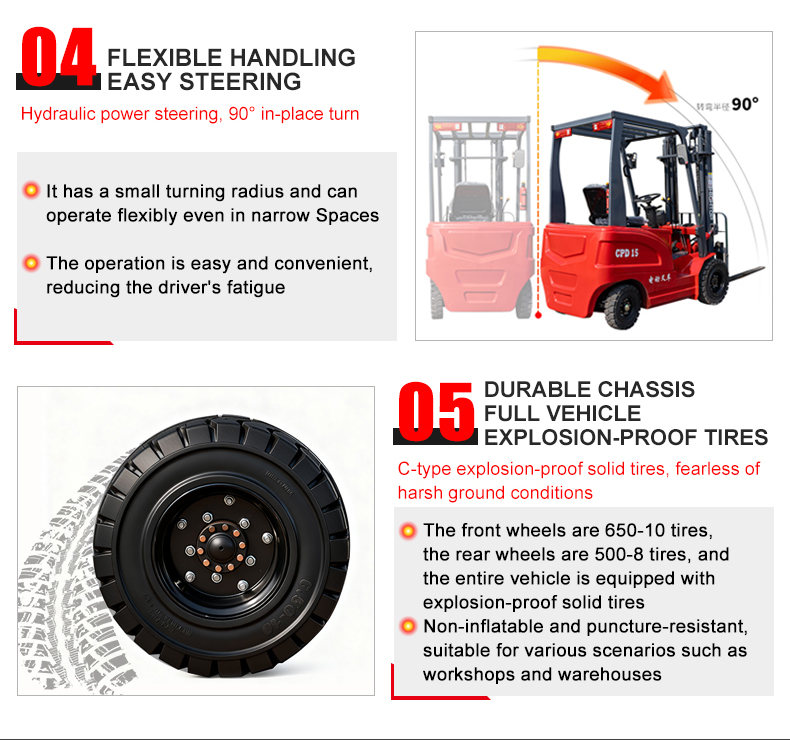

It has a small turning radius and canoperate flexibly even in narrow Spaces
The operation is easy and convenient.reducing the driver's fatigue
The front wheels are 650-10 tires,the rear wheels are 500-8 tires, andthe entire vehicle is equipped withexplosion-proof solid tiresNon-inflatable and puncture-resistant,suitable for various scenarios such asworkshops and warehouses.

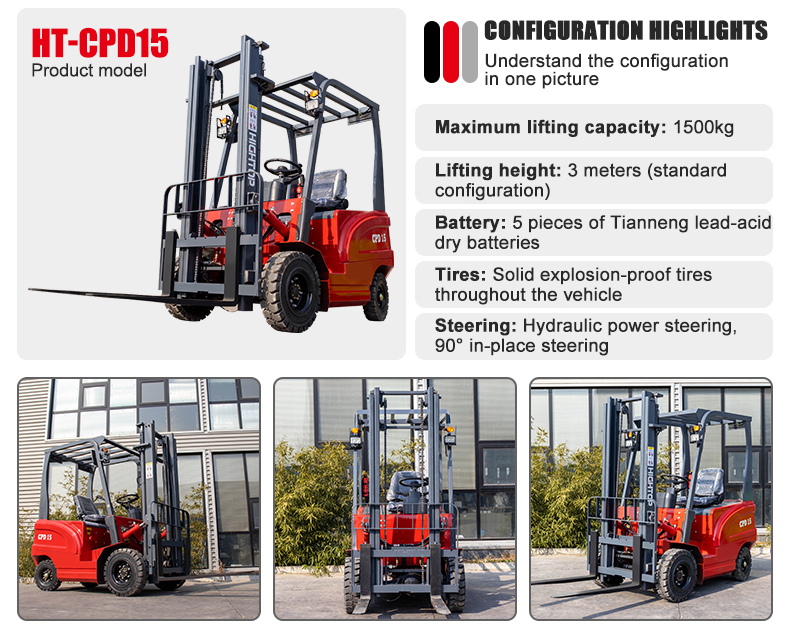

CONFGURATIOM HIGHLIGHTS
Understand the configurationin one picture

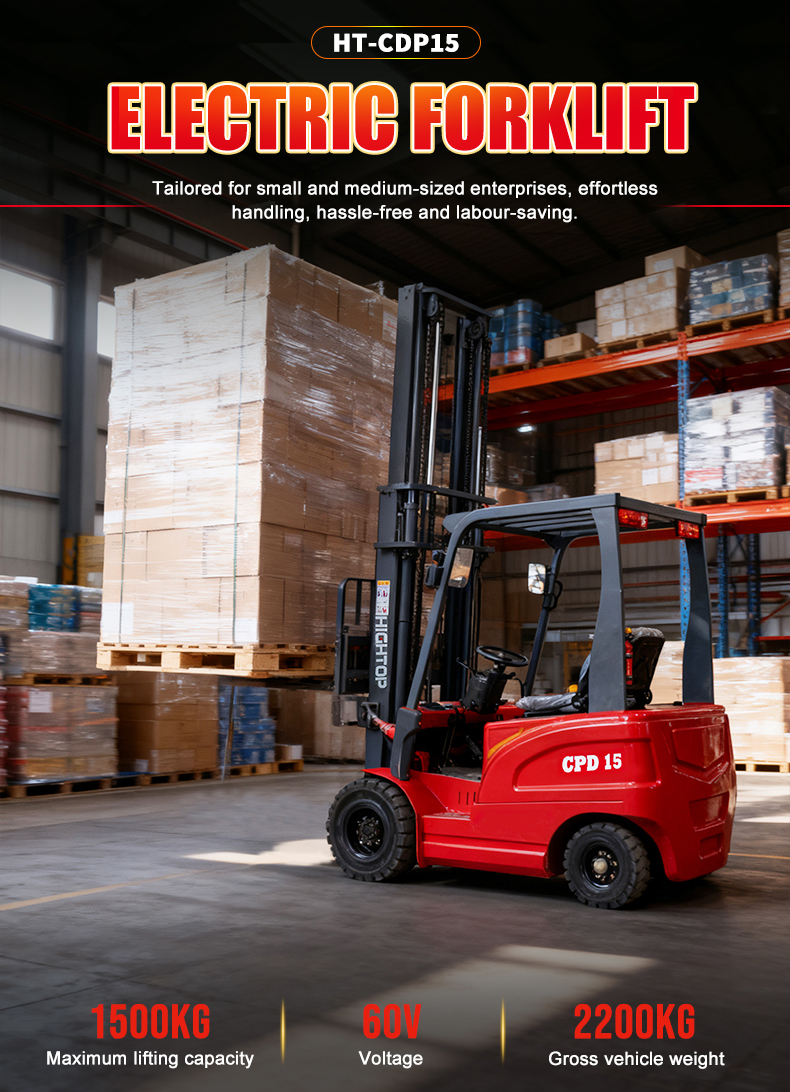

Maximum lifting capacity: 1500kg
Lifting height: 3 meters (standardconfiguration)
Battery: 5 pieces of Tianneng lead-aciddry batteries
Tires: Solid explosion-proof tiresthroughout the vehicle
Steering: Hydraulic power steering90°in-place steering
|

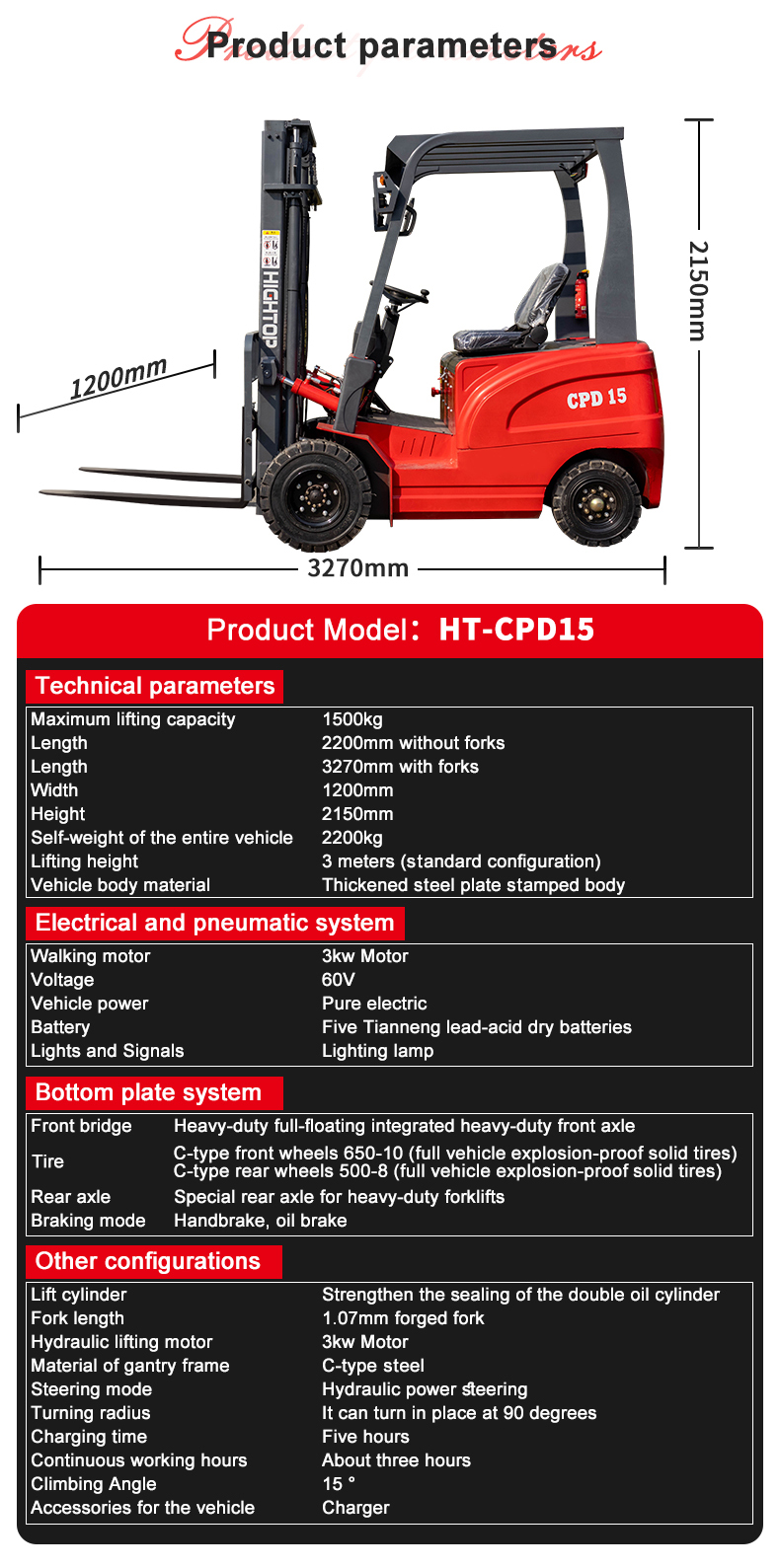

Technical parameters |
|
|
Maximum lifting capacity |
1500kg |
|
Length |
2200mm without forks |
|
Length |
3270mm with forks |
|
Width |
1200mm |
|
Height |
2150mm |
|
Self-weight of the entire vehicle |
2200kg |
|
Lifting height |
3 meters (standard confguration) |
|
Vehicle body material |
Thickened steel plate stamped body |
|
Technical parameters |
|
|
Walking motor |
3kw Motor |
|
Voltage |
60V |
|
Vehicle power |
Pure electric |
|
Battery |
Five Tianneng lead-acid dry batteries |
|
Lights and Signals |
Lighting lamp |
|
Bottom plate system |
|
|
Front bridge |
Heavy-duty full-floating integrated heavy-duty front axle |
|
Tire |
C-type front wheels 650-10 (full vehicle explosion-proof solid tires) C-type rear wheels 500-8 (full vehicle explosion-proof solid tires) |
|
Braking mode |
Handbrake, oil brake |
|
Other configurations |
|
|
Lift cylinder |
Strengthen the sealing of the double oil cylinder |
|
Fork length |
1.07mm forged fork |
|
Hydraulic lifting motor |
3kw Motor |
|
Material of gantry frame |
C-type steel |
|
Steering mode |
Hydraulic power steering |
|
Turning radius |
It can turn in place at 90 degrees |
|
Charging time |
Five hours |
|
Continuous working hours |
About three hours |
|
Climbing Angle |
15° |
|
Accessories for the vehicle |
Charger |
