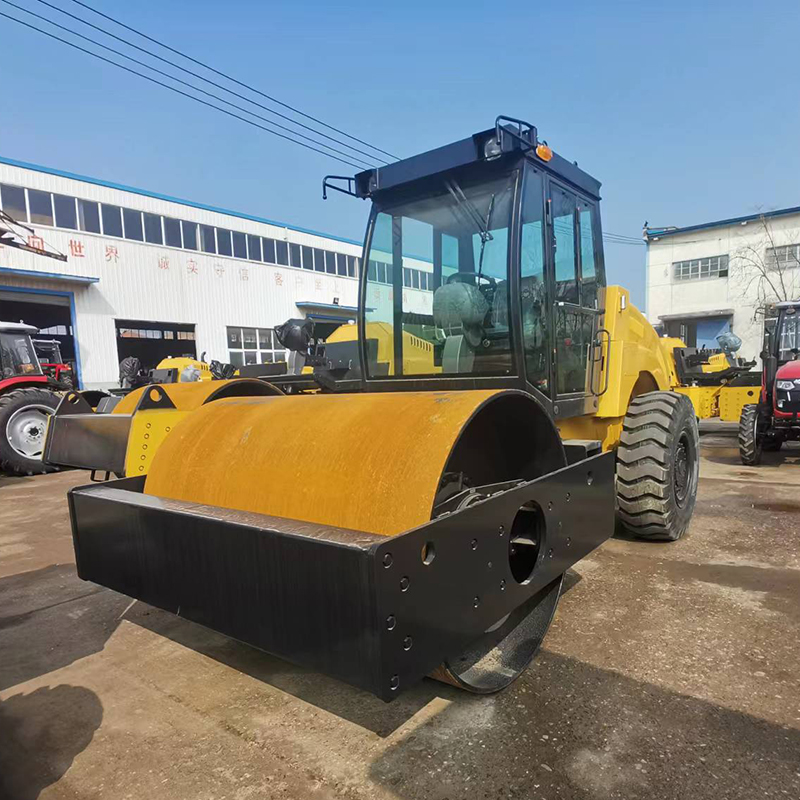

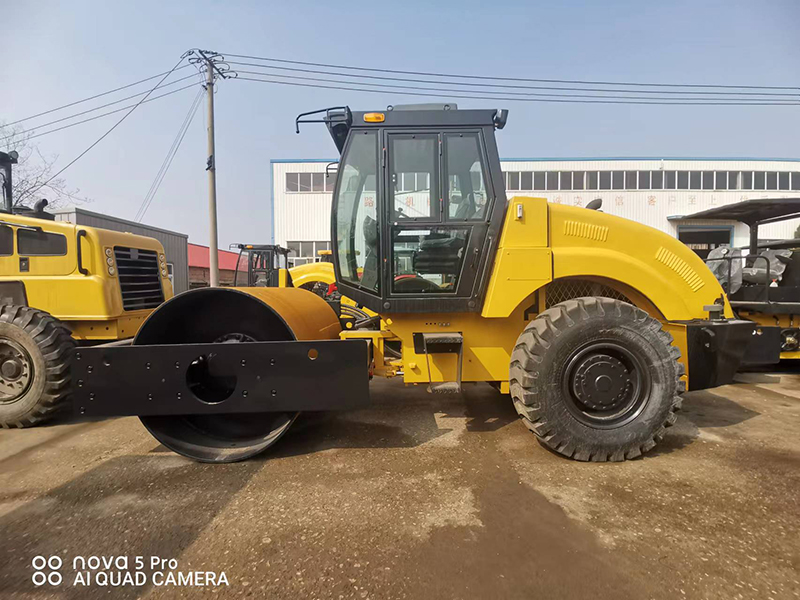

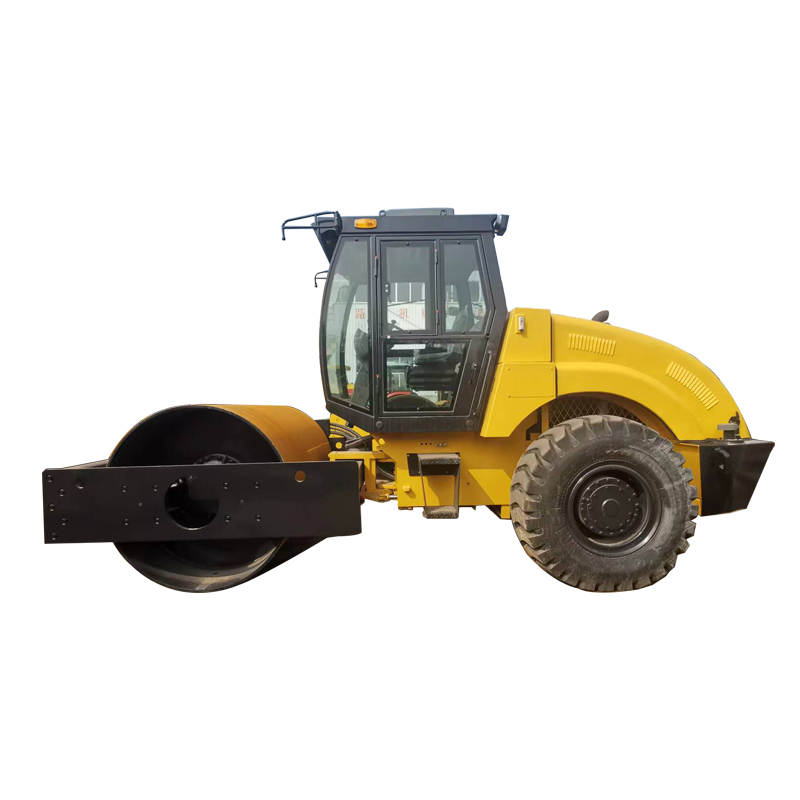

HT210 heavy duty vibratory rollers effect powerful centrifugal force and great static linear load
HT210 heavy duty vibratory rollers effect powerful centrifugal force and great static linear load, they are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.
▲Mechanical walking, hydraulic vibration, double amplitude, hydraulic steering, with reliable performance and the best function/price ratio;
▲The engine adopts reliable Cummins series diesel engine, which is very convenient to use and maintain;
▲Two sets of braking devices, hand brake and foot brake, ensure the safety and reliability of the machine;
▲The cab is spacious and comfortable, and adopts high-quality rubber components to reduce vibration;
▲The hydraulic vibration technology adopts international advanced technology, with high reliability, simple maintenance, convenience and low cost.
|
MODEL |
|
HT210 |
|
Operating mass |
Kg |
|
|
|
|
10000 |
|
Static linear load |
N/cm |
280 |
|
Vibrating frequency |
Hz |
30 |
|
Vibrating amplitude |
mm |
1.6/0.8 |
|
Centrifugal force |
KN |
260/160 |
|
Travel speed |
Km/h |
|
|
1st gear |
|
2.0 |
|
2nd gear |
|
4.0 |
|
3rd gear |
|
10.5 |
|
Grade ability |
% |
30 |
|
Steering angle |
。 |
35 |
|
Ground clearance |
mm |
360 |
|
Electrical voltage |
V |
24 |
|
Tuming radius |
mm |
7000 |
|
Vertical oascillation |
。 |
8 |
|
Tyre size |
|
17.5-25 |
|
Overall length |
mm |
5650 |
|
Overall width |
mm |
2280 |
|
Overall height |
mm |
3050 |
|
Drum width |
mm |
2100 |
|
Drum diameter |
mm |
1400 |
|
Drum rim thickness |
mm |
24 |
|
Wheelbase |
mm |
3060 |
|
Diesel model |
|
6BT5.9 |
|
Diesel power |
Kw |
97 |
|
Diesel speed |
r/min |
2200 |
|
Fuel tank capacity |
L |
220 |
|
Hydraulic tank capacity |
L |
190 |
