International brand cycloid hydraulic motor, double wheel drive,front wheel hydraulic vibration
l Double steel roller
l Japan' s kawasaki / amer ican sauer var iable piston pump,hydraulic system and stable performance;
l International brand cycloid hydraulic motor, double wheel drive,front wheel hydraulic vibration;
l Japan nsk precision ball ball bearings,to ensure that the overall per formance of the machine;
l Pressure water pump e lectronic control water injection system,one button switch, spray evenly;
l Front and rear double LED high efticiency Iighting lap,nignt construction is more conventent.
l Domestic famous brand Chang Chai diesel engine has superior performance and strong power.
|

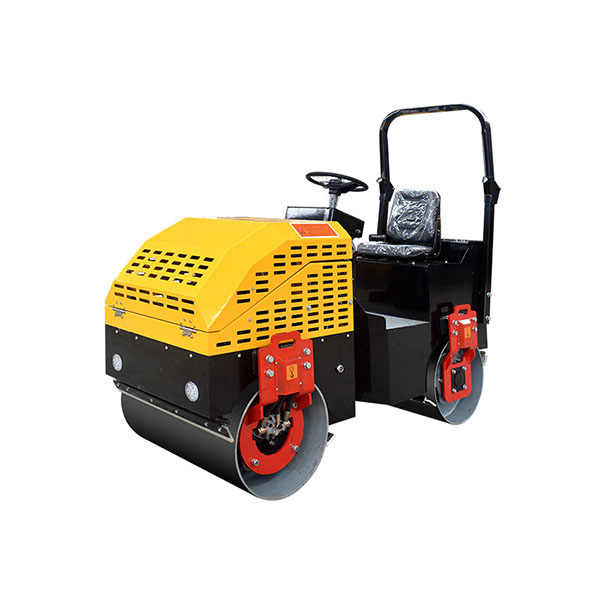

Model : HT-1500 |
||||
|
Walking |
|
Engine |
||
|
Walking Speed |
0-8km/h |
Model |
CHANGFA 192FA |
|
|
Turning radius |
2100mm |
Type |
Diesel engine, Air-cooled four-stroke |
|
|
Gradeability |
30% |
Power |
11hp,3600rpm |
|
|
Compaction |
Fuel Tank |
5.5L |
||
|
Static line load(before /after) |
88/72N/cm |
Fuel consumption |
300g/kw.h |
|
|
Nominal amplitude |
0.5mm |
Dimensions |
||
|
Vibration frequency |
75Hz |
Steel wheel width (front and rear) |
800mm |
|
|
Exciting force |
30KN |
Steel wheel diameter (front and rear) |
530mm |
|
|
Working Data |
Length |
2200mm |
||
|
Drive |
Hydraulic Double Wheel Drive |
Width |
920mm |
|
|
Vibration |
Hydraulic vibration |
Total height(without frame) |
1620mm |
|
|
Turning |
Hydraulic steering |
Package size |
2300x1000x1650mm |
|
|
Watering method |
Electronically controlled pressure water spray |
Weight |
1380kg |
|
