Domestic brand Chang Chai water - cooled engine has superior performance and strong power
Domestic brand Chang Chai water - cooled engine has superior performance and strong power
Adopt international brand NSK high-precision ball bearing with seat to ensure the overall performance of the machine intact;
Two-way hydraulic walking, small working radius, easy operation, flexible rotation;
Surface spray treatment, beautiful and generous, anti-rust corrosion.
Widely used in compacted asphalt surface, compacted gravel, sand and other engineering foundation,compacted lawn, playground andother work.
|

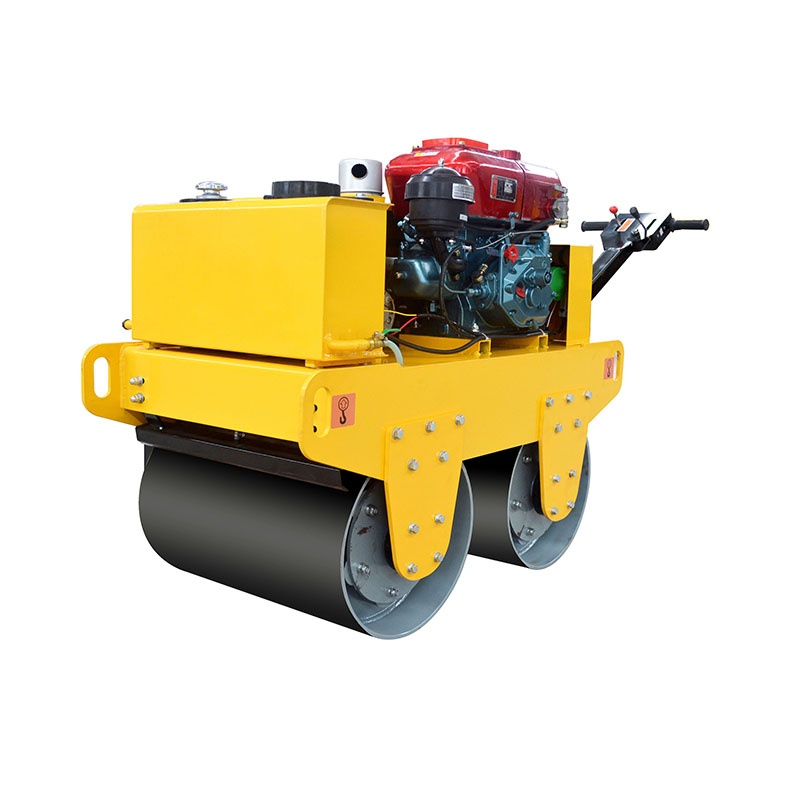

Model : HT-YLS600C |
|
|
Walking |
|
|
Walking Speed |
0-4km/h |
|
Gradeability |
30% |
|
Compaction |
|
|
Nominal amplitude |
0.5mm |
|
Vibration frequency |
75Hz |
|
Exciting force |
20KN2 |
|
Tank volume |
20L |
|
Working Data |
|
|
Drive |
Hydraulic pumps and motors - two-wheel drive |
|
Vibration |
Automatic Vibration ”Double Wheel Vibration |
|
|
|
|
Model |
CHANGCHAI R180 |
|
Type |
Diesel engine air cooled 4 stroke |
|
Power |
8hp ,2300rpm |
|
Fuel Tank |
4.5L |
|
Fuel consumption |
313gkw-h |
|
Dimensions |
|
|
Steel wheel width (ront, back) |
600mm |
|
Steel wheel diametr(front, rear) |
426mm |
|
Total length (handrail level) |
2450mm |
|
Total Width |
780mm |
|
Total height(handrail up) |
1800mm |
|
Package size |
1350 x850x 1250mm |
|
Weight |
590kg |
|
|
|
