Walking Type Double Wheel Road Roller two-way hydraulic walking, small working radius, easy operation, flexible rotation;

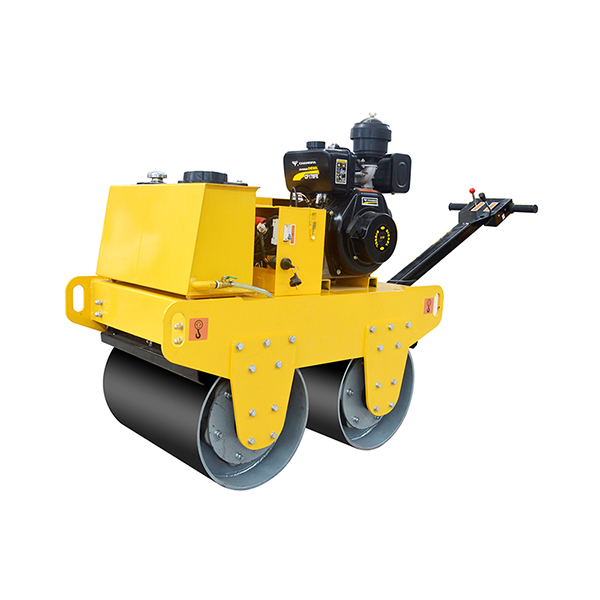

HT-YLS600B Walk-behind road roller( Diesel oil )
Walking Type Double Wheel Road Roller( Diesel oil )
l Domestic brands often diesel engine, superior performance, strong power;
l Adopt international brand NSK high-precision ball bearing with seat to ensure the overall performance of the machine intact;
l Two-way hydraulic walking, small working radius, easy operation, flexible rotation;
l Surface spray treatment, beautiful and generous, anti-rust corrosion.
l Widely used in compacted asphalt surface, compacted gravel, sand and other engineering foundation, compacted lawn, playground and other work.
|
Model : HT-YLS600B |
||||
|
Walking |
|
Engine |
||
|
Walking Speed |
0-4km/h |
Model |
Regular CF178FE |
|
|
Gradeability |
30% |
Type |
Diesel engine, air-cooled 4 stroke |
|
|
Compaction |
Power |
6hp, 3600rpm |
||
|
Nominal amplitude |
0.5mm |
Fuel Tank |
3.5L |
|
|
Vibration frequency |
75Hz |
Fuel consumption |
280g/kw.h |
|
|
Exciting force |
20KN*2 |
Dimensions |
||
|
Tank volume |
20L |
Steel wheel width (front, back) |
600mm |
|
|
Working Data |
Steel wheel diameter(front, rear) |
426mm |
||
|
Drive |
Hydraulic pumps and motors - two-wheel drive |
Total length (handrail level) |
2450mm |
|
|
Vibration |
Automatic Vibration - Double Wheel Vibration |
Total Width |
780mm |
|
|
|
|
Total height(handrail up) |
1800mm |
|
|
|
|
Package size |
1350 x850x1250mm |
|
|
|
|
Weight |
550kg |
|
