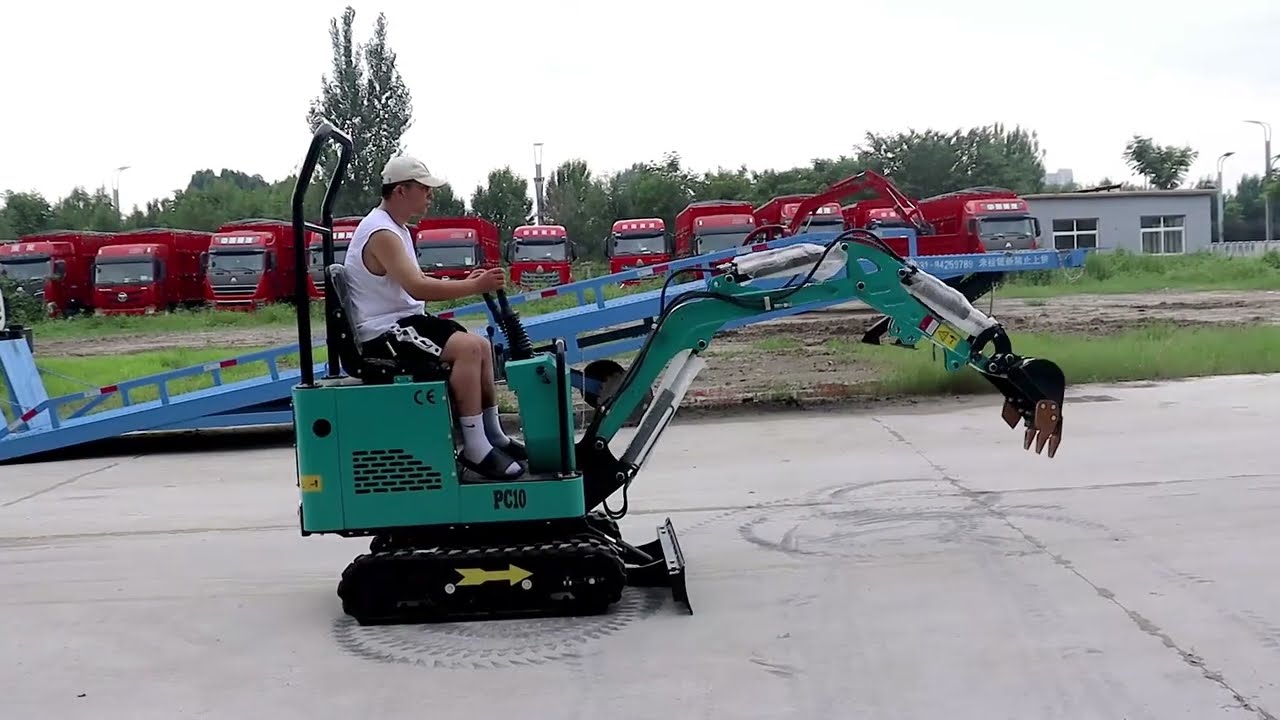

PC10 Mini Excavator – Indoor Access, Deep Digging
Roll it through a standard doorway – 820mm wide, folds to 1380mm.
Digs 1450mm deep – utility trenches, drainage, footings.
21L hydraulic oil tank – keeps working longer in hot weather.
780kg light weight – tows behind a pickup.
Retractable dozer blade – extends for stability on slopes.
Fits Through Doorways – Not Just Gates
Most mini excavators claim to be compact. The PC10 actually fits through a standard doorway – 820mm wide, with a folding canopy that drops the height to 1380mm. That means you can roll it into a basement, a greenhouse, or an indoor renovation site without dismantling the machine or knocking out door frames.
Digs Deep, Stays Cool, Works Longer
The PC10 digs 1450mm deep – deep enough for utility lines, drainage ditches, and foundation footings. But what sets it apart is the 21L hydraulic oil tank – 6 liters larger than most 1-ton competitors. On a hot summer day, that extra capacity means your hydraulic fluid stays cooler longer, so you can keep working through the afternoon instead of stopping to let the machine cool down.
Stable Side Digging – No Rollover Risk
Most mini excavators have a fixed dozer blade. The PC10’s blade retracts and extends – from 700mm up to 900mm. When you’re digging sideways on a slope, that extra width keeps the machine planted. It’s a small feature that makes a big difference when you’re working on uneven ground or next to a trench.
Built to Last – Not Just Painted Over
The PC10’s structural parts go through a full surface treatment – shot blasting, pickling, phosphating, and painting. That’s a process that most competitors skip. They just polish and spray paint, which rusts within a year. The PC10’s paint bonds to the metal, so it stays on the machine, not flaking off in the back of your truck.
PC10 Mini Excavator – Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Basic Specs | Model | PC10 |
| Operating Weight | 780 kg | |
| Bucket Capacity | 0.025 m³ | |
| Bucket Digging Force | 7.5 KN | |
| Engine | Standard Engine | KOOP 192 (12 HP) |
| Optional Engine | Briggs & Stratton | |
| Rated Power | 12 HP | |
| Dimensions | Total Length | 2600 mm |
| Total Width | 820 mm | |
| Total Height (Folded) | 1380 mm | |
| Total Height (Extended) | 1980 mm | |
| Track Width | 150 mm | |
| Min. Ground Clearance | 100 mm | |
| Working Range | Max Digging Depth | 1450 mm |
| Max Digging Height | 2600 mm | |
| Max Dumping Height | 1760 mm | |
| Max Digging Radius | 2750 mm | |
| Min Swing Radius | 1100 mm | |
| Hydraulics & Travel | Pump Type | Single gear pump |
| Working Pressure | 14 MPa | |
| Travel Speed | 2.2 km/h | |
| Gradeability | 30° | |
| Dozer Blade | Retractable Range | 700 – 900 mm |
| Max Lift Height | 120 mm | |
| Max Digging Depth | 200 mm | |
| Hydraulic Tank | Capacity | 21 L |
How wide is the PC10? Will it fit through a doorway?
The PC10 is 820mm wide. With the folding canopy lowered, the height drops to 1380mm – so it fits through most standard doorways and garden gates. This makes it one of the few 1-ton excavators that can work inside buildings.
How deep can the PC10 dig?
Maximum digging depth is 1450mm (1.45 meters) – deep enough for utility trenches, drainage lines, foundation footings, and stump removal.
What's the advantage of the 21L hydraulic oil tank?
Most 1-ton excavators have a 15L hydraulic tank. The PC10 has 21L – 6 liters larger. On hot days or during continuous work, the extra oil keeps the hydraulic system cooler and extends your working hours before the machine needs to cool down.
What's the retractable dozer blade for?
The dozer blade extends from 700mm to 900mm. When you're digging sideways or working on slopes, the wider blade provides more stability and prevents rollover. When you're working in tight spaces, you can retract it to match the machine's width.
What engine options are available?
The standard engine is a KOOP 192 (12 HP). For markets with stricter emission standards or different fuel preferences, we offer Briggs & Stratton options. Contact us for region-specific configurations.
How heavy is the PC10? Can I tow it with a pickup?
At 780kg operating weight, the PC10 tows behind a standard pickup on a small trailer. No special permits or heavy-duty haulers required for most jurisdictions.
How does the PC10 differ from other 1-ton excavators?
The PC10 stands out with its 820mm width and folding canopy – it fits through doorways for indoor work. The 21L hydraulic tank is larger than most competitors, and the retractable dozer blade provides stability on slopes that fixed-blade machines don't offer.
