HTDL06 Wheel Loader

HTDL06 Wheel Loader Support customized exclusive specifications Large selection of attachment tools One machine with multi-function

HTDL06 Wheel Loader Description

HTDL06 Wheel Loader Instruction

Support customized exclusive specifications

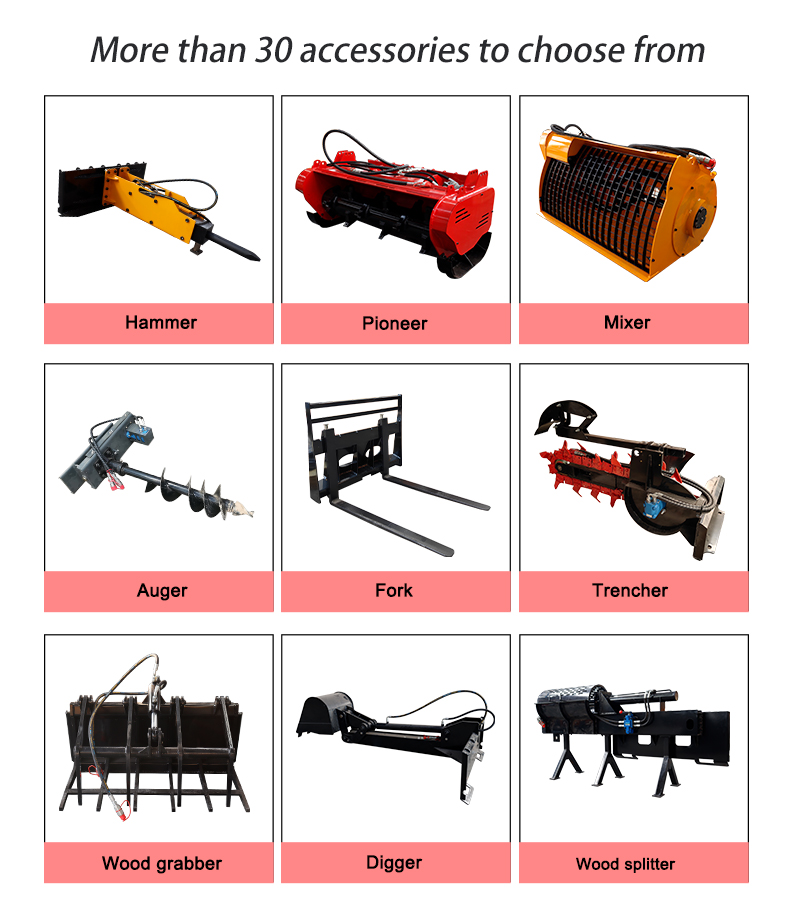

Large selection of attachment tools
One machine with multi-function
loading capacity：0.4-0.6m(600kg)

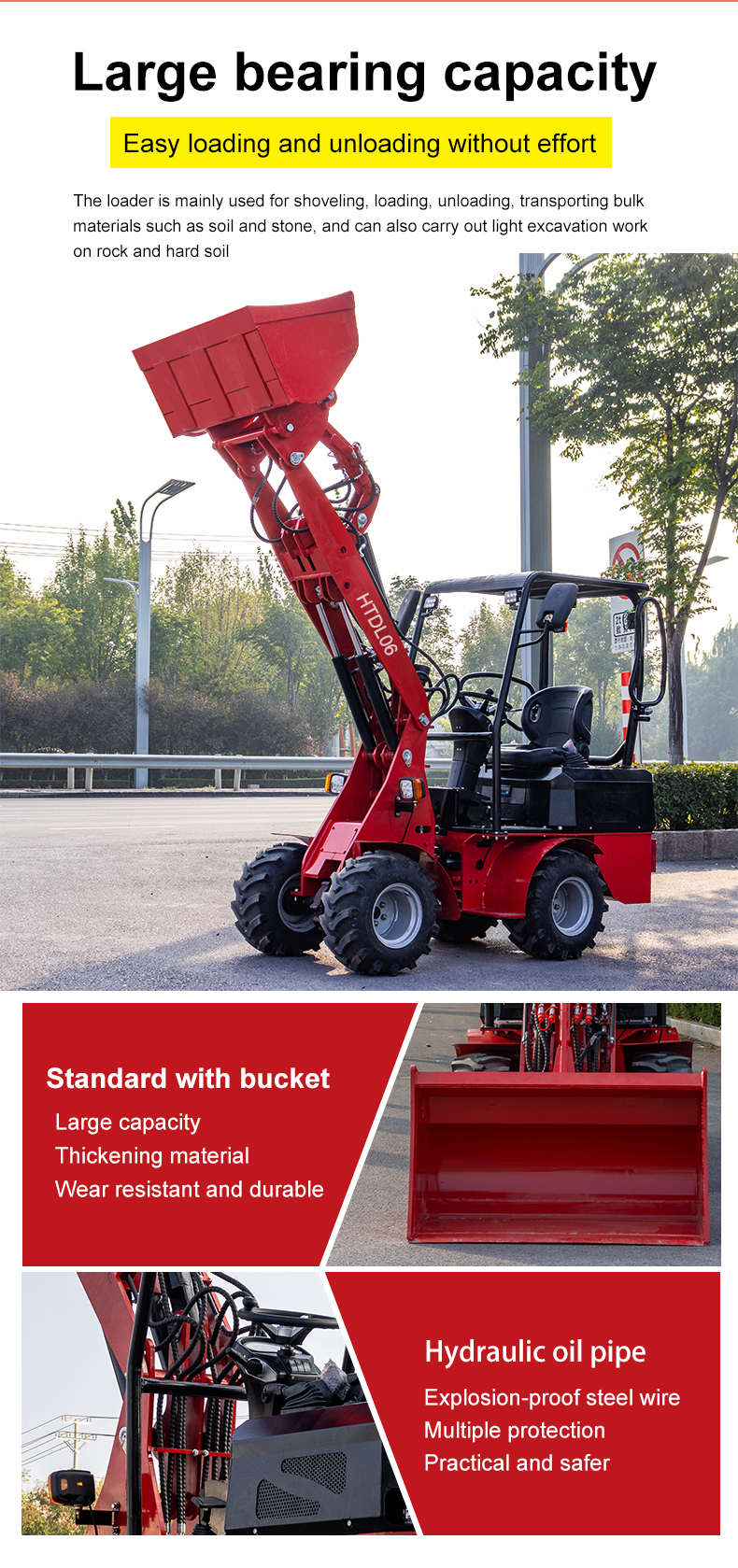

Large bearing capacity
Easy loading and unloading without effort
materials such as soil and stone, and can also carry out light excavation work.
Standard with bucket
Large capacity
Thickening material
Wear resistant and durable
Hydraulic oil pipe
Explosion-proof steel wire
Multiple protection
Practical and safer

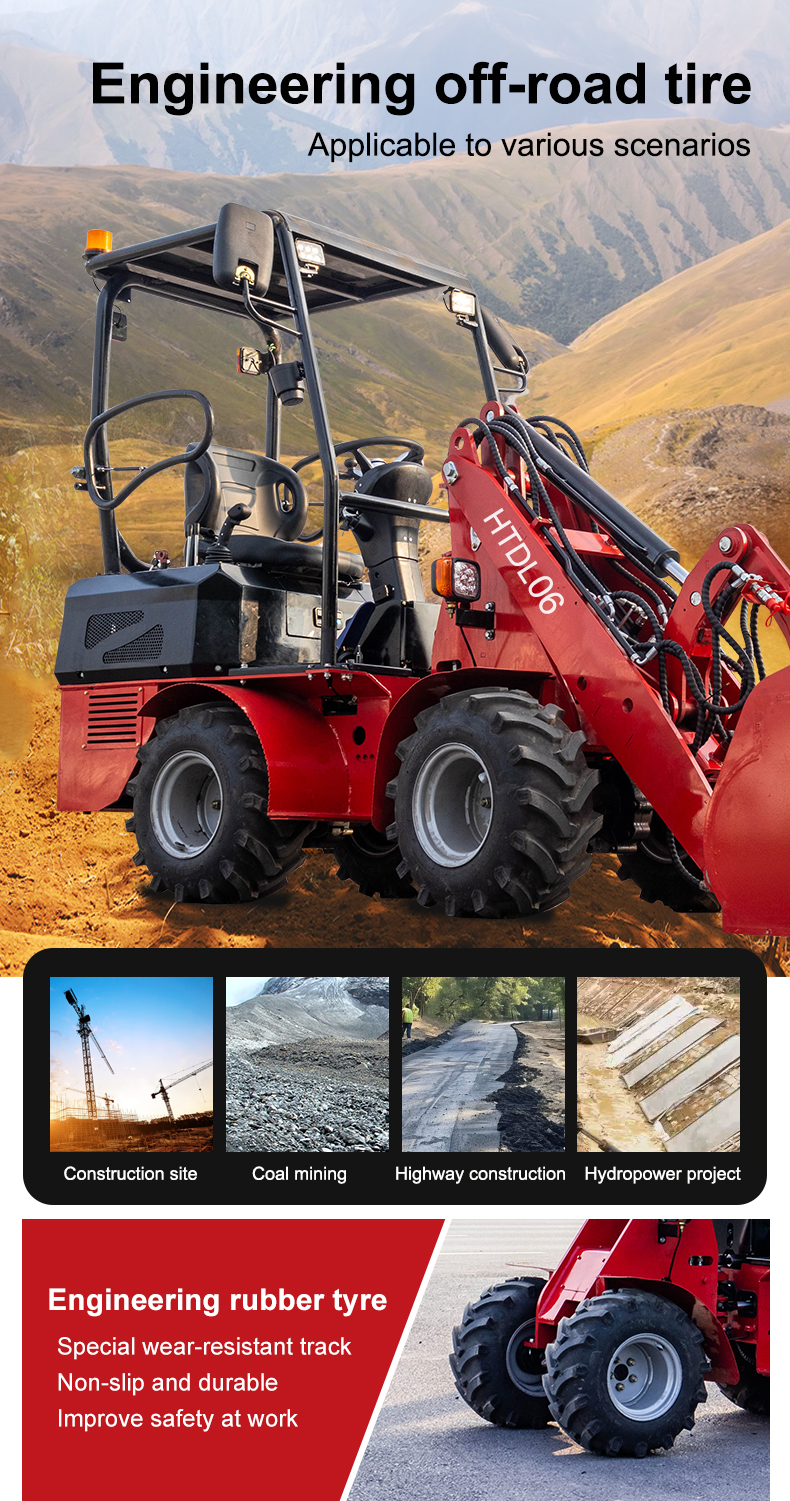

Engineering off-road tire
Applicable to various scenarios
Construction site
Coal mining
Highway construction
Hydropower project
Engineering rubber tyre
Special wear-resistant track
Non-slip and durable
Improve safety at work

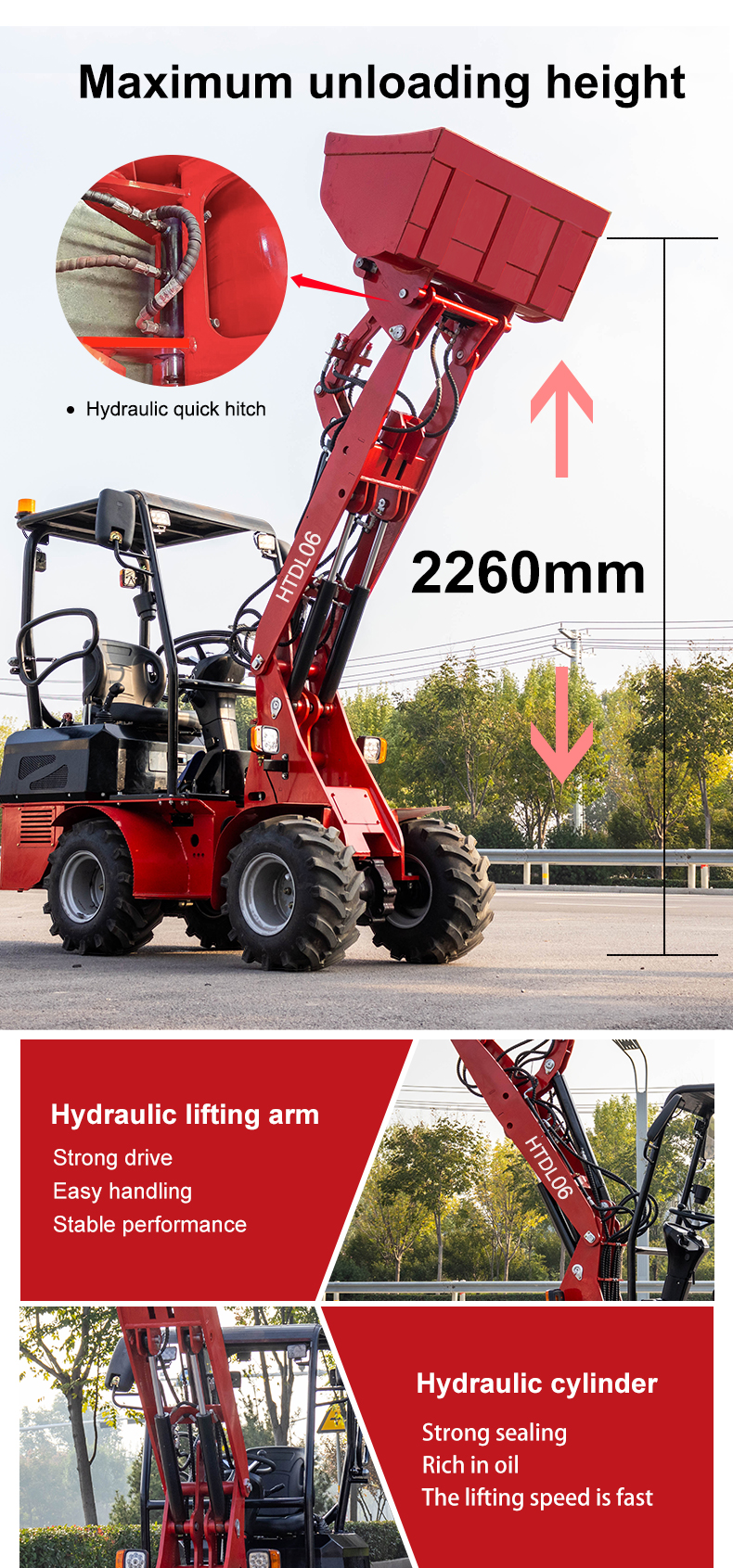

Maximum unloading height
Hydraulic quick hitch
Hydraulic lifting arm
Strong drive
Easy handling
Stable performance
Hydraulic cylinder
Strong sealing
Rich in oil
The lifting speed is fast

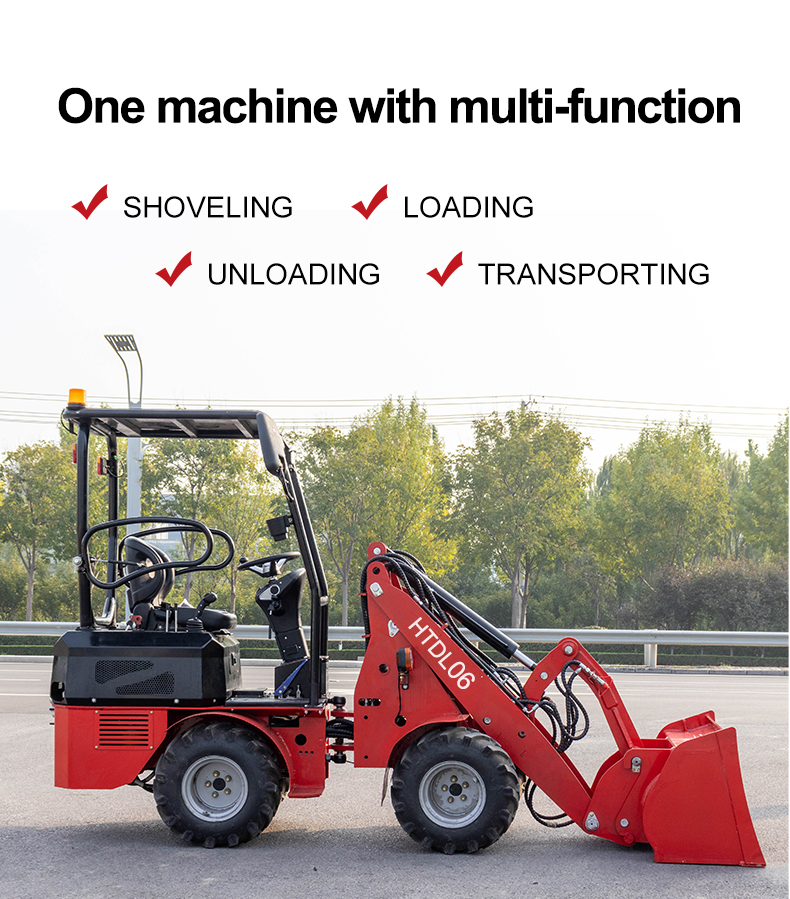

One machine with multi-function
SHOVELING
UNLOADING
LOADING
TRANSPORTING

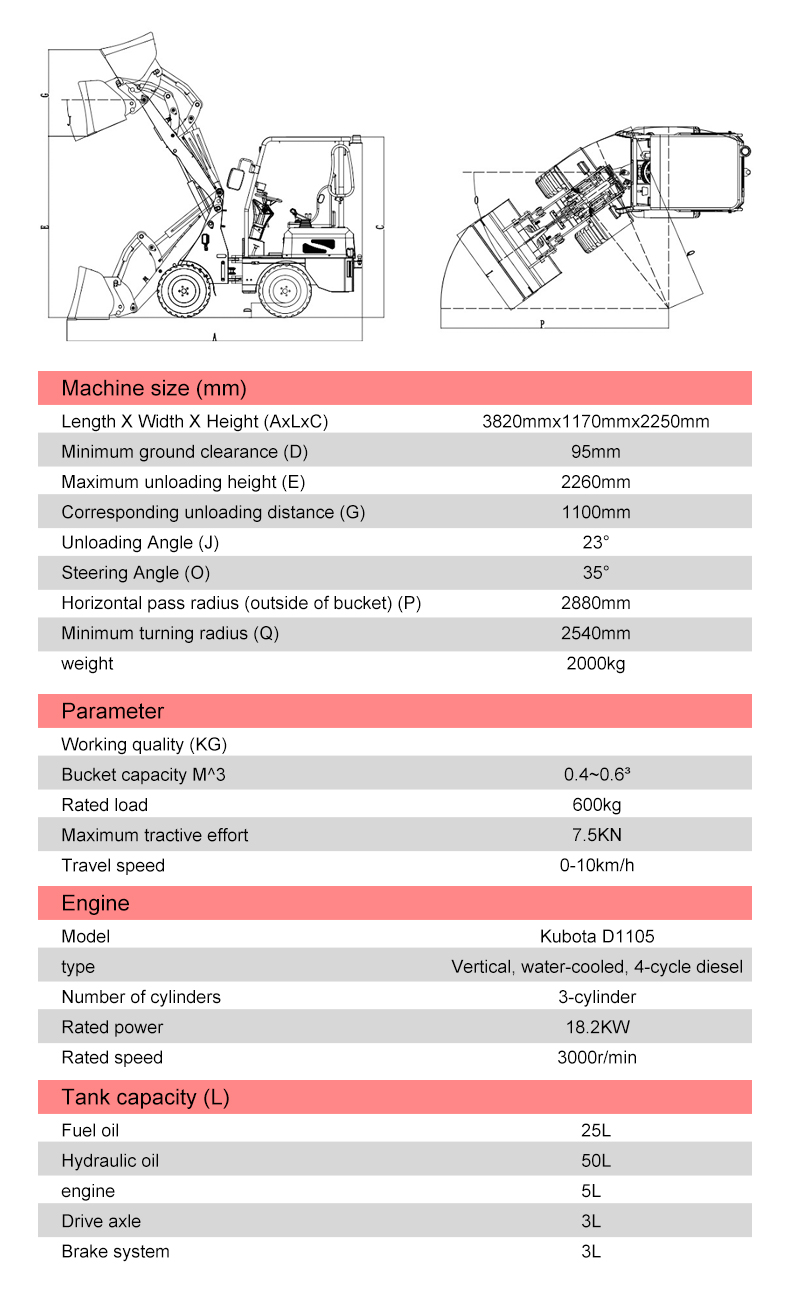

HTDL06 Wheel Loader Parameter

Machine size(mm)
Length X Width x Height (AxLxC)	3820mmx1170mmx2250mm
Minimum ground clearance (D)	95mm
Maximum unloading height (E)	2260mm
Corresponding unloading distance(G)	1100mm
Unloading Angle (J)	23°
Steering Angle (O)	35°
Horizontal pass radius (outside of bucket)(P)	2880mm
Minimum turning radius(Q)	2540mm
weight	2000kg
Parameter
Working quality(kG)
Bucket capacity M^3	0.4~0.6³
Rated load	600kg
Maximum tractive effort	7.5KN
Travel speed	0-10km/h
Engine
Model	Kubota D1105 Engine
type	Vertical, water-cooled, 4-cycle diesel
Number of cylinders	3-cylinder
Rated power	18.2KW
Rated speed	3000r/min
Tank capacity(L)
Fuel oil	25L
Hydraulic oil	50L
engine	5L
Drive axle	3L
Brake system	3L

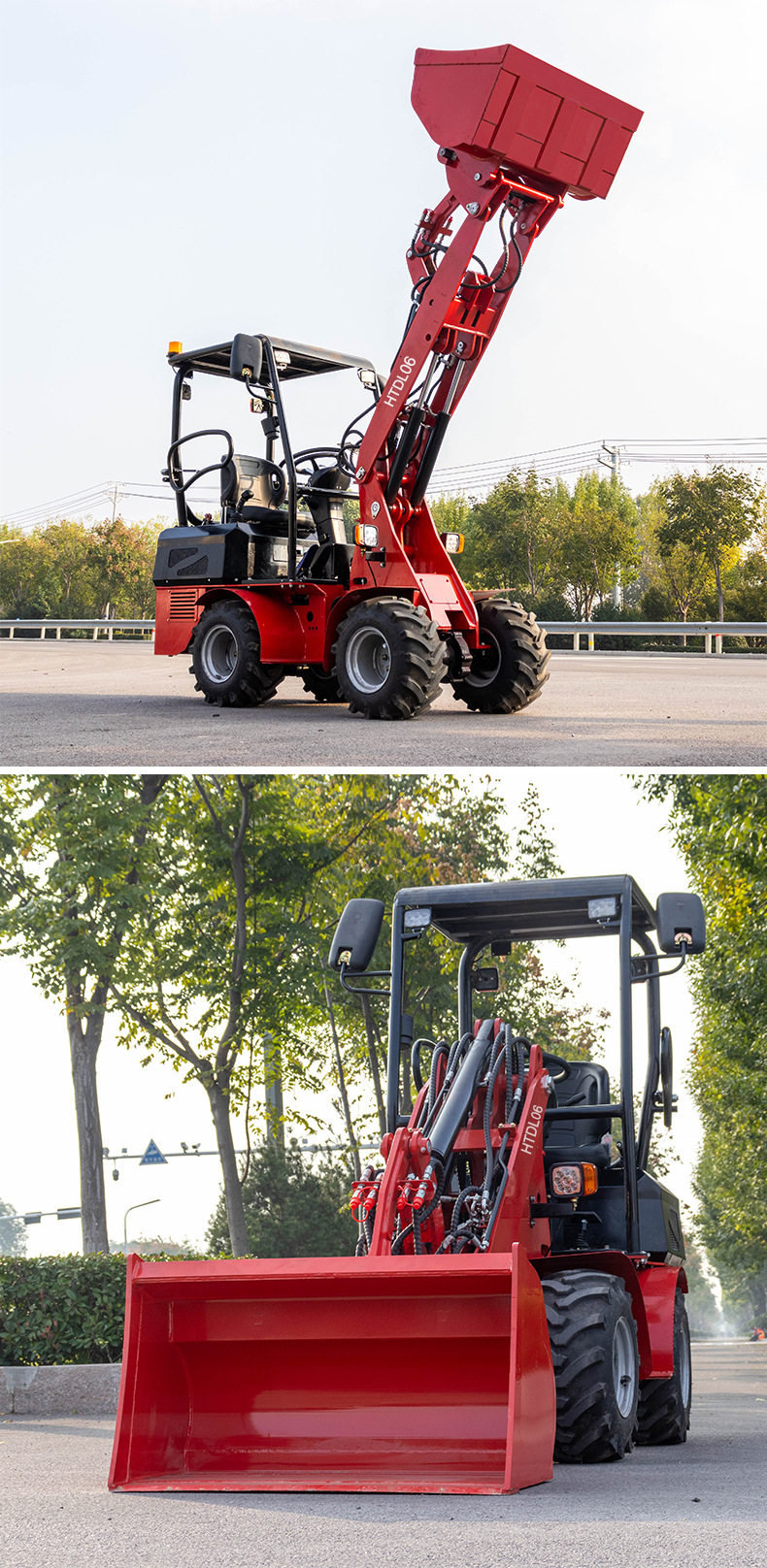

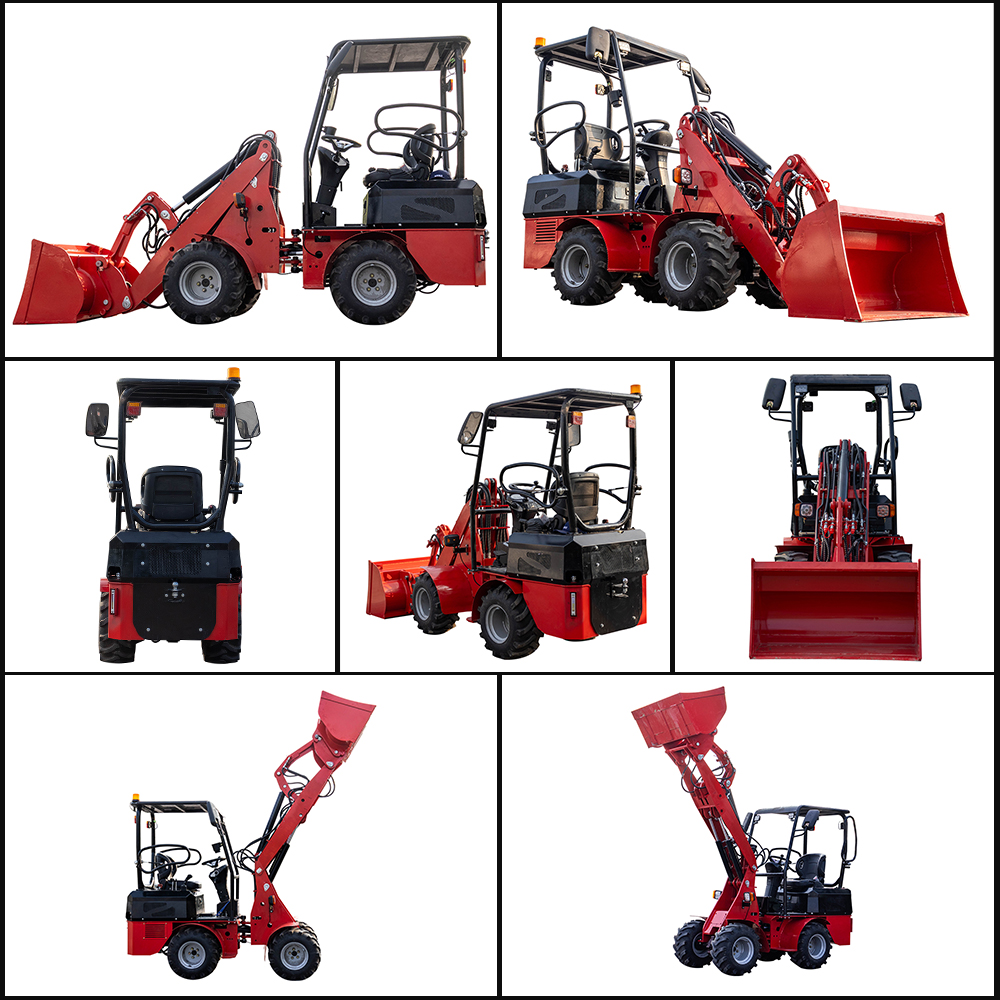

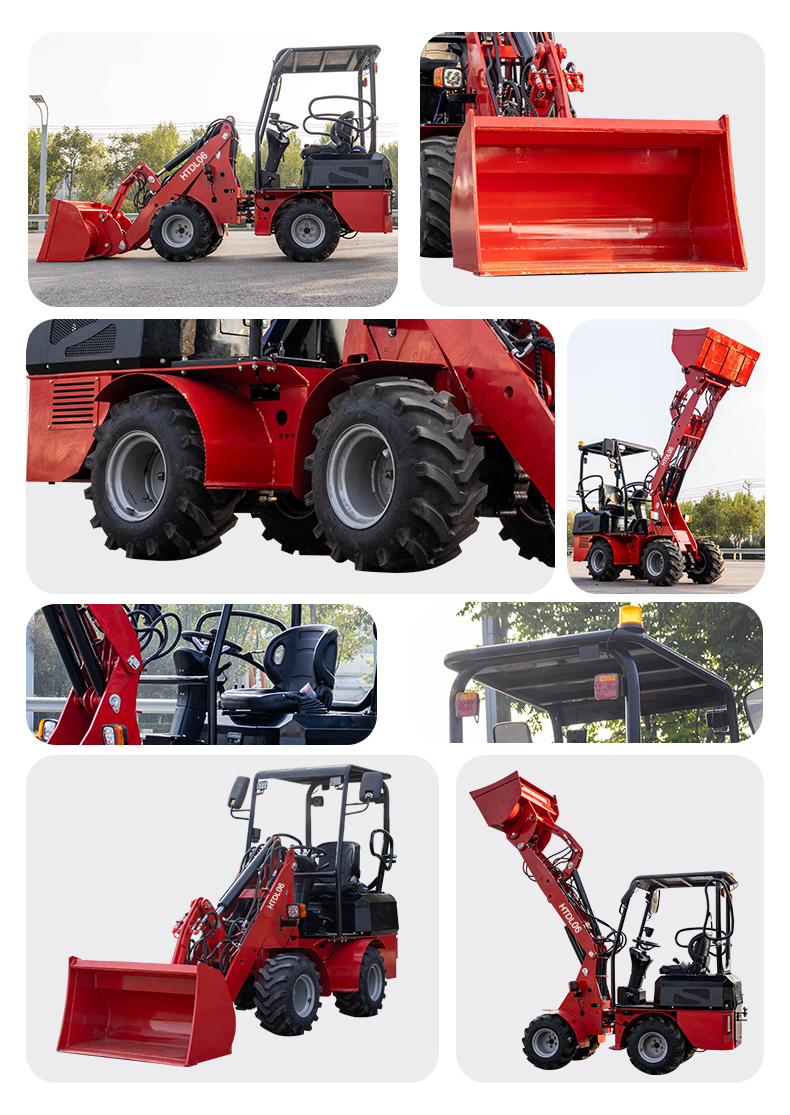

HTDL06 Wheel Loader Images

The above parameters are subject to change without notice! To get the latest information, or have product customization needs, please contact customer service staff: Ask a question and get a quote
