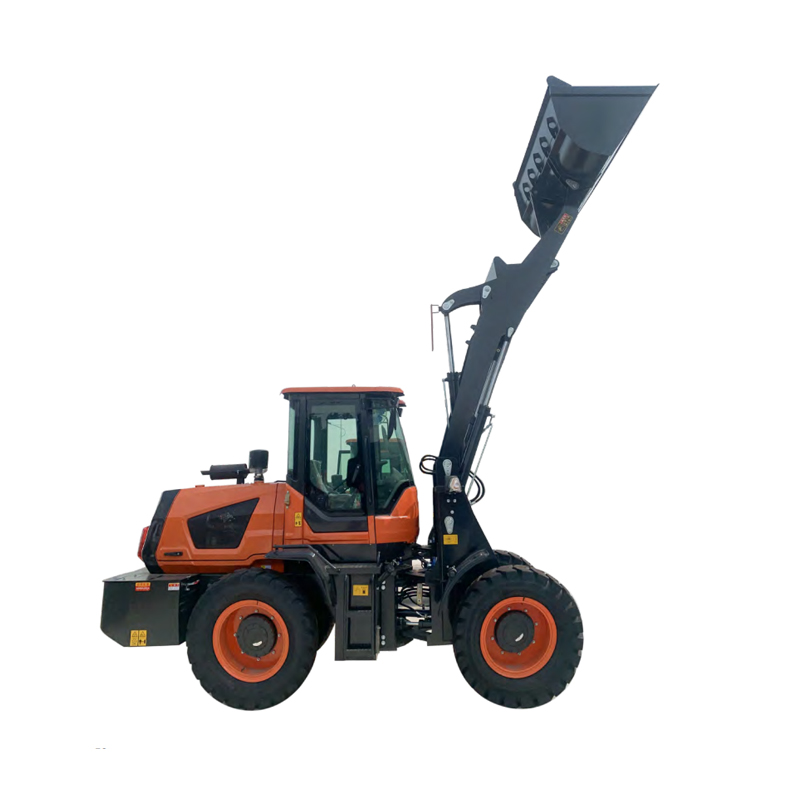

HT926 Wheel Loader
|
Model:HT926 |
||||||
|
Model |
HT926-D1 |
HT926-D2 |
HT926-D3 |
HT926-D4 |
||
|
Rated contained mass |
2000kg |
2000kg |
2000kg |
2000kg |
||
|
Total Weight |
5230kg |
5230kg |
5230kg |
5330kg |
||
|
Bucket capacity |
0.78m³ |
0.78m³ |
0.78m³ |
0.78m³ |
||
|
Bucket width |
2020mm |
2020mm |
2020mm |
2020mm |
||
|
Size(L*W*H) |
6270*1960*2690mm |
6370*1960*2690mm |
6470*1960*2690mm |
6570*1960*2690mm |
||
|
Wheelbase |
1560mm |
1560mm |
1560mm |
1560mm |
||
|
Axle spacing |
2445mm |
2445mm |
2445mm |
2600mm |
||
|
Max.unloading height |
3500mm |
3900mm |
4200mm |
4500mm |
||
|
Min.turning radius |
4900mm |
4900mm |
4900mm |
4900mm |
||
|
Mini.ground clearance |
320mm |
320mm |
320mm |
320mm |
||
|
Boom lift |
5.55s |
5.55s |
5.55s |
5.55s |
||
|
Boom down |
4.74s |
4.74s |
5.74s |
5.74s |
||
|
Trinomial sum |
10.83s |
10.83s |
11.83s |
11.83s |
||
|
Driving speed
|
LowⅠ(F/R) |
6.5 km/h |
6.5 km/h |
6.5 km/h |
6.5 km/h |
|
|
LowⅡ(F/R) |
11 km/h |
11 km/h |
11 km/h |
11 km/h |
||
|
HighⅠ(F/R) |
21 km/h |
21 km/h |
21 km/h |
21 km/h |
||
|
HighⅡ(F/R) |
35 km/h |
35 km/h |
35 km/h |
35 km/h |
||
|
Standard configuration
|
Engineering bucket, 265 split high and low speed torque converter, cast steel axle with four wheel disc brakes on the centre wheel side
|
265 split high and low speed torque converter, cast steel axle with four wheel disc brakes on the centre wheel side axle
|
Grain hopper, 265 split high and low speed torque converter, cast steel axle with four wheel disc brakes on the middle wheelside
|
Engineering bucket, 265 split high and low speed torque converter, cast steel axle with four wheel disc brakes on the centre wheel side
|
||
|
Engine
|
Engine model |
416-88M22 |
416-88M22 |
416-88M22 |
416-88M22 |
|
|
Rated power |
74kW |
74kW |
74kW |
74kW |
||
|
Rated speed |
2400r/min |
2400r/min |
2400r/min |
2400r/min |
||
|
Emission Standards |
Europe II |
Europe II |
Europe II |
Europe II |
||
|
Origin |
QUANCHAI |
QUANCHAI |
QUANCHAI |
QUANCHAI |
||
