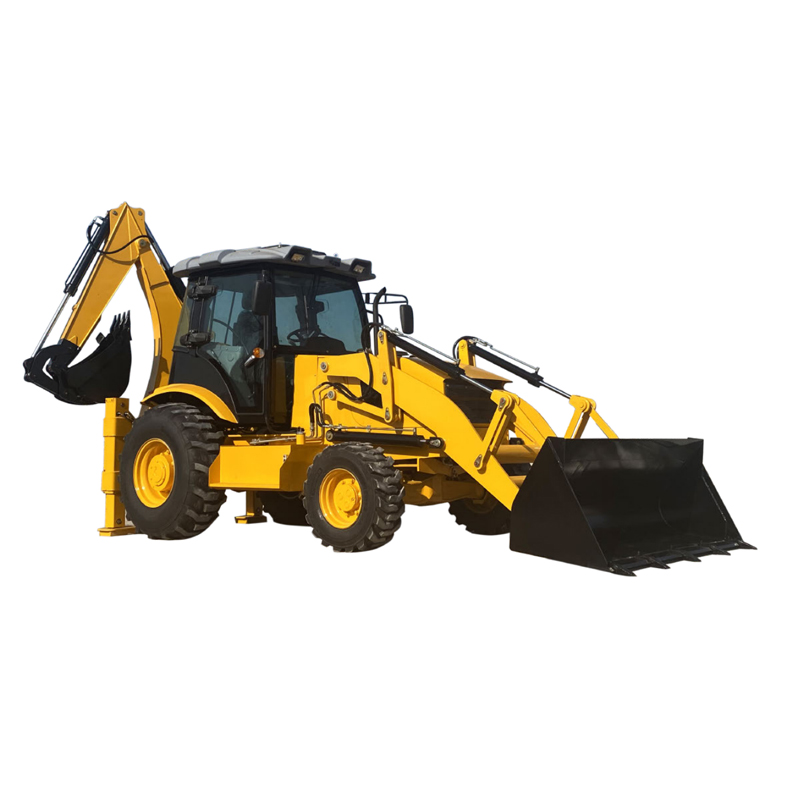

Model:HT40-28

Overall Operating Weight

8000KG

STEERING SYSTEM

TRANSPORT DIMENSION

Steering Angle

±36°

L*W*H

8000×2200×2900mm

Min. turning radius

6581mm

Wheel base

2250mm

Pressure of the system

12Mpa

Min. Ground Clearance

300mm

AXLE

Bucket Capacity

1.5m3

Brand

FEICHENG YUNYU

Breakout Force

38KN

Main Transmission Type

Double Reduction

Loading Lifting Capacity

2800KG

Final Reducer

Single Stage Final Reducer

Bucket Dumping Height

2800mm

Rated Loader of Axle

4/18.5t

Bucket Dumping Distance

1062mm

TRANSMISSION SYSTEM

Digging Depth

52mm

TORQUE CONVERTER

Backhoe Capacity(Width)

0.35m3(620mm)

Model

YJ280

Max. Digging Depth

4100mm

Type

Single-stage Three Elements

Swing Angle of backhoe

1900

Cooling Method

Oil-cooling Pressure Circulation

Max. Pulling Force

39KN

GEARBOX

ENGINE

Type

Fixed Shaft Power Transmission

Model

YUCHAI

Optional Gears

Two Gears Ahead, Two Gears Astern

Type

In Line，Direct injection，Four-Stroke，Water Cooling

Max. Speed

30Km/h

Rated Power

85KW

TYRE

Optional engine

DONGFENG CUMMINS 75KW

Model

(F)14-17.5 /(R)19.5L-24

CUMMINS 92KW

Pressure of Front wheel

0.22 Mpa

CUMMINS Euro3 75KW

Pressure of Back Wheel

0.22 Mpa

HYDRAULIC SYSTEM

BRAKE SYSTEM

Pressure of Hydraulic System

22Mpa

Service Brake

Air Over Oil Caliper Brake

Digging Power of Excavator Grab

46.5KN

External Type

Digging Power of Dipper

31KN

Self-regulation

Bucket Lifting Time

5.4S

Self-balance

Bucket Lowering Time

3.1S

 Emergency Brake

Operation Power Implementing brake

Bucket Discharge Time

2.0S

Manual Operation Power Terminating Brake
