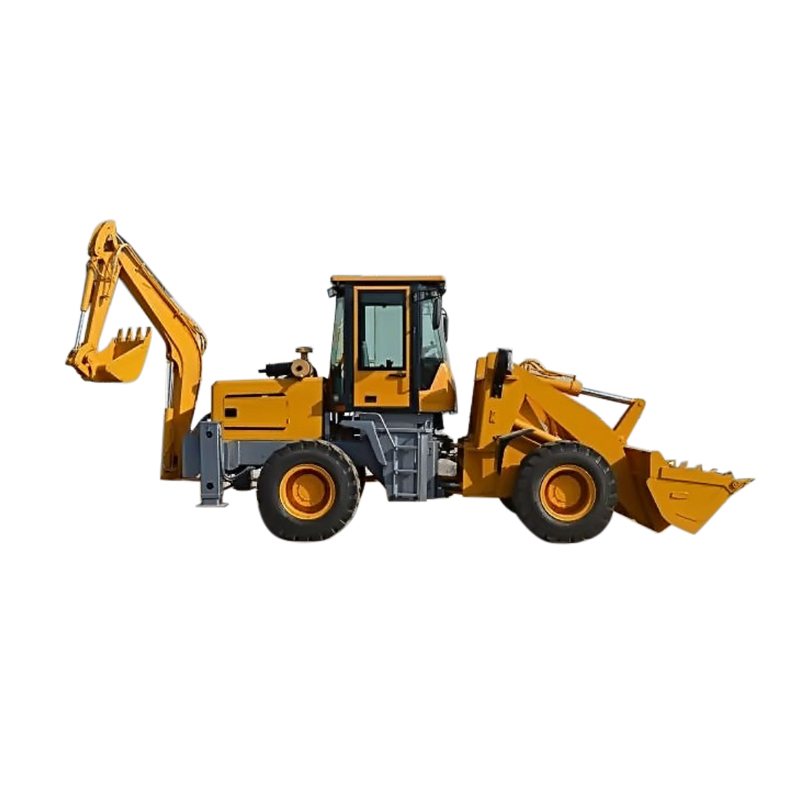

Model:HT20-28

DIMENSION

ENGINE

Overall size(mm)

6200*1960*2800

Engine Model

YUNNEI YN38GBZ

Wheel base(mm)

2550

Type

Four-Stroke

Wheel tread(mm)

1580

Rated Power(KW)

76

Min. Ground Clearance(mm)

290

Rated Rotary speed(r/min)

2400

PERFORMANCE PARAMETER

Cylinders - inner diameter

3-90(4-90)

Pressure of the system(MPa)

18

DRIVE SYSTEM

Machine weight(Kg)

5400

Gearbox

Fixed shaft power shift

Max. speed(Km/h)

28

Optional Gears

Front 2 rear2

Max Climb Capability(°)

25

Hydraulic torque converter

ZL29A

Min. turning radius(mm)

4500

EPS

DIGGING PARAMETER

type

Articulated full hydraulic steering

Max. Digging depth(mm)

2600

Steering angle(°)

33

Dumping Height(mm)

2300

BRIDGE

Max. Digging Radius(mm)

4600

TYPE

Wheel edge deceleration

Budcket width(mm)

600

TYRE

Bucket capacity(m3 )

0.2

size

16/70-20

Max. Digging height(mm)

4300

Front wheel pressure(KPa)

250

Max. force(KN)

28

Back wheel pressure(KPa)

250

DiggingRotary angle (°)

180

service brake

Oil brake drum brake

LOADER PARAMETER

Parking brake

manual

Max.unloading height(mm)

3500

FUEL

Max. Unloading distance(mm)

900

Fuel tank(L)

50

Loading bucket width(mm)

2100

Hydraulic oil tank(L)

50

Loading bucket width(m3 )

1

OTHERS

Max.Loading Lifting Capacity(mm)

4300

Driving type

4*4 wheel

Maximum rising power(KN)

42

Variable speed type

hydraulic transmission

Loading bucket working time(s)

12

Brake distance(mm)

600
