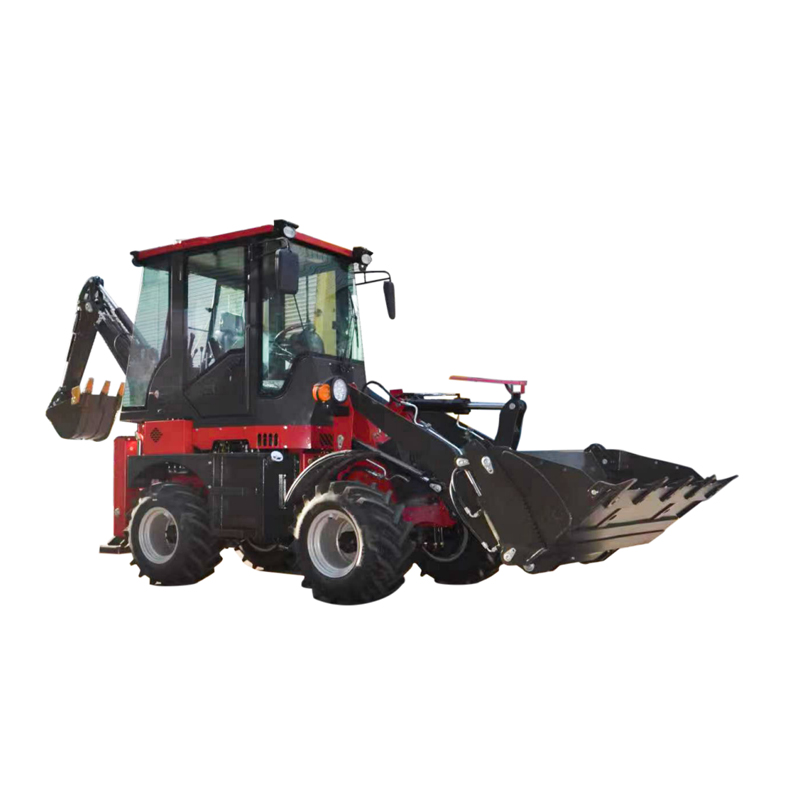

Model:HT15-10

Max.Excavating Depth

2000mm

Max.Excavating Height

5800mm

Max.Excavating Radius

3200mm

Backhoe Bucket Capacity

0.1m³

Front Bucket Capacity

0.6m³

Max. Hauling Force

23KN

Max. Swing Angle of Boom

180°

Max.Dumping Height

2380mm

Min. Turning Radius

3750mm

Max.Dumping Distance

1000mm

Ground Clearance

230mm

Loading Mass

1100kg

Drive

4 Wheel Drive

Grade ability

25°

Lifting Time of Movable Arm

4.5s

Falling Time of Movable Arm

3s

Summational Time

10s

Max. Breakout Force

20kn

Engine Brand Model

Yunnei engine（Standard)

Number of Cylinder

4 Cylinder

Electric System Voltage

24V

Rated Power

37kw（50HP）

Rated Revolution

2400r/min

Tyre Model

20.5/70-16

Maximum Forward Speed

28km/ hour

Working Pressure

20MPa

Total Weight

3600kg

Axle track

1975mm

Wheelbase

1100mm

Overall Dimension(L×W×H)

5900×1860×2960mm
