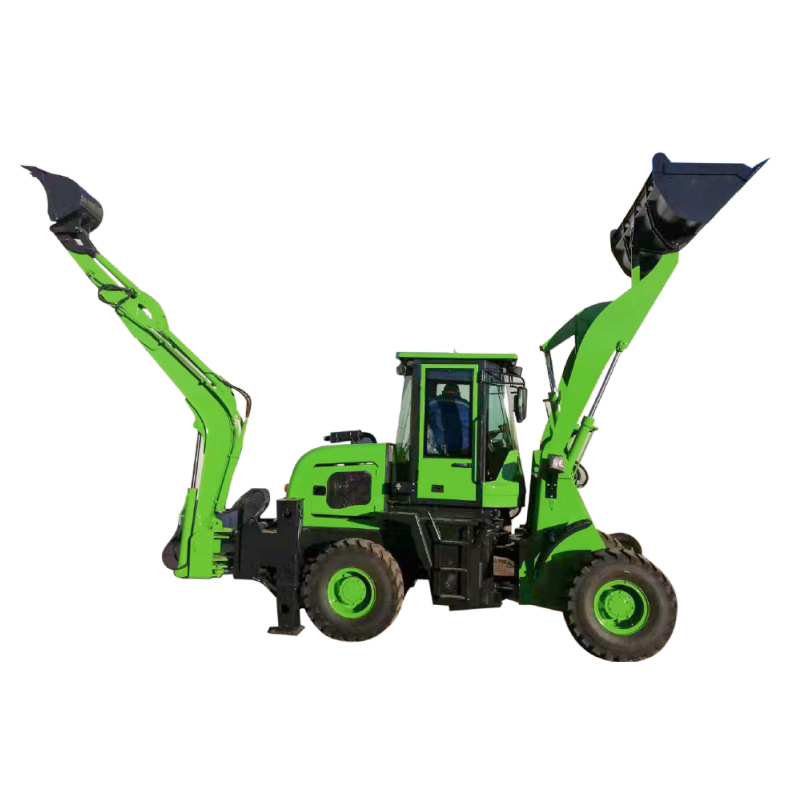

HT10-20 Backhoe Loader
|
Model:HTHT10-20 |
|||
|
DIMENSION |
ENGINE |
||
|
Overall size(mm) |
5500*1750*2650 |
Engine Model |
YUNNEI YN25GB |
|
Wheel base(mm) |
2070 |
Type |
Four-Stroke |
|
Wheel tread(mm) |
1475 |
Rated Power(KW) |
37 |
|
Min. Ground Clearance(mm) |
250 |
Rated Rotary speed(r/min) |
2400 |
|
PERFORMANCE PARAMETER |
Cylinders - inner diameter |
3-90(4-90) |
|
|
Pressure of the system(MPa) |
16 |
DRIVE SYSTEM |
|
|
Machine weight(Kg) |
3400 |
Gearbox |
Fixed shaft power shift |
|
Max. speed(Km/h) |
25 |
Optional Gears |
Front 2 rear2 |
|
Max Climb Capability(°) |
25 |
Hydraulic torque converter |
ZL28F |
|
Min. turning radius(mm) |
3500 |
EPS |
|
|
DIGGING PARAMETER |
type |
Articulated full hydraulic steering |
|
|
Max. Digging depth(mm) |
2000 |
Steering angle(°) |
33 |
|
Dumping Height(mm) |
1800 |
BRIDGE |
|
|
Max. Digging Radius(mm) |
2700 |
TYPE |
130 |
|
Budcket width(mm) |
400 |
TYRE |
|
|
Bucket capacity(m3 ) |
0.1 |
size |
20.5-16 |
|
Max. Digging height(mm) |
2600 |
Front wheel pressure(KPa) |
250 |
|
Max. force(KN) |
25 |
Back wheel pressure(KPa) |
250 |
|
DiggingRotary angle (°) |
180 |
service brake |
Oil brake drum brake |
|
LOADER PARAMETER |
Parking brake |
manual |
|
|
Max.unloading height(mm) |
2800 |
FUEL |
|
|
Max. Unloading distance(mm) |
800 |
Fuel tank(L) |
30 |
|
Loading bucket width(mm) |
1800 |
Hydraulic oil tank(L) |
30 |
|
Loading bucket width(m3 ) |
0.5 |
OTHERS |
|
|
Max.Loading Lifting Capacity(mm) |
3300 |
Driving type |
4*4 wheel |
|
Maximum rising power(KN) |
36 |
Variable speed type |
hydraulic transmission |
|
Loading bucket working time(s) |
12 |
Brake distance(mm) |
330 |
