HT-R type battery pallet stacker

battery pallet stacker

HT-R type battery pallet stacker Description

HT-R type battery pallet stacker Parameter

Driving


Electr c

Driving mode(manual, walking.standing.siting.picking)


Standing

Rated load

Q(kg)

1500/2000

Load center distance

(mm)

500

Front overhang

(mm)

812

Wheelbase

Xmm)

1400

Weight(with battery)

kg

1500

Wheels(rubber high elastomer, air tire,polyurethane)


polyurethane

Wheel size.front


o250x75

Wheel size, rear


中80x70

Add i ional wheels(size)


115x55

Wheels, number of front and rear(x=drivewheels)


1X+2/4

Front Wheelbase

bao(mm)

800

Rear wheelbase

ba(mm)

525

Lifting height

h(mm)

2500/3000/3500/4500/5250/6000

Minimum/maximum height of operating handlein drive position

he(mm)

1023/1382

Height when lowered

hs(mm)

90

Overall length

4(mm)

2440

Mast closing height

H(mm)

1820/2070/2320/2070/2310/2560

Mast max.height

H(mm)

2950/3450/3950/4950/5700/6450

Fork face length

4(mm)

852

Body wi dt

b(mm)

1020

Fork size

S/e/l(mm)

70x160x1150

Fork outer width

b(mm)

685

Ground clearance at center of wheelbase

m(mm)

30

Aisle wi dt, pallet 800x 1200( 800 across theforks)

A.(mm)

2250

Aisle width, pallet 1000x 1200( 1000 alongforks)

A.(mm)

2200

Turning radius

W(mm)

1675

Travel speed, full no load

Km/h

5/5.2

Lif ing speed, full/no load

m/s

0.10/0.12

Lowering speed, loaded unloaded

m/s

0.10/0.0.09

Climbing capacity, loaded/unloaded

%

5/10

Traveling brake


electromagnetic brake

Drive motor power

kW

2.2

Lift ng motor power

kw

3.0

Battery volta grated capacity

V/Ah

48/85(24/210)

Battery weight

Kg

100/210

Battery dimensions(LXWXH)

mm

790x208x610

Driver'scar noise level according to DIN 12053

dB(A)

70

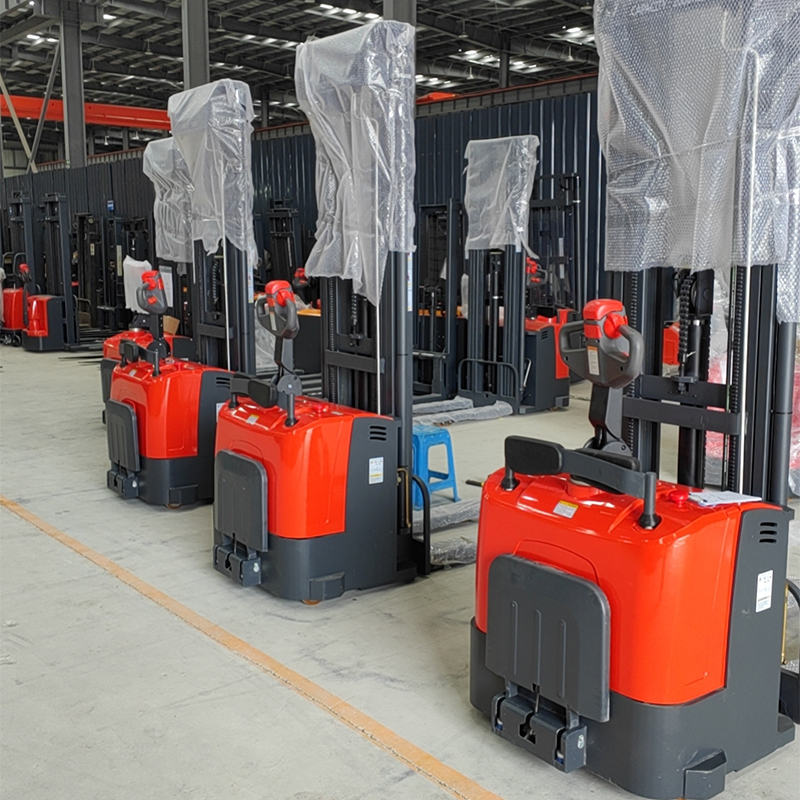

HT-R type battery pallet stacker Images
