HT-10BZ Mini Excavator

HT-10BZ Mini Excavator

HT-10BZ Mini Excavator Description

HT-10BZ Mini Excavator Parameter

Model:HT10BZ

Weight

1000kg

Platform back turning radius

784 mm

Digging bucket capacity

0.025cbm/120kg

Chassis width

896 mm

Bucket width

380mm

Track width

180 mm

Engine

B&S Gasoline engine/Koop

Chassis ground clearance

132 mm

Rated power

10.1kw/7kw

Track height

320 mm

Displacement

0.211 L

Max. Digging depth

1750 mm

Bore stroke

70x55

Max. Vertical digging depth

1550 mm

Displacement

6.8ml/r

Max. Digging height

2610 mm

Travel speed

1.5km/h

Max. Dumping height

1850 mm

Overall dimension( LxWxH)

2900x900/930x2180 mm

Max. Digging radius on ground

3050 mm

Wheelbase

910 mm

Min. Rotation radius

1330 mm

Total length of track

1230mm

Max. Upgrade height of bulldozer blade

345 mm

Platform ground clearance

380 mm

Max. Digging depth of bulldozer blade

255 mm

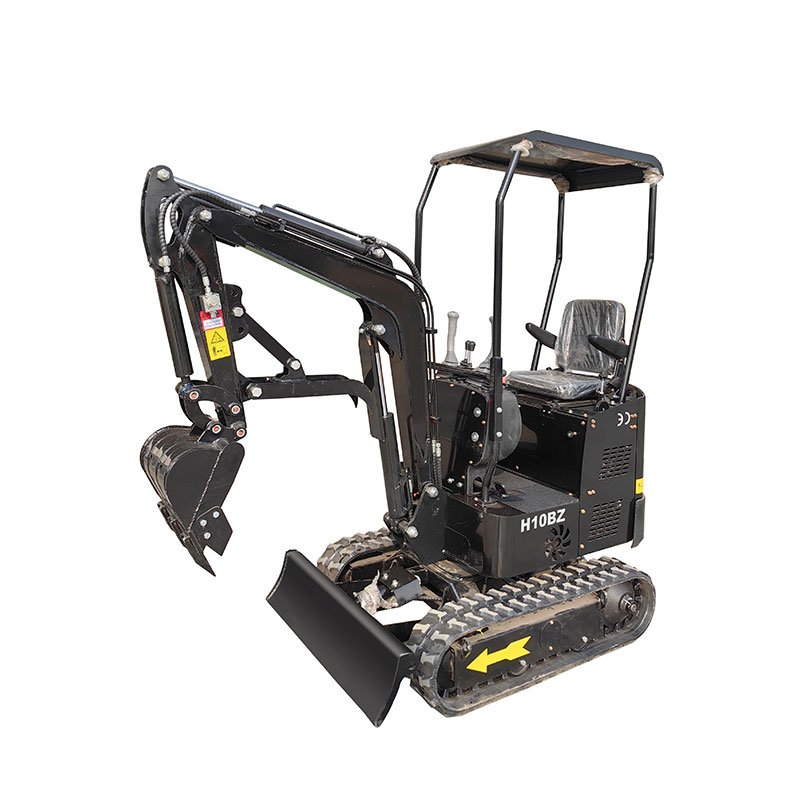

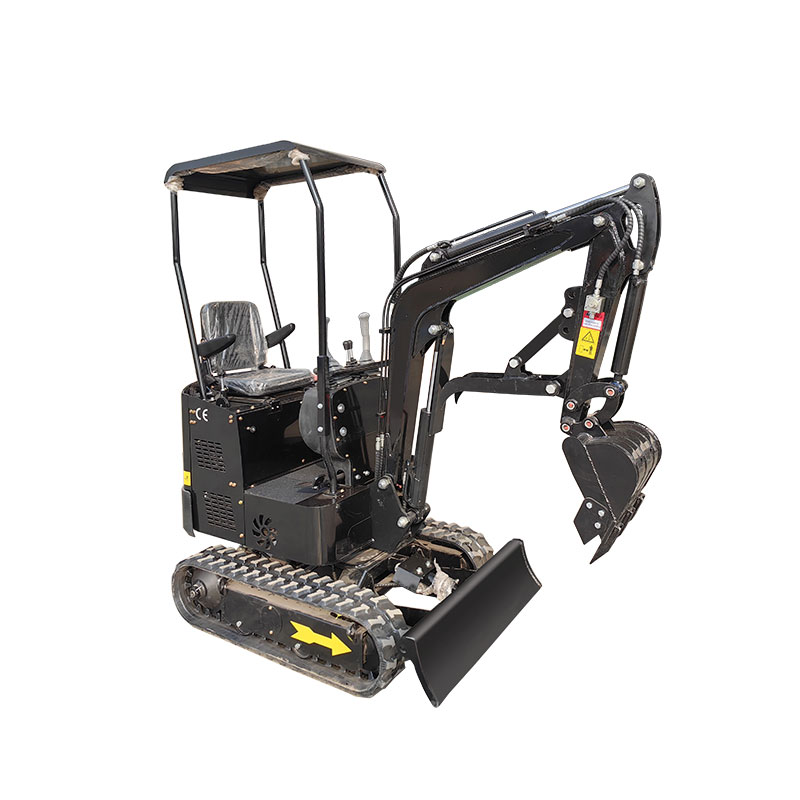

HT-10BZ Mini Excavator Images
