HT10-50 Backhoe Loader

HT10-50 Backhoe Loader Description

HT10-50 Backhoe Loader Parameter

Model		Unit	HT10-50LAIDONG	HT10-50YUNNEI	HT10-50 KUBOTA
Performance Parameters
Dead-Weight		kg	2550	2750	2550
Canopy/Cabin			Canopy	Canopy	Canopy
Bucket	Capacity	m3	0.04	0.04	0.04
	Width	mm	400	400	400
	Max. digging force	kN	13	13	13
Arm digging force		kN	4.5	4.5	4.5
basket	Bucket capacity	m3	0.5	0.5	0.5
basket	Bucket width	mm	1700	1700	1700
Engine	Brand/Model		Lai Dong385	Yunnei490	KUBOTA 1703
	Rated power/speed	kW/rpm	22.1/2300	37/2200	18.2/2200
	Displacement	lt	1.617	2.7	1.7
Main Pump	Brand		Tianjin TAITE	Tianjin TAITE	Tianjin TAITE
	Pump type		T20/20	T25/16	T16/16
	Flow rate	lt/min	40/40	50/32	32/32
	Traveling motor	cc	160	TC	160
Running speed (high/low)		km/h	13/4	13	13/4
Pressure of the system		Mpa	16.5	16.5	16.5
Max. traction		kN	15	15	15
Ground pressure		kPa	110	110	110
Gradeability		°	25	25	25
Fuel tank capacity		lt	50	50	50
Hydraulic oil tank capacity		lt	50	50	50
Transmission System
Gearbox			Fixed axle power shift
Gears			Four Gears Ahead, Four Gears Astern
Driving form			Four-wheel drive
Scope of Work
Bucket Working Range	Max. digging height	mm	3000	3200	3000
	Max. dumping height	mm	2000	2000	2000
	Max. digging depth	mm	1650	1650	1650
	Max. vertical digging depth	mm	1650	1650	1650
	Max. digging radius	mm	2900	2900	2900
Bucket Working Range	Maximum dumping height	mm	2200	2200	2200
	Loading and lifting capacity	kg	800	800	800
	Maximum Rising Power	KN	25	25	25
Outline Dimensions
Overall Dimension (LxWxH)		mm	4400X1670X2400	4750X1670X2530	4400X1670X2450
Wheel tread		mm	1130	1130	1130
Wheel base		mm	1780	1780	1780
Chassis ground clearance		mm	230	240	230
Tyre
Model		mm	10-16.5	12-16.5	10-16.5
Pressure of Front wheel		Mpa	2.5	2.5	2.5
Pressure of Back wheel		Mpa	2.5	2.5	2.5

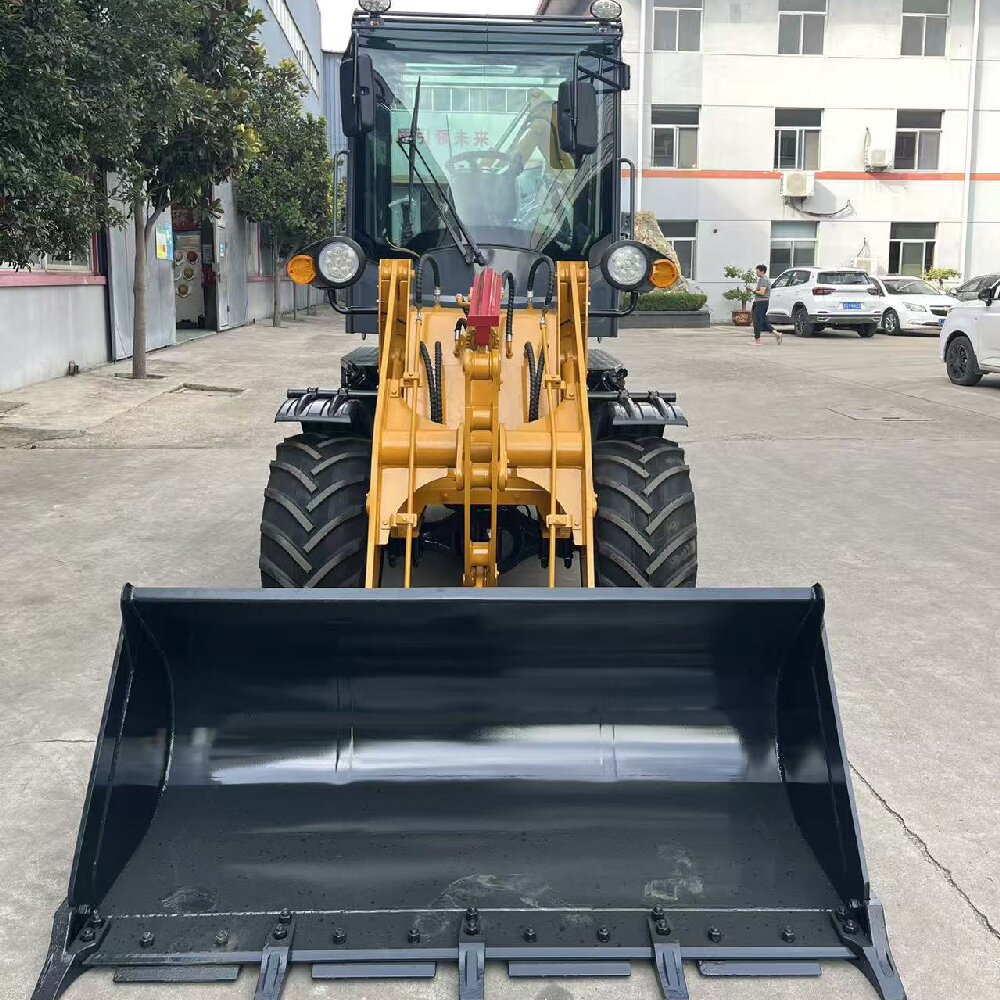

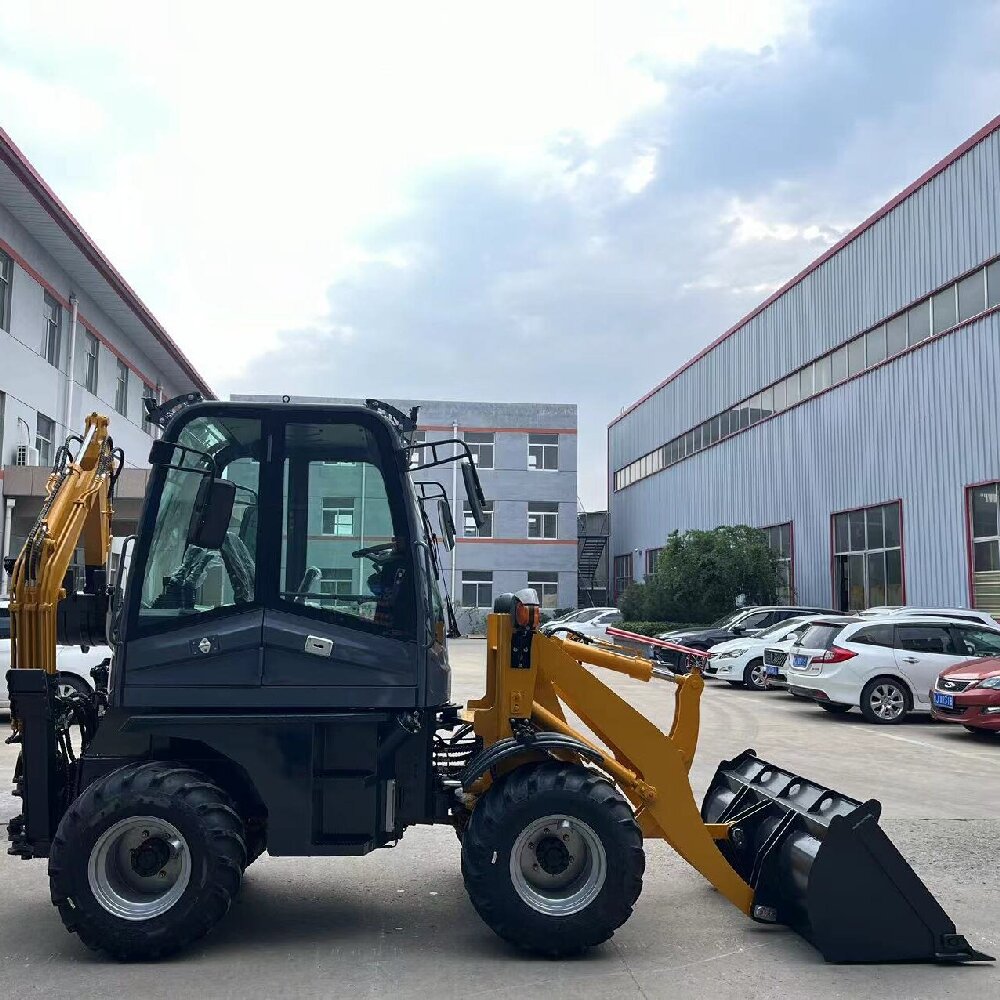

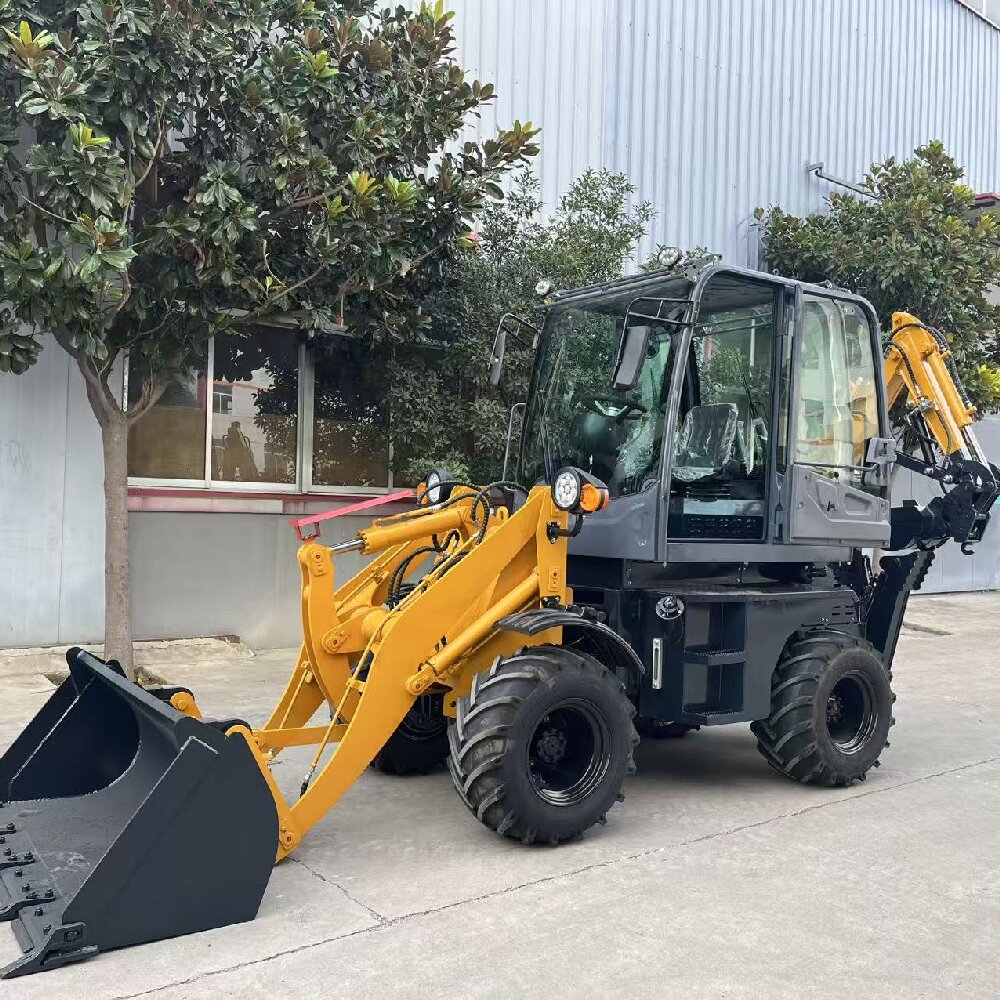

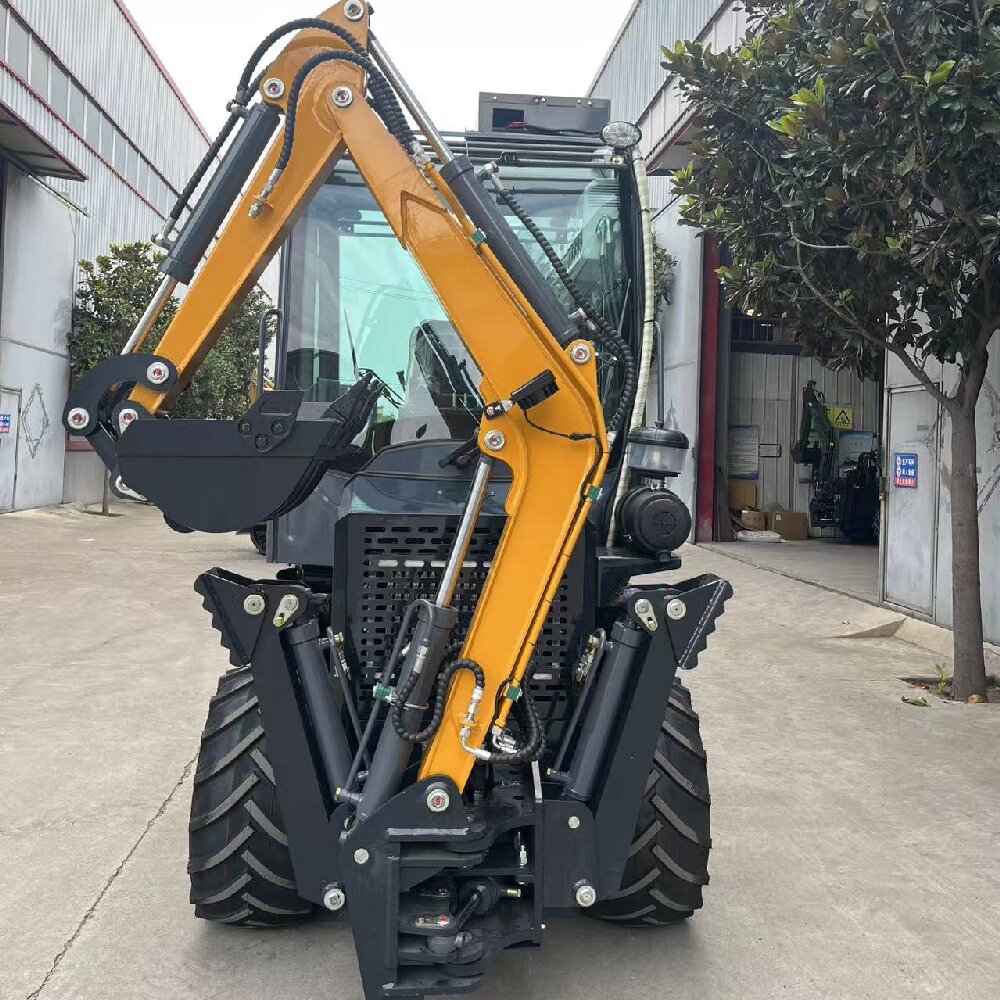

HT10-50 Backhoe Loader Images

The above parameters are subject to change without notice! To get the latest information, or have product customization needs, please contact customer service staff: Ask a question and get a quote
