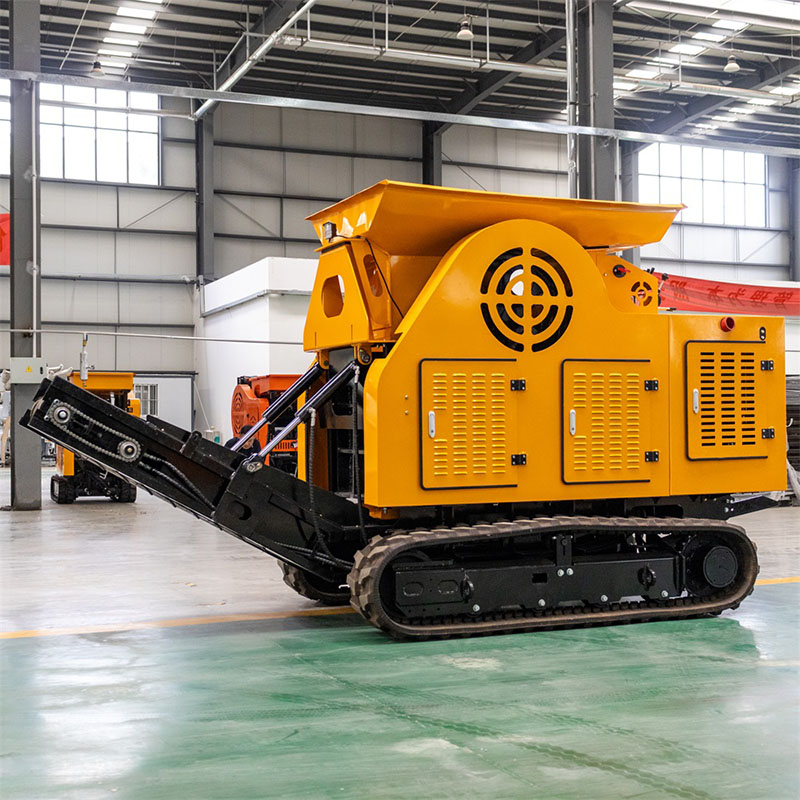

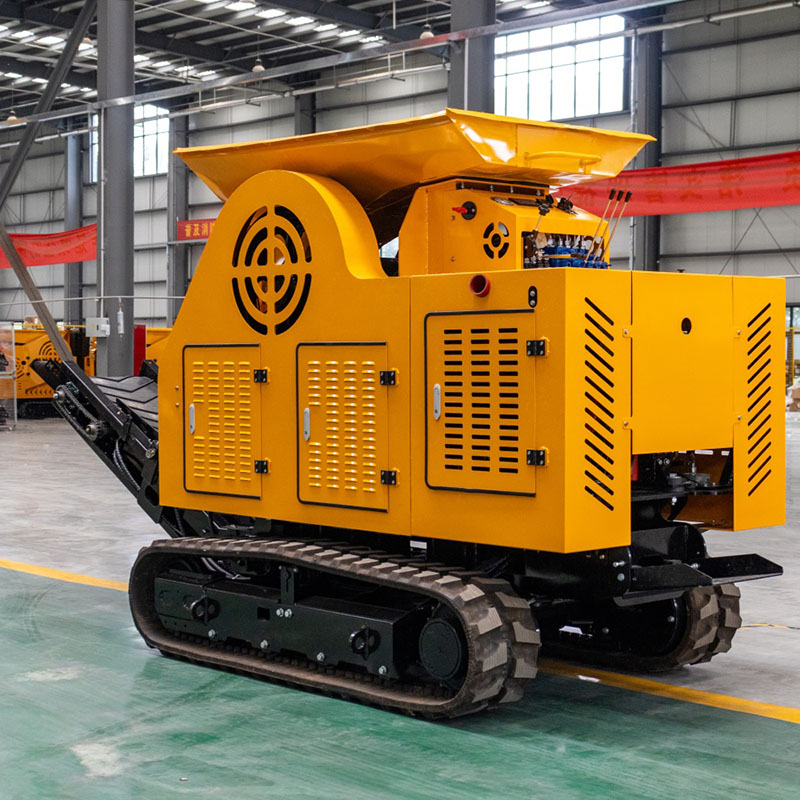

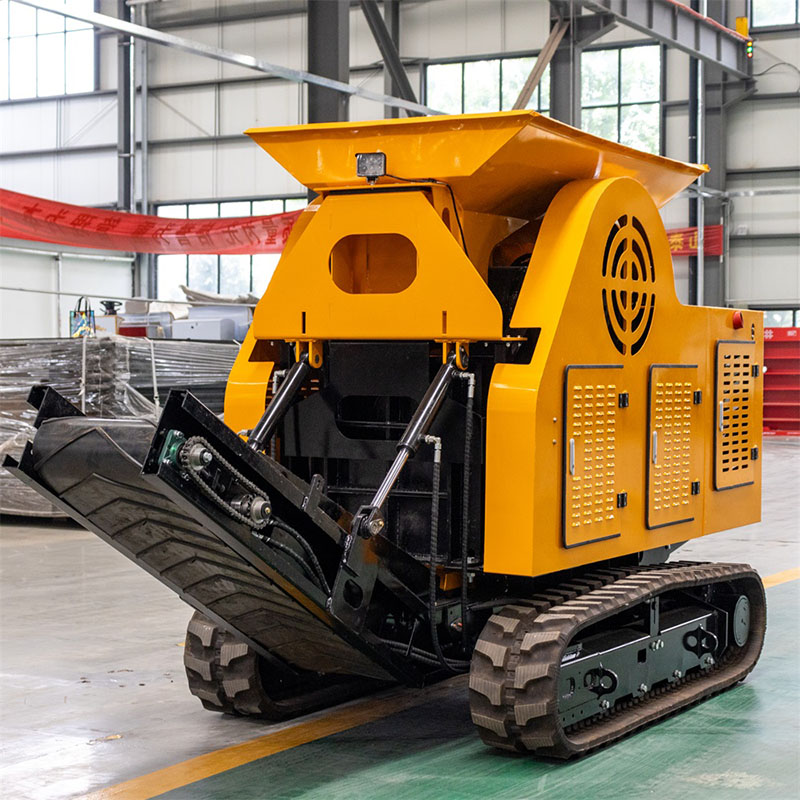

The HTJC510 Crawler Jaw Crusher is a crawler-mounted jaw crusher suitable for a variety of crushing applications. Featuring the flexibility of a crawler design and the stability of a jaw crushing mechanism, it meets the material crushing needs of diverse scenarios such as mining, construction waste processing, and road construction.
In terms of operational performance, the HTJC510 Crawler Jaw Crusher is equipped with a professional jaw crushing mechanism, capable of effectively crushing materials such as ore, concrete blocks, and construction waste. It produces uniform particle sizes and can adjust the output specifications according to actual requirements, making it suitable for subsequent processing or reuse. Its crawler-type walking system allows it to move independently without additional traction equipment, demonstrating strong adaptability to complex terrains. It can flexibly access work sites, reducing costs and time consumption associated with material transportation.
In terms of power configuration, the equipment is equipped with a stable engine, providing continuous power support for crushing operations and crawler movement. It also balances energy consumption and environmental requirements, complying with relevant operational standards and suitable for use in various environments.
In terms of structural design, the HTJC510 Crawler Jaw Crusher adopts an integrated layout with a compact structure, facilitating relocation and parking. The crushing chamber is designed reasonably to enhance material throughput efficiency and reduce the occurrence of blockages. In terms of operation, it is equipped with a user-friendly control system, allowing operators to intuitively monitor the equipment's operational status and adjust working parameters in a timely manner to ensure continuous crushing operations.
Whether it is primary crushing at mining sites, waste material processing at construction demolition sites, or aggregate processing in road engineering projects, the HTJC510 Crawler Jaw Crusher leverages its mobile flexibility and high-efficiency crushing capabilities to provide practical solutions for material crushing operations.
| HTJC510 Crawler Jaw Crusher Model | |
| 1、 Equipment parameters | |
| Working size (mm): | 4050*1450*2050 |
| Inner width of vertical board (mm) | 400 |
| Transport size (mm): | 2750*1450*2050 |
| Total outer width of the protective cover (mm): | 1250 |
| Track model (mm): | 300*86*52.5 |
| Inlet size (mm): | 250*400 |
| Maximum feed size (mm): | 230*380 |
| Storage bin volume (m3): | 0.4 |
| Stacking height (mm): | 950-1000 |
| Gravel range (mm): | φ20-60 |
| Walking speed (km/h): | 0-4 |
| Track specifications: | rubber track |
| Production capacity (T/h tons/hour): | 5-10T/h |
| Belt width (mm): | 400 |
| 2、 Operation form and main accessory parameters | |
| Equipment operation mode: | Manual hydraulic valve |
| Walking method: | Hydraulic power track type |
| Model of walking motor: | Piston motor FTM03C |
| Hydraulic pump specifications: | Piston pump A10VSO28 |
| E Po Power Drive Method: | Hydraulic plunger motor |
| Drive mode of conveying mechanism: | Hydraulic Cycloid Motor |
| Conveyor lifting method: | Hydraulic cylinder |
| Lubrication method for jaw fracture mechanism: | grease |
| Adjustment method for track tension: | Lubricating grease tightening |
| 3、 Power system | |
| Diesel engine standard configuration: | Laidong 385（欧V） |
| Output power max | 19KW/2350 |
| 4、 Oil type and dosage | |
| Fuel tank capacity/L | 50L |
| Oil volume/L | 4L |
| Hydraulic oil tank capacity/L | 50L 32#/46# Hydraulic oil |
