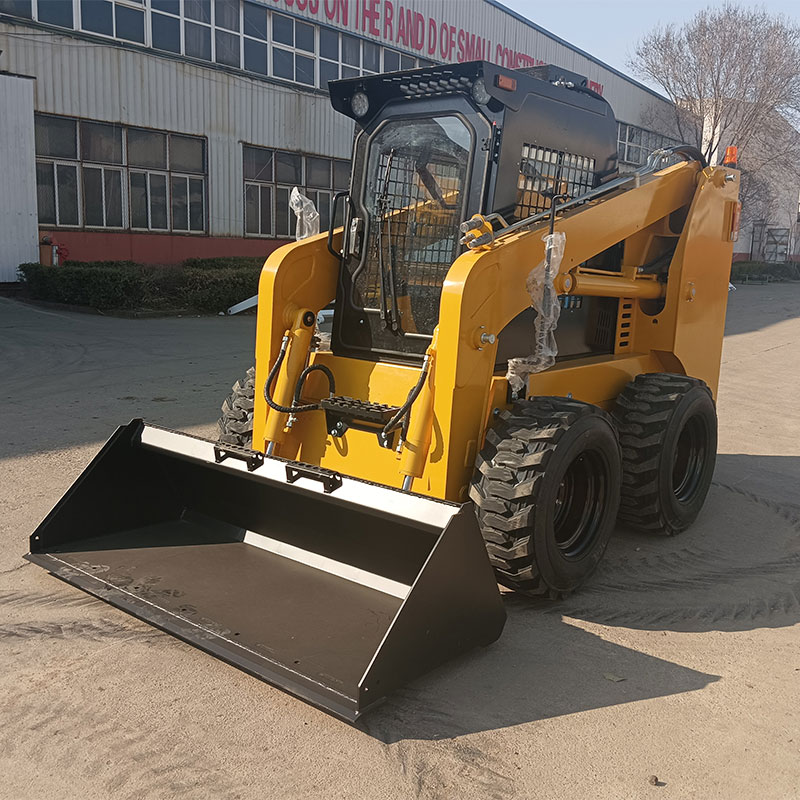

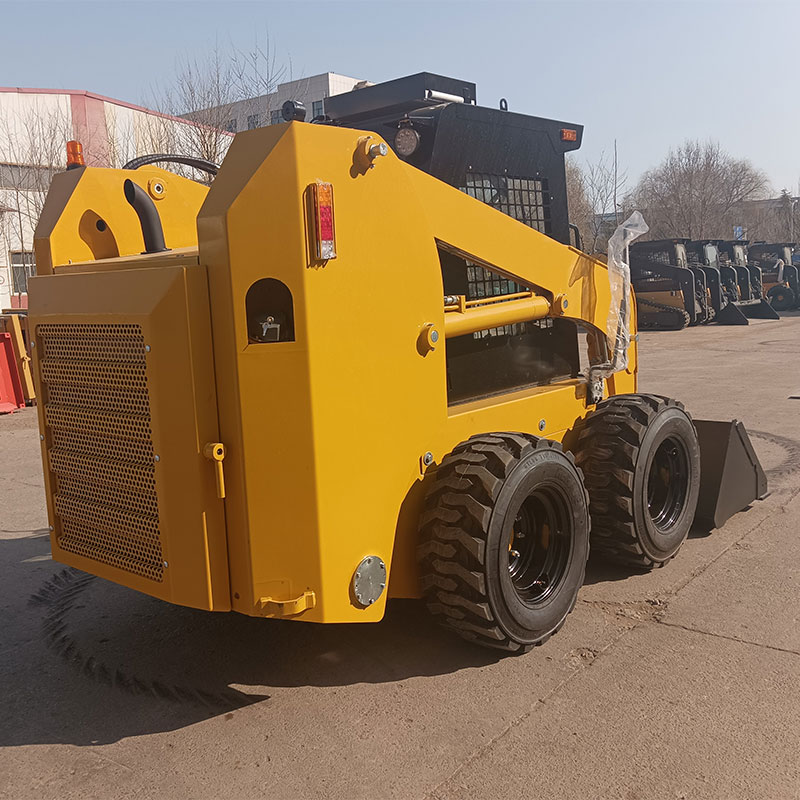

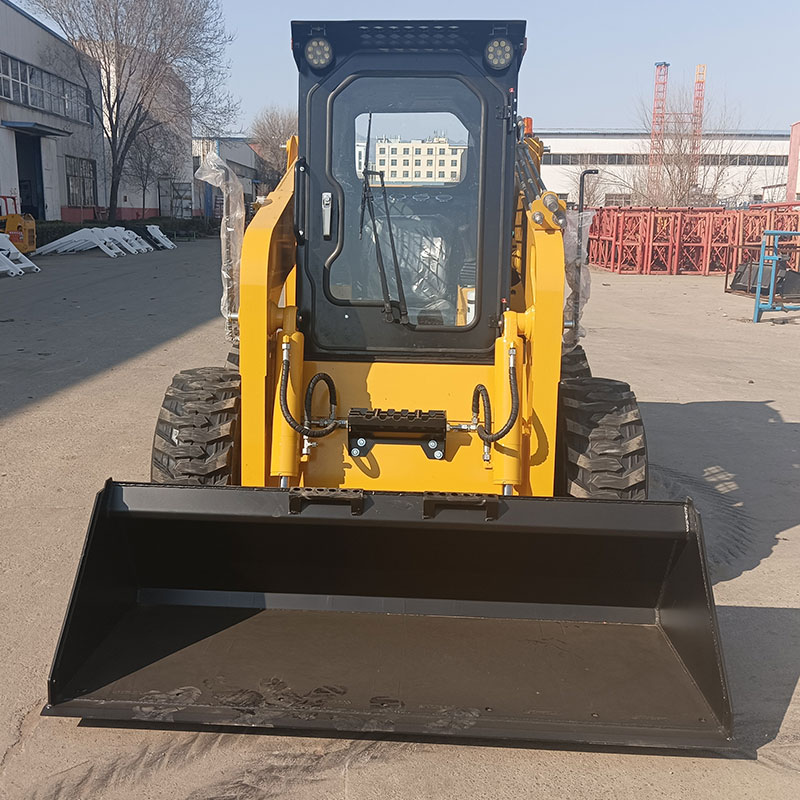

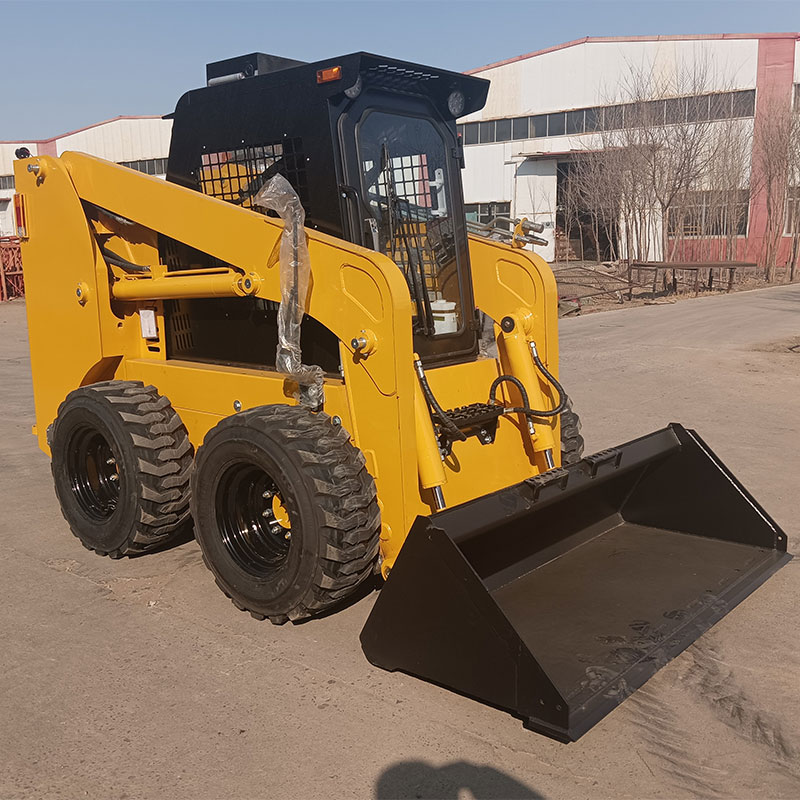

The HTS120 is an engineering machine suitable for a variety of work scenarios. With its stable power and flexible operating performance, it provides efficient solutions for various engineering tasks.
The HTS120 is an engineering machine suitable for a variety of work scenarios. With its stable power and flexible operating performance, it provides efficient solutions for various engineering tasks.
In terms of work performance, the HTS120 performs well. With a working weight of 4,000 kg, a rated load capacity of 1,500 kg, and a bucket capacity of 0.55 m³, it can handle medium to heavy-duty material loading tasks. With a maximum travel speed of 12/18 km/h, it can move between work sites, reducing unnecessary time loss; its maximum traction force exceeds 32 kN, boom lifting force is ≥22 kN, and bucket lifting force is achieved in 7 seconds. During heavy-duty operations, it maintains a stable rhythm, helping to enhance overall operational efficiency.
In terms of engine configuration, the HTS120 is equipped with a Weichai WP4.1 engine, with a rated power of 103 kW/rpm (at 2,300 rpm) and a displacement of 4.088 L, meeting National III emission standards. This power combination provides continuous power output to ensure smooth operation while meeting environmental requirements, enabling compliant operation in various environments.
In terms of dimensions and specifications, the HTS120 is designed with good adaptability. The maximum operating height is 4,290 mm, the bucket pin height is 3,278 mm, and the cab top height is 2,160 mm, providing operators with a spacious working view and comfortable operating space. The overall length without the bucket is 3,023 mm, and with the bucket it is 3,795 mm. The wheelbase is 1,185 mm, with turning radii of 1,278 mm (without the bucket), 2,144 mm (front), and 1,857 mm (rear), enabling it to maneuver flexibly in narrow spaces and handle complex operational environments. Additionally, parameters such as a 2,500 mm unloading height, 700 mm unloading distance, and a maximum unloading angle of 40° enhance operational convenience and precision, meeting diverse unloading requirements.
In applications such as municipal construction, mining, and agricultural production, the HTS120 leverages its comprehensive performance to serve as a reliable assistant for users' operations.
|
|
Model |
HTS120 |
|
Performance |
Operating weight（kg） |
4000 |
|
Rated load（kg） |
1500 |
|
|
Bucket capacity（m³） |
0.55 |
|
|
Max Speed（km/h） |
12/28 |
|
|
Max traction（kN） |
＞32 |
|
|
Max breakout（kN） |
≥22 |
|
|
Lifting time of boom（s） |
7 |
|
|
Engine |
Manufacturer |
Weichai |
|
Model |
WP4.1 |
|
|
Rated power（kW/rpm） |
103/2300 |
|
|
Engine displacement（L） |
4.088 |
|
|
Emission Standard |
National Highway 3 |
|
|
Dimension |
Overall operating height（mm） |
4290 |
|
Height to bucket hinge pin（mm） |
3278 |
|
|
Height to top of cab（mm） |
2160 |
|
|
Height to bottom of level bucket（mm） |
2983 |
|
|
Without bucket length（mm） |
3023 |
|
|
Overall length with bucket（mm） |
3795 |
|
|
Dumping angle at maximum height（°） |
40 |
|
|
Dumping height（mm） |
2500 |
|
|
Dumping reach（mm） |
700 |
|
|
Rollback of bucket on ground（°） |
30 |
|
|
Rollback of bucket at full height（°） |
104 |
|
|
Wheelbase（mm） |
1185 |
|
|
Ground clearance（mm） |
205 |
|
|
Angle of departure（°） |
20 |
|
|
Front turning radius without bucket（mm） |
1278 |
|
|
Front tuning radius（mm） |
2144 |
|
|
Rear tuning radius（mm） |
1857 |
|
|
Rear axle to bumper（mm） |
1082 |
|
|
Tread width（mm） |
1500 |
|
|
Width（mm） |
1880 |
|
|
Bucket width（mm） |
1880 |
