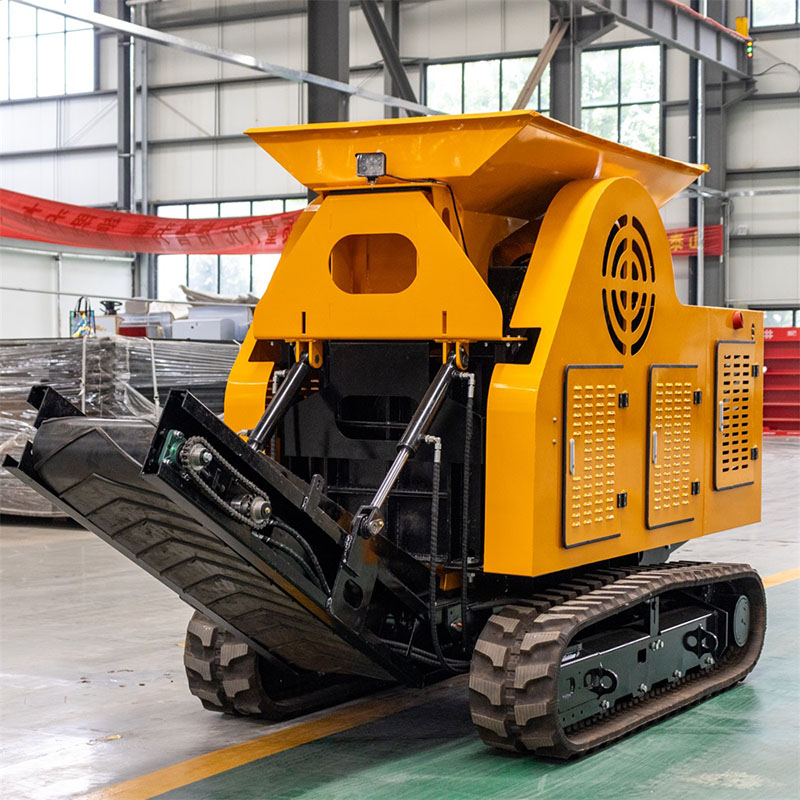

HTJC-430 Crawler Jaw Crusher
1. The power system adopts gasoline engine and diesel engine, and the engine is directly connected to the hydraulic pump, i.e. the whole vehicle is controlled by hydraulic pressure, and the walking is controlled by 18 chassis and 200 wide tracks.
2. Conveyor belt device lifting and lowering using oil cylinder control, discharge clearance from the ground can be controlled
3. Hopper volume 0.4m
4. Standard jaw crusher is used, with standardized fittings.
5. Crushing transmission mode using transmission motor, drive belt drive crusher, control direct manipulation of hydraulic multi-way valve
6. The whole car cover can be opened, easy maintenance.
The working system includes the drive motor to drive the jaw crusher, in the crushing process, a crushing chamber is formed between the movable jaw and the fixed jaw, the material enters into the crushing chamber from the inlet, and it is squeezed and crushed by the movable jaw and the fixed jaw each other. The movable jaw is driven by eccentric shaft to produce reciprocating motion, so that the material in the crushing cavity between the two jaw plates is subject to extrusion, bending and other forces, so as to break the large material into smaller particles, to achieve the effect of stone crushing; after crushing the stone through the conveyor device, the stone material will be transported to the discharge area.
|
Product parameters |
|||
|
Working size(mm): |
3200*1000*1620 |
Vertical plate inner width (mm): |
380 |
|
Shipping size (mm) : |
2100*1000*1750 |
Total outer width of cover (mm) |
960 |
|
Track type (mm): |
180*72*41 |
Bunker volume(m3): |
0.25 |
|
Weight wheel diameter (mm): |
126 |
Stacking height (mm) : |
700-1150 |
|
Number of wheels (groups) : |
6 |
Feeding conveyor(mm) |
1500*500 |
|
Feed port size (mm): |
220*350 |
Gravel range(mm): |
15-50 |
|
Maximum feed size(mm): |
200 |
Travel speed (km/h): |
0-3 |
|
Track specifications: |
Rubber track |
Conveyor belt width (mm): |
400 |
|
Production capacity(T/h tons/hour): |
2T-5T/h |
|
|
|
Dynamic system |
Oil type and dosage |
||
|
Gasoline engine standard |
Rato R500-V2-18HP |
Fuel tank capacity /L |
6.5L |
|
Output power |
13KWV/3600r/min |
Oil volume /L |
1.0L |
|
Tank capacity /l |
6.5 |
Hydraulic tank volume /L |
35L 32#/46 |
|
Operating driving and main accessories parameters |
|||
|
Equipment operation mode |
Manual hydraulic valve |
||
|
Walking mode |
Hydraulically powered track type |
||
|
Travelling motor type |
6K-395 |
||
|
Continuous torque |
850 |
||
|
Hydraulic pump specifications |
PGP5108 |
||
|
Conveyor motor model |
BMER-300 |
||
|
Conveyer lifting mode |
Manual operation of hydraulic lift |
||
|
Lubrication method of jaw breaking mechanism |
grease |
||
|
Track tightening adjustment method |
mechanical |
||
