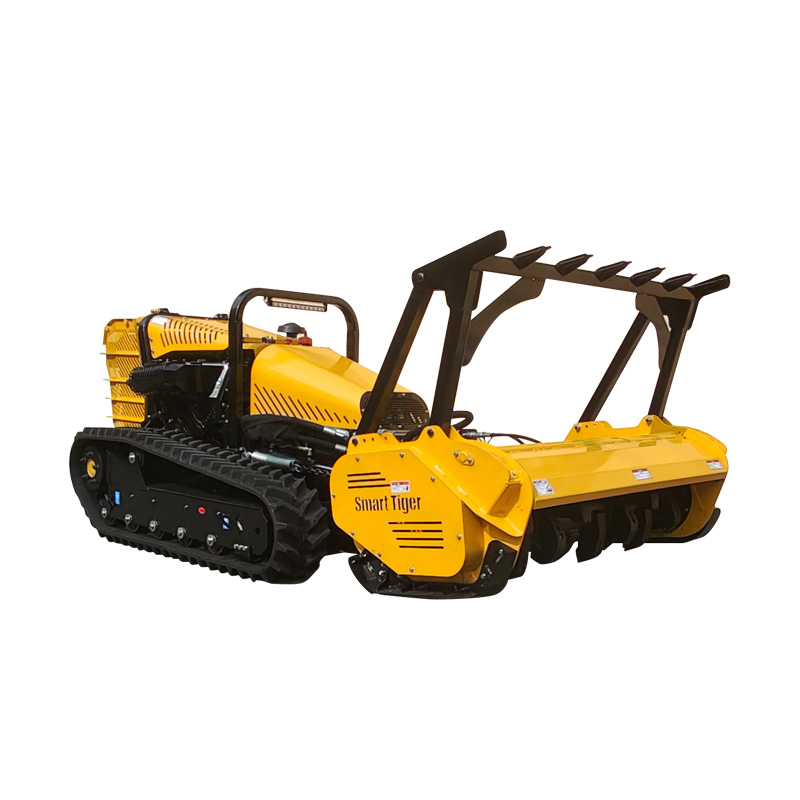

Smartiger 40

ENGINE

Maker

YANMAR /CHANGHAI

Type

4-cycle, Inline, Water-cooled Diesel

Torque

107.7 Nm

Fuel

Diesel

Fuel tank capacity

28 litres

Combustion system

Direct Injection

Gross output

28.2Kw (38.3Hp) @2600rpm

Transmission

Fine control hydrostatic

Water-cooled radiator

2-core heavy duty

Self-cleaning(optional)

Standard manual and

HYDRAULICS

Pumps

3-tandem piston pump

Pumps 1 gear pump (P&G)

Driving motors

High torque motor (Poclain)

Flail head motor

High speed motor (P&G)

Independent flail head circuit

Closed circuit piston

Independent track drive circuit

2× closed circuit piston

Independent motions circuit

Opend circuit gear

Oil tank capacity

23 litres (40 letres held in system)

Attachment capacity

750kg

 TRACKS

Rubber

Hieghtened teeth rubber track (max working angle 55°)

REMOTE CONTROL

Working range

>150m

Frequency

434MHz

Battery

Interchageable, rechargeable Two with each unit charge on machine

Propotional Joysticks

Standard

DIMENSIONS

Overall width (with flail head)

1500mm

Overall width (with flail head)

2900mm

Overall height (with flail head)

1300mm

Smartiger

1250Kg

Flail head

200Kg

PROTECTION AND SAFETY

Emergency stop

One-touch shut-off switch

Over-slope

Automatic waring (Horn+Light) and shut-off

Headlamp

LED

Signal loss

Automatic shut-off

Others

Automatic shut-off if hydraulic oil

and lube pressure abnomaly

PERFORMANCE

Gradient

Working on slopes up to 55° in

any direction(alarm at 50° and

automatic shut-off at 55°)

Potentiometer speed

control (0 to 100%)

Working on slopes up to 55° in

any direction(alarm at 50° and

automatic shut-off at 55°)

Parking

Yes

Steering

Skid-steering (support pivot-steering)

Travelling bias correction on slope

Yes

ATTACHMENT / FLAIL HEAD (STANDARD)

Standard attachment

Flail head

Oil flow

84L/min

Pressure

250bar

Rotor speed

3000rpm

Front and rear flap

Chain and rubber

Flails

Y-Flails for grass cutting and ligh wood up to 30mm diameter

Rotor width

1350mm

Rotor diameter

300mm

Cutting height range (via roller adjustment)

30mm-90mm (3 positions)

flail can be lifted to cut

higher than 90mm

Hydraulic lift

-200mm to 500mm

Auto-float capacity

Yes (follow ground contour up-down 10°)
