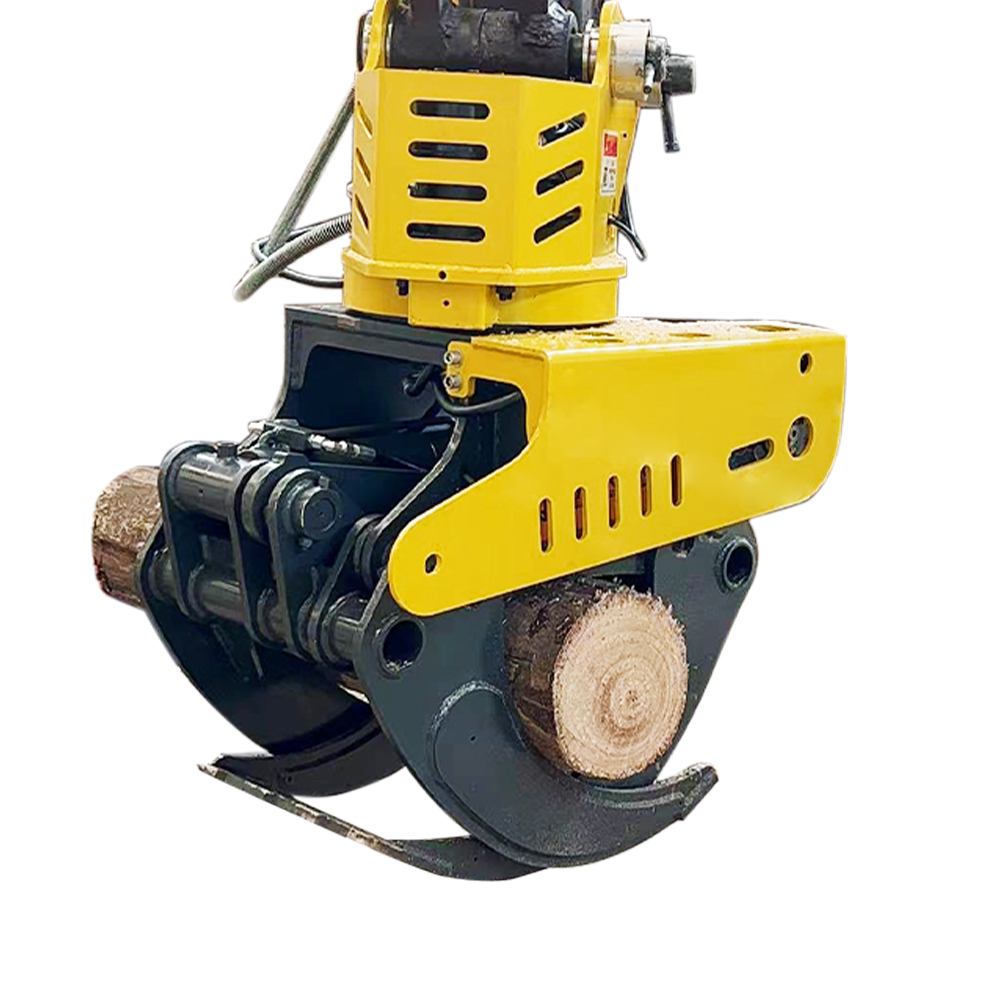

Muitl-Function Clamp Saw
| Model | BJ-600 | BJ-2000 |
| Machine weight | 450kg | 510kg |
| Length*width*height | 830*500*1100(mm) | 900*620*1150(mm) |
| Adapt to excavator tonnage | 6-10ton | 10-20ton |
| Max. working pressure | 21-28Mpa | 21-28Mpa |
| The max. working pressure of the camping cylinder | 21Mpa | 21Mpa |
| Swing motor displacement | 625ML | 625ML |
| Rotationaf speed | 5-20r/min | 5-20r/min |
| Swing motor operating pressure | 16Map | 16Map |
| Max fixture weight | 2-3T | 2-3T |
| Number of camps | 2 | 2 |
| Rotary turntable self-locking function | Have | Have |
| Automatic lubrication | Have | Have |
| Oil tank volume | 3L | 3L |
| Control method | Electric handle control | Electric handle control |
|
Saw Gulde Length |
18 inches 21 inches | 18 inches 21 inches |
