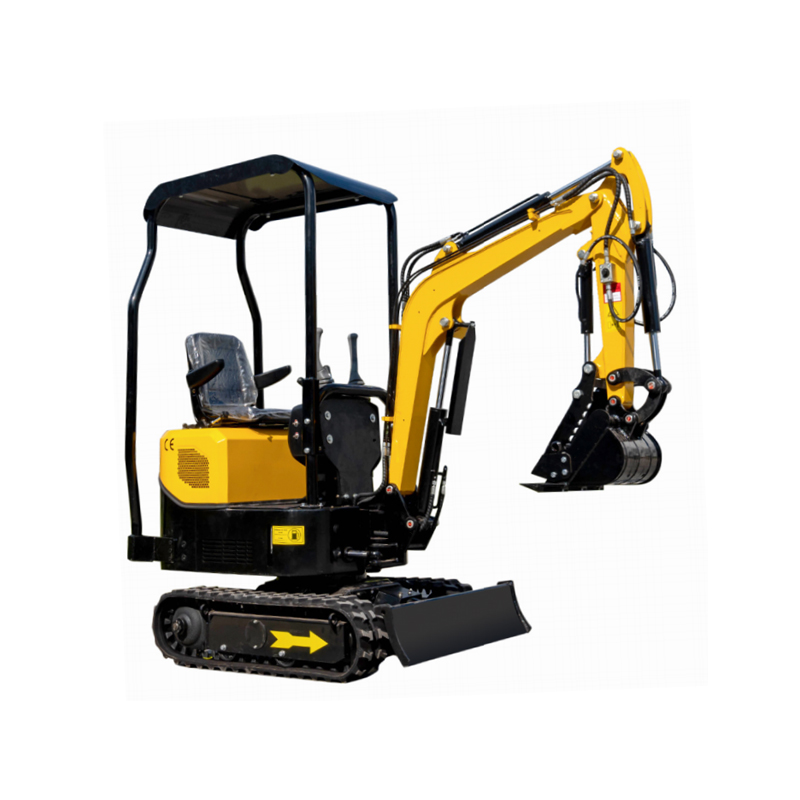

Model

HT10CZ

Weight

1000kg

Digging bucket capacity

0.025cbm/120kg

Bucket width

380mm

Engine

Koop Engine（192F)

Optional Engine

BRIGGS & STRATTON Yanmar Engine

Bore stroke

Single cylinder, fan cool

Rated power

7kw/3000r/min

Main pump

G5-6

Displacement

6.8ml/r

Swing motor

SANYANG (BMRS-250)

Traveling motor

SANYANG (BMT-245)

Travel speed

1.5km/h

Main Demensions

Overall dimension( LxWxH)

2775 x 930 x 2219 mm

Wheelbase

910 mm

Total length of track

1230mm

Platform ground clearance

380 mm

Platform back turning radius

784 mm

Chassis width

896 mm

Track width

180 mm

Chassis ground clearance

132 mm

Track height

320 mm

Main Demensions

Max. Digging depth

17`50 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of bulldozer blade

255 mm
