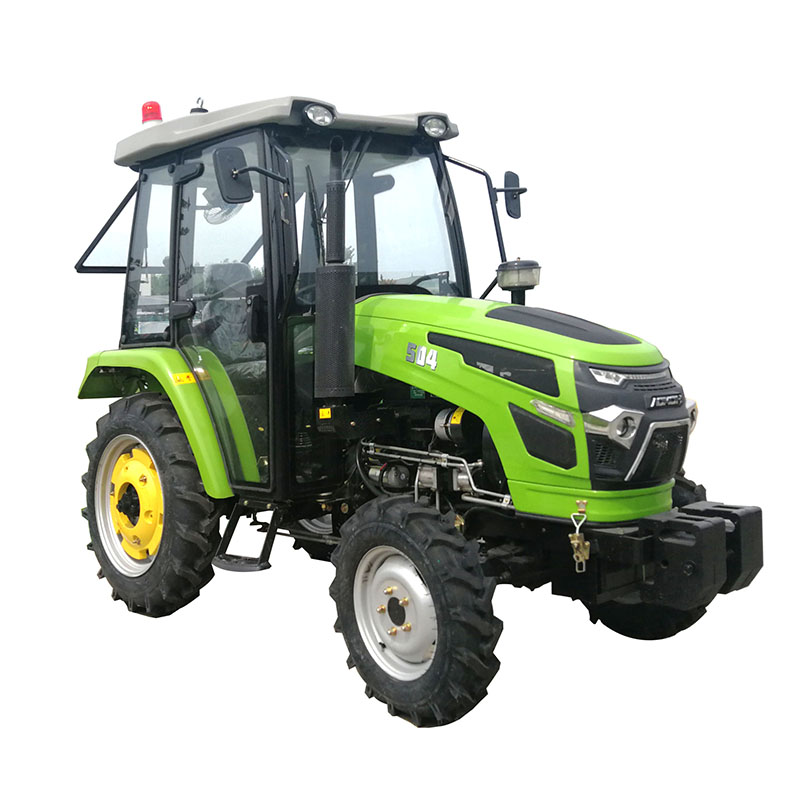

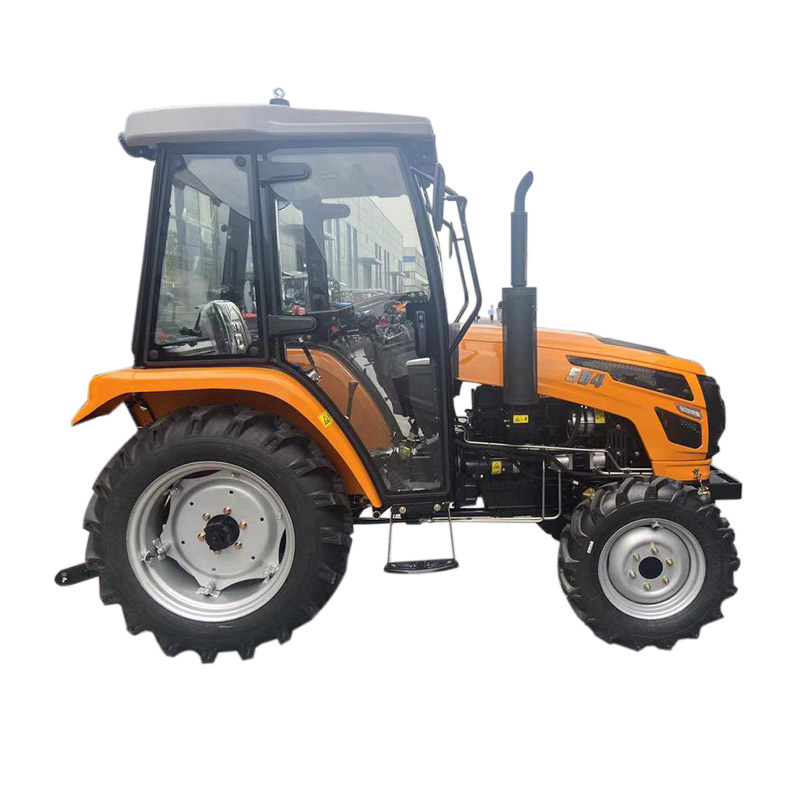

HT504-E

Driven model

4WD

Engine

LAIDONG

Emission Standards

Ⅱ stages

Engine power

50

Clutch

Double-stage type

PTO speed

540/720rpm

PTO spline number

6

Max.rated drawing power

≥11.5KN

weight

1550kg

Steering

hydraulic steering

Gears

8+2

Speed

1.78-26.93
2.41-11.6

Tires size

7.50-16/11.2-28

Wheel Base

1810mm

（L*W*H）mm Overall dimension

3640*1620*2240

选装
Optional equipment

Front ballast

Rear ballast（one layer）

ROPS

Canopy

Gear 8+8

Double-stage type

1 groups of hydraulic output

2 groups of hydraulic output

Air compressor

External Forced lifter

Swing traction

Fan cab

Heating cab

Tires 7.5-16/11.2-28

Iron frame packaging
