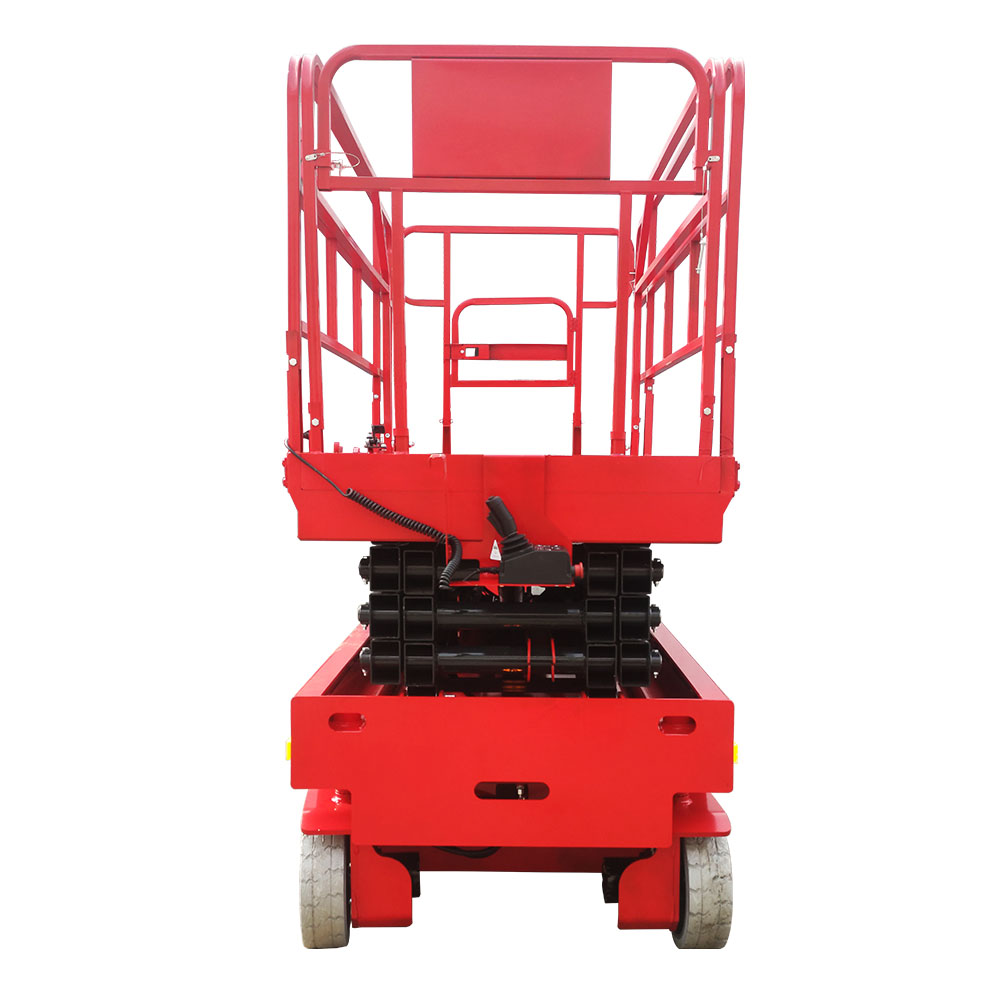

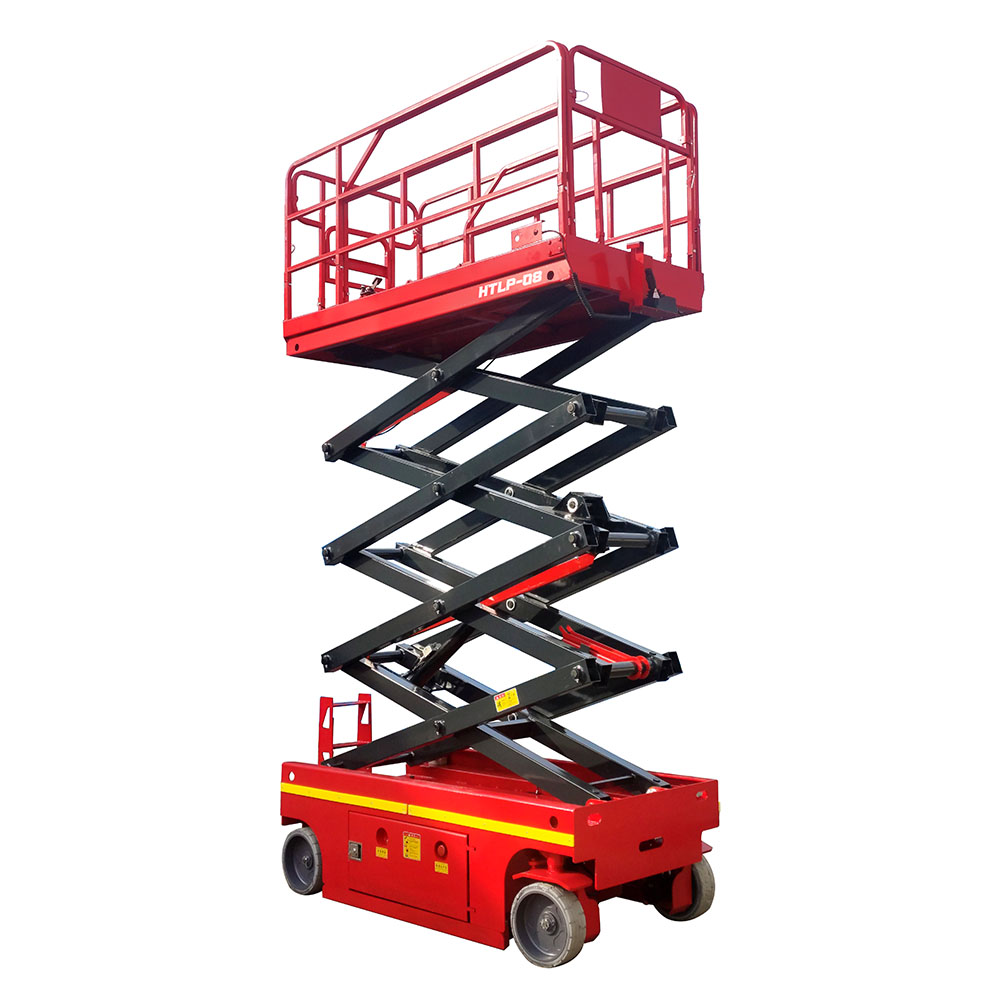

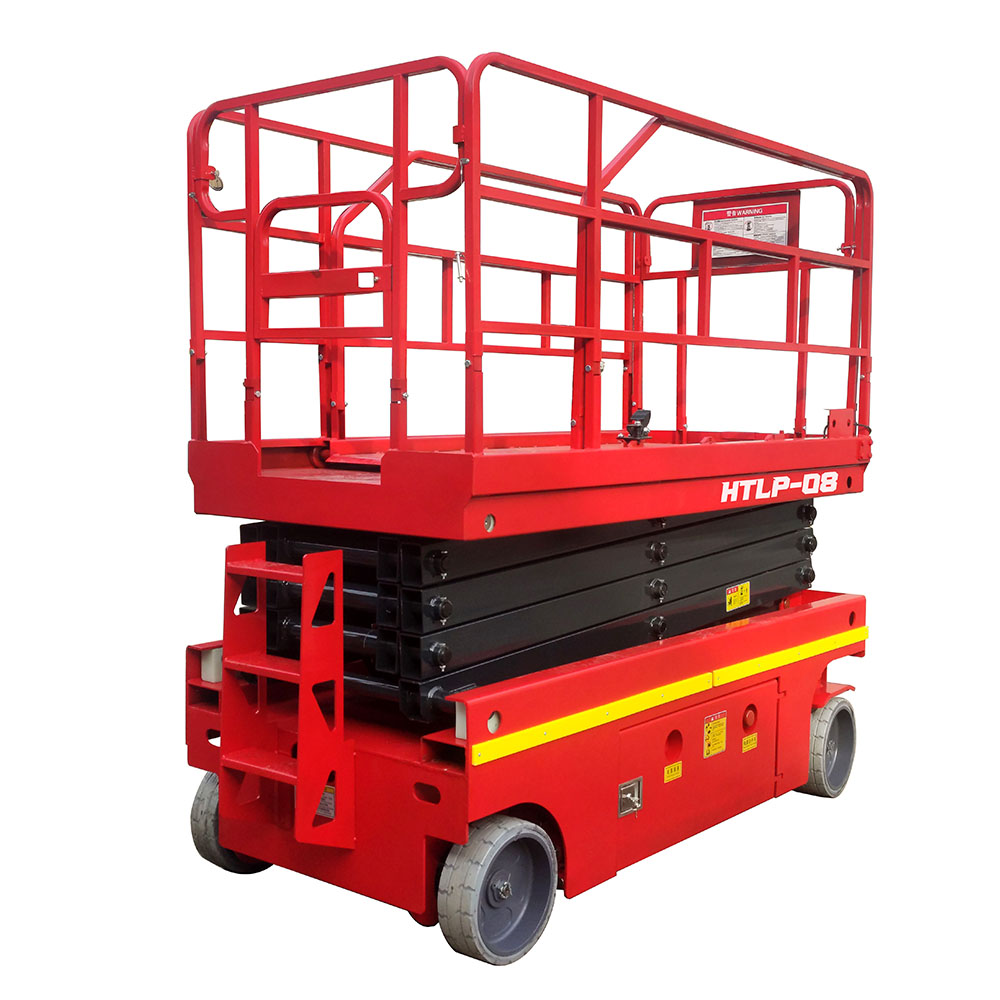

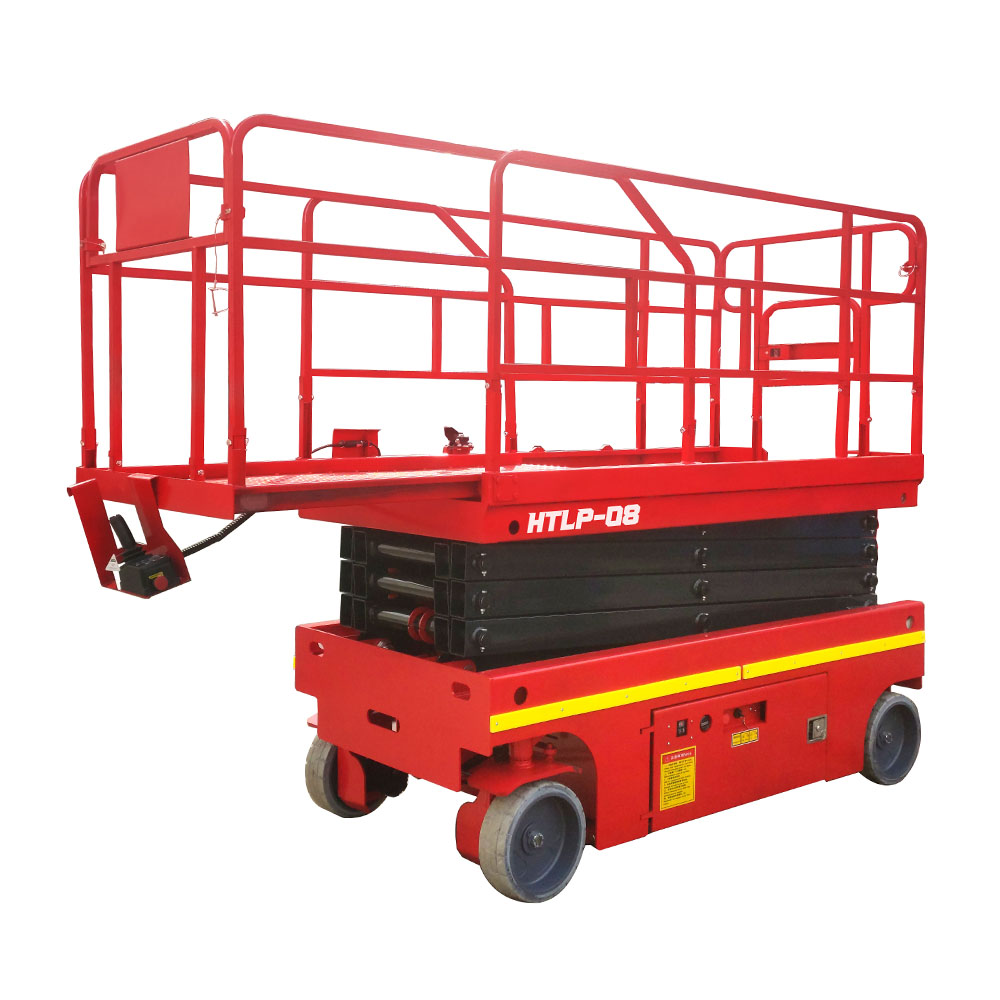

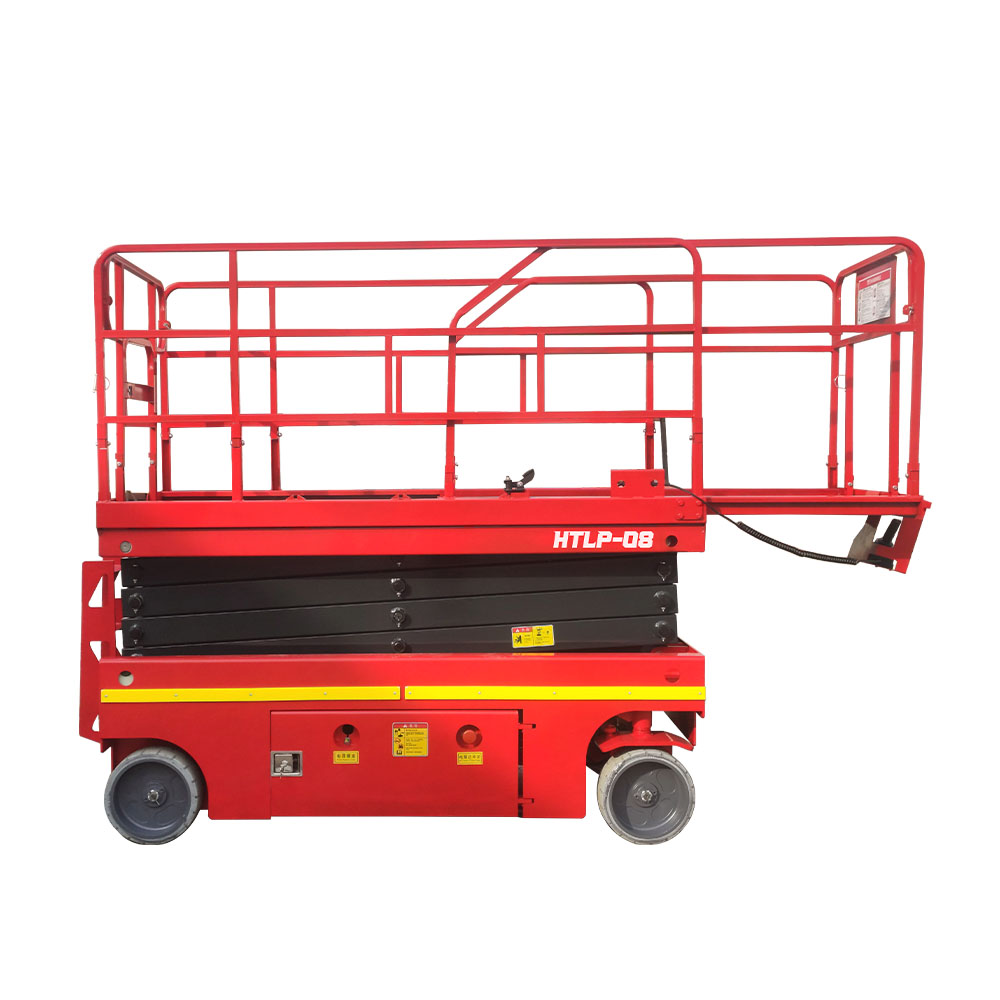

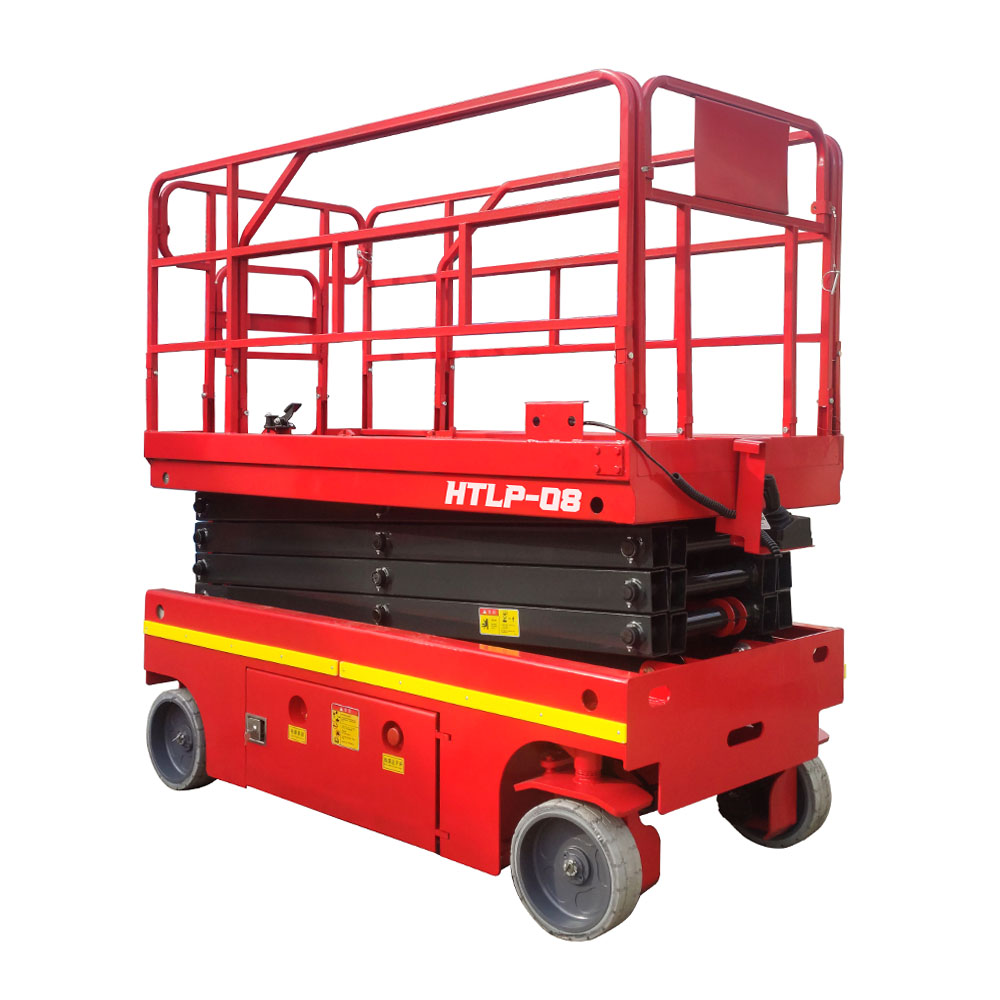

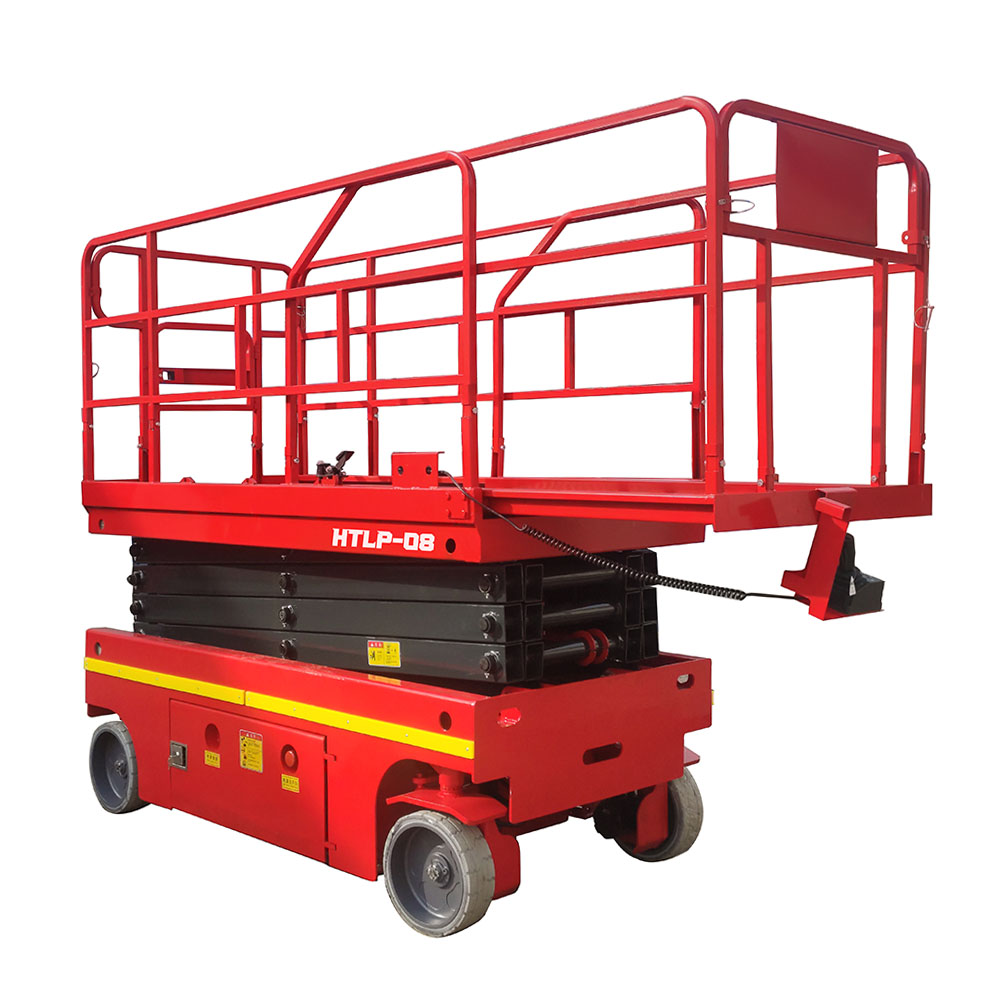

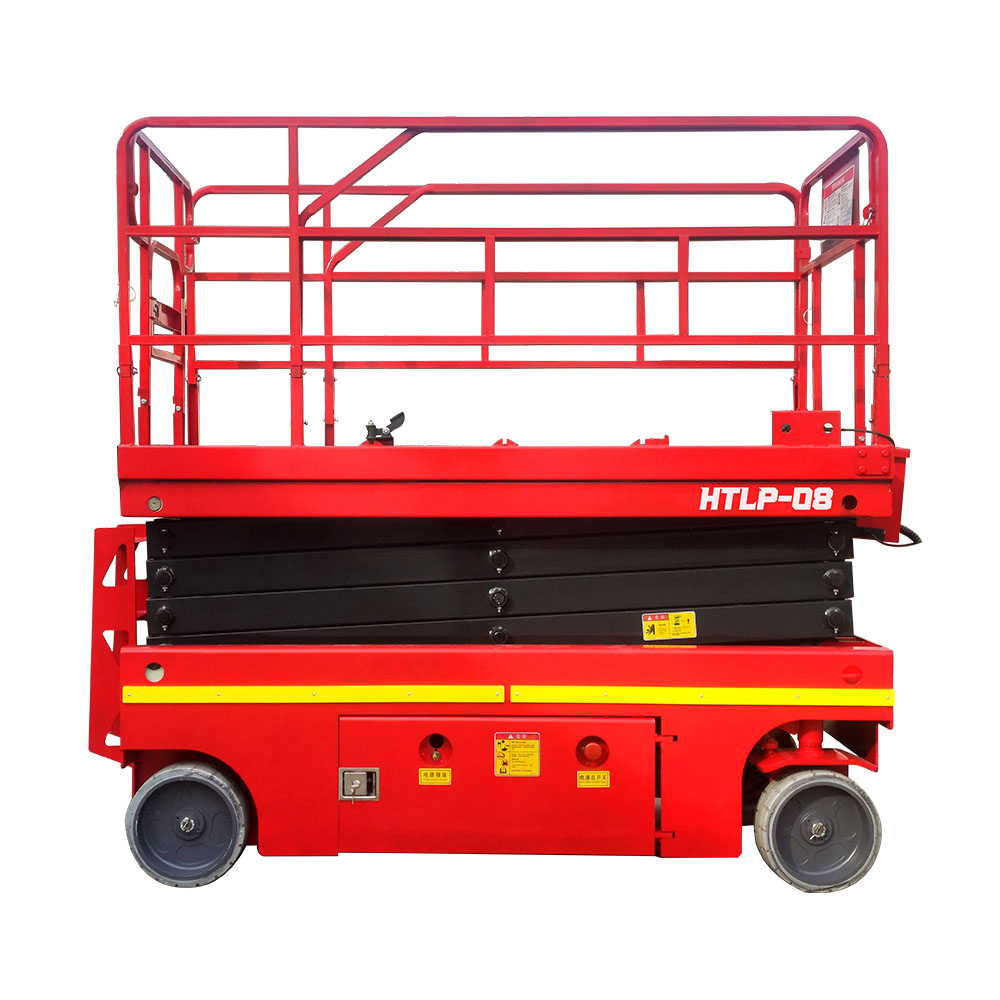

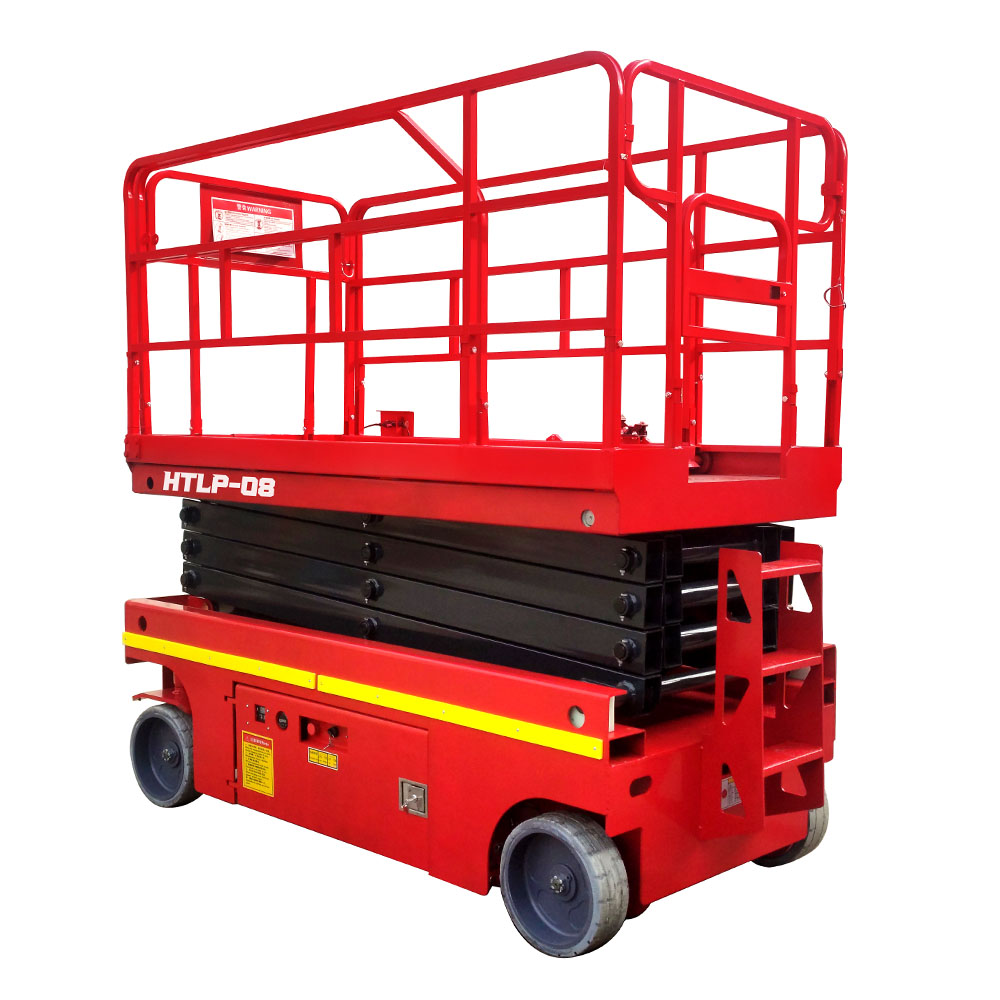

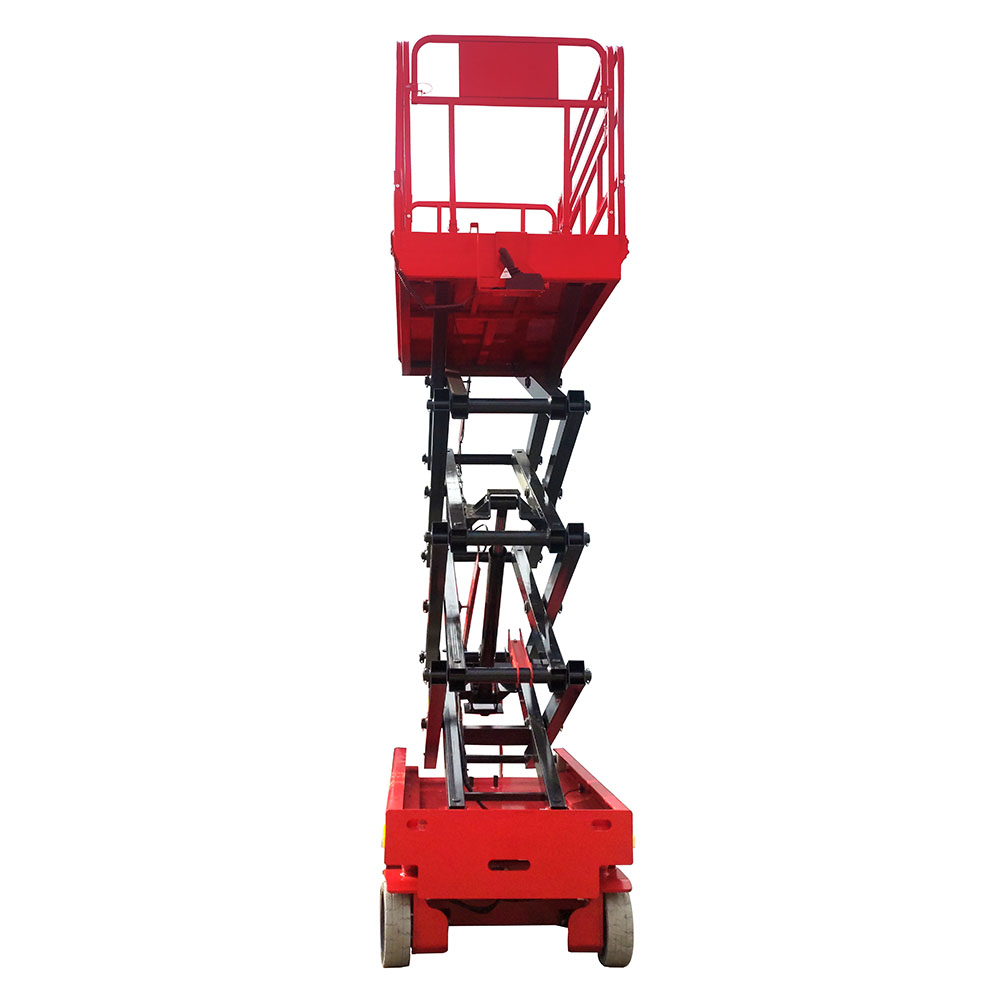

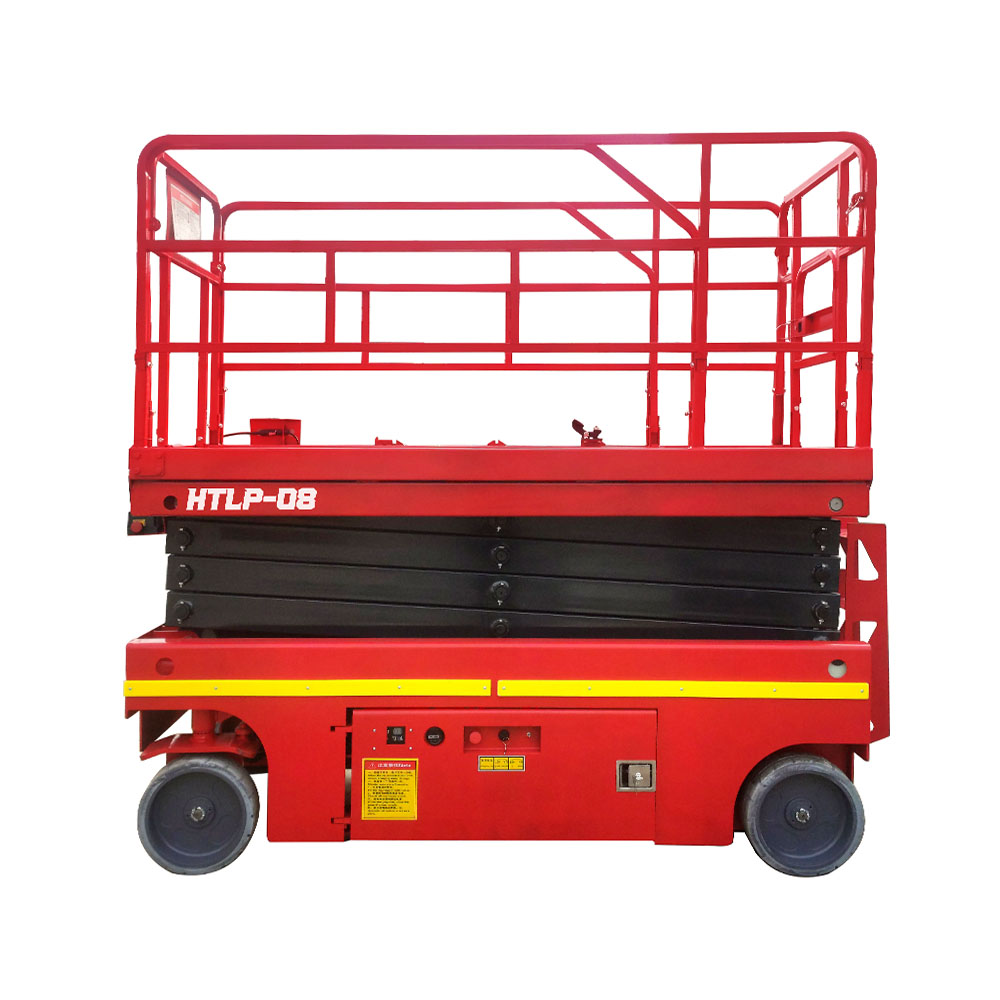

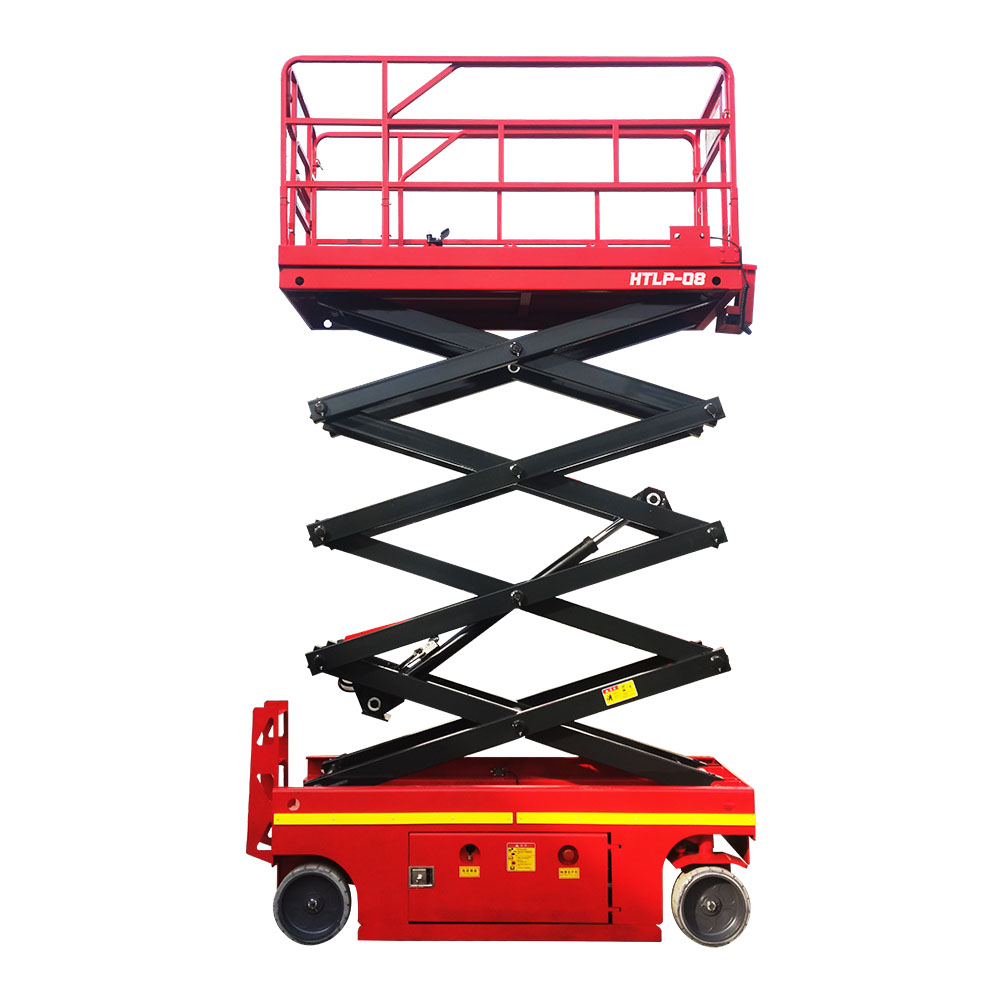

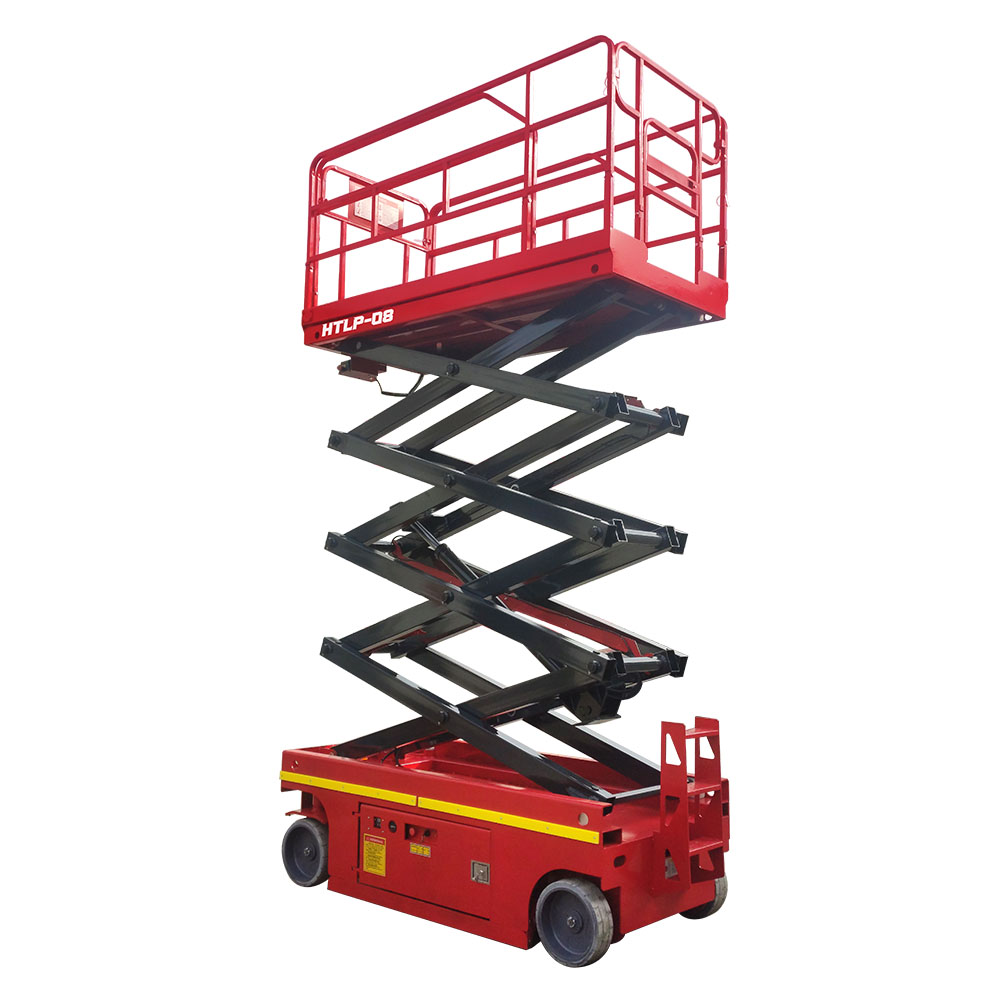

Self-propelled scissor lift has its own walking and liting function, with the steering wheel to control the direction of running,speed can walk and a brake device, battery driven DC motor running and movements, may also choose to AC motor or diesel engine running and movements, can also use wireless electronic remote control movements, without the need for manual traction and does not need an external power supply, flexible and convenient in movement, high-altitude operations more efficient and convenient is modern enterprise, safety production ideal high-altitude operations equipment.
|
Model |
HTLPO.3-8 |
|
Sale working load |
320kg |
|
Safe working load of extension |
113kg |
|
Maximum number of |
2 |
|
Maximum working height |
10m |
|
Maximum platform height |
8m |
|
overall length |
2600mm |
|
overall width |
1170mm |
|
Overall height （fence not folded） |
2400mm |
|
Overall height （fence folding） |
1700mm |
|
Working platform size （length x width） |
2400mm,1170mm |
|

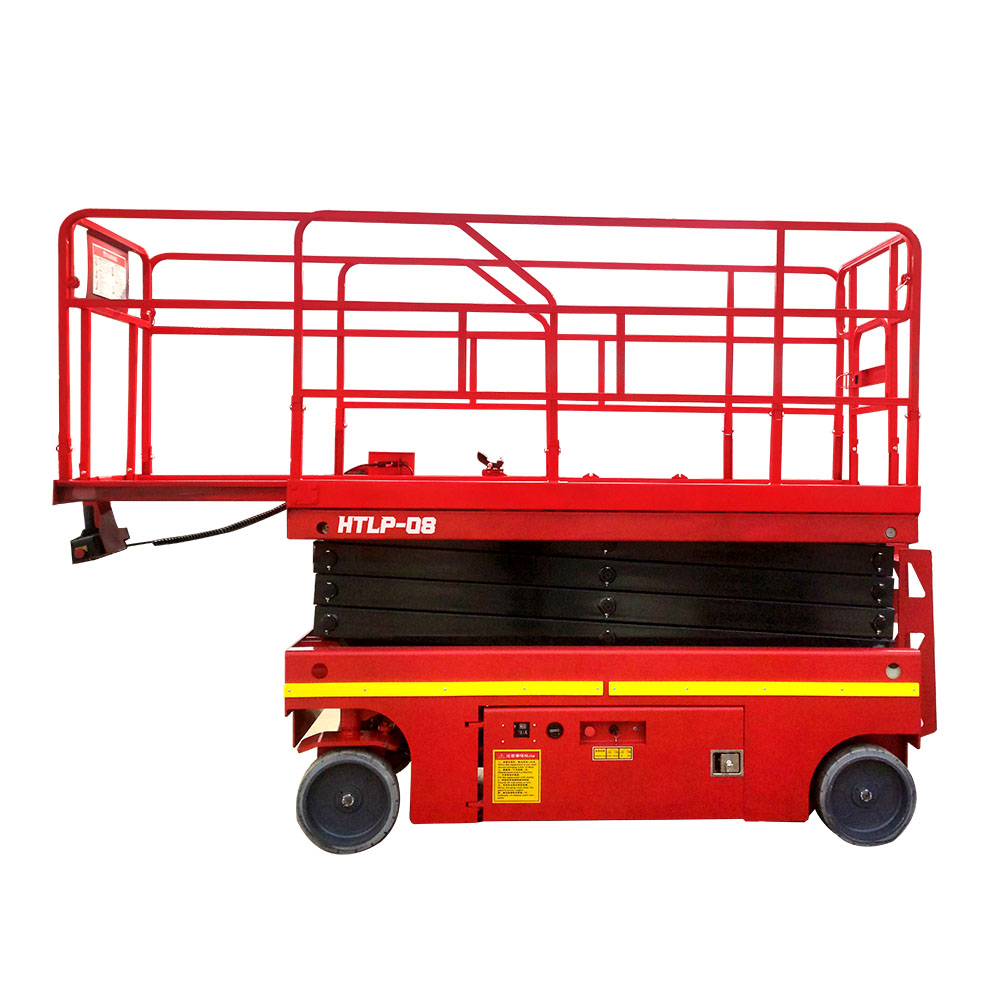

Platform extension size |
0.7m |
|
Minimum ground clearance （retracted） |
0.1m |
|
Minimum ground clearance （lifting |
0.019m |
|
Wheelbase |
1.89m |
|
Minimum turning radius （inner wheel） |
0 |
|
Minimum turning radius （outer wheel） |
2.20m |
|
Lifting motor / drive motor |
24v/4.0kw |
|
Machine ground speed (stowed) |
3.5km/h |
|
Machine travel speed （lifting state） |
0.8km/h |
|
Up / down speed |
80/90 sec |
|
Battery |
6V/230Ah |
|
Charger |
24v/25A |
|
Max Climb Capability |
25% |
|
Maximum allowable working angle （indoor/ outdoor） |
2° /3° |
|
tyre |
<1.381*127 |
|
Weight of whole machine |
2400kg |
