Home> products> Mini Excavator> HT-10B Mini Excavator / 1T Mini Excavator
  • HT-10B Mini Excavator / 1T Mini Excavator
  • HT-10B Mini Excavator / 1T Mini Excavator

HT-10B Mini Excavator / 1T Mini Excavator

High fuel efficiency,super power Saving energy and protecting environment.

HT-10B Mini Excavator / 1T Mini Excavator Description


HT-10B Mini Excavator Introduction


High fuel efficiency,super power Saving energy and protecting environment.

HT-10B Mini Excavator Parameter

Model

HT-10B

Weight

1000kg

Digging bucket capacity

0.025cbm/120kg

Bucket width

380mm

Engine

CHANGCHAI (KD192)

Bore stroke

Single cylinder, fan cool

Rated power

8.6 kw/3600r/min

Displacement

6. 8mlr

Main pump

CBK-F6.8

Swing motor

SJ-TECH (MP-1-160)

Traveling motor

KERSEN(OMS-2450)

Travel speed

1.5km/h

Main Demensions



Overall dimension( LxWxH)

2770x896x1490 mm

Wheelbase

910 mm

Total length of track

1230mm

Platform ground clearance

380 mm

Platform back turming radius

784mm

Chassis width

896 mm

Track width

180 mm

Chassis ground clearance

132 mm

Track height

320 mm

Operating Range



Max. Digging depth

1650 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

1375 mm

Max. Dumping height

2610 mm

Max. Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of bulldozer blade

255 mm

Max. Dumping height

1850 mm

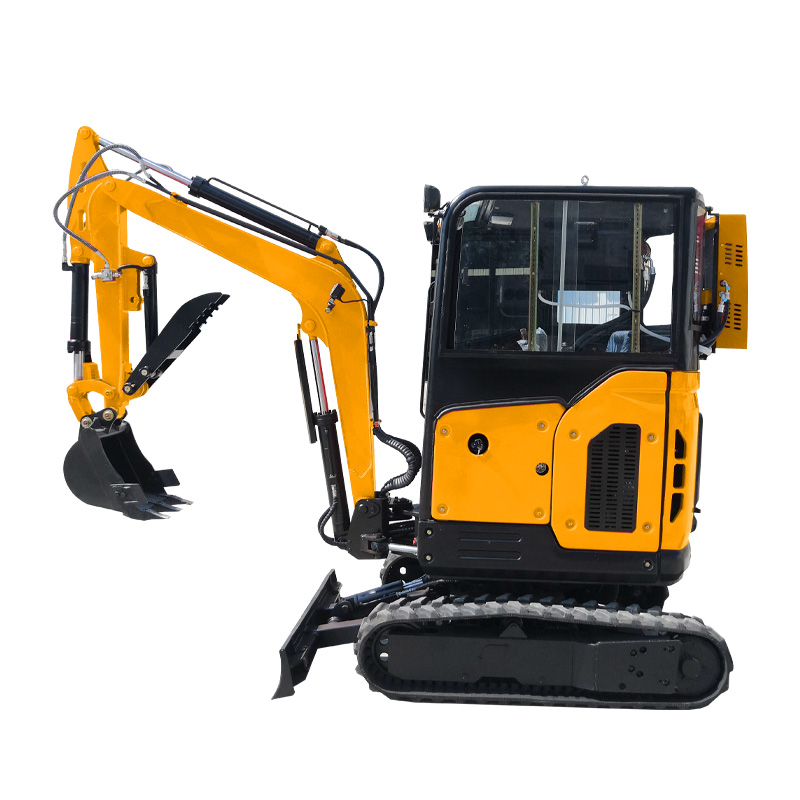

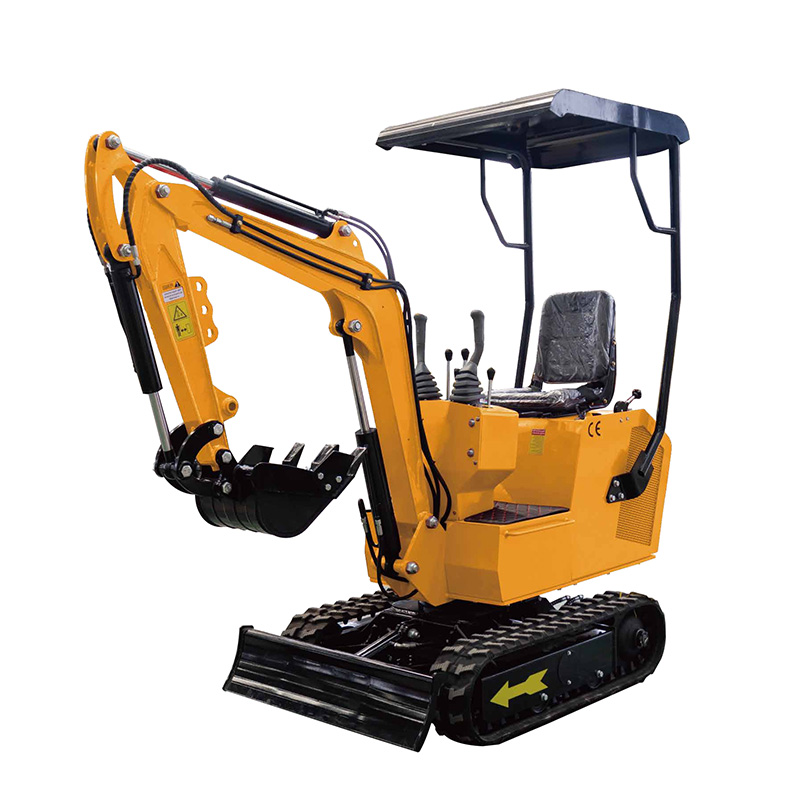

HT-10B Mini Excavator Images
