  • HT13 Mini Excavator / 1.3T Mini Excavator

HT13 Mini Excavator / 1.3T Mini Excavator

Double cylinder water cool engine, hydraulic joystick

HT13 Mini Excavator / 1.3T Mini Excavator Description

HT13 Mini Excavator Parmeter

Model

HT13

Weight

1300kg

Digging bucket capacity

0.025cbm/120kg

Bucket width

380mm

Engine

CHANGCHAI(EV80)

Bore stroke

double cylinder water cool

Rated power

12 kw/3600r/min

Displacement

0.794 L

Travel speed

3.5km/h

Main Demensions

Overall dimension(LxWxH)

2550x940x1380 mm

Wheelbase

770mm

Total length of track

1090mm

Platform ground clearance

380 mm

Platform back turning radius

733 mm

Chassis width

940 mm

Track width

180 mm

Chassis ground clearance

380 mm

Track height

320 mm

Operating Range

Max.Digging depth

1650 mm

Max.Vertical digging depth

1375 mm

Max.Digging height

2610 mm

Max.Dumping height

1850 mm

Max.Digging radius on ground

2850 mm

Min.Rotation radius

1330 mm

Max.Upgrade height of bulldozer blade

345 mm

Max.Digging depth of bulldozer blade

255 mm

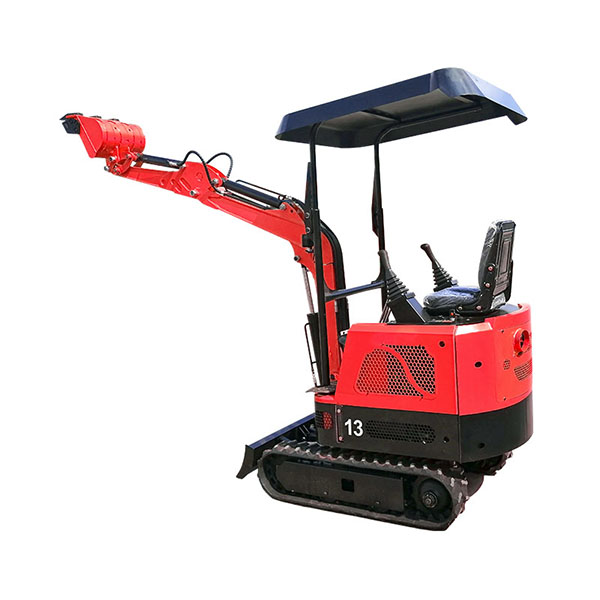

HT13 Mini Excavator Images
