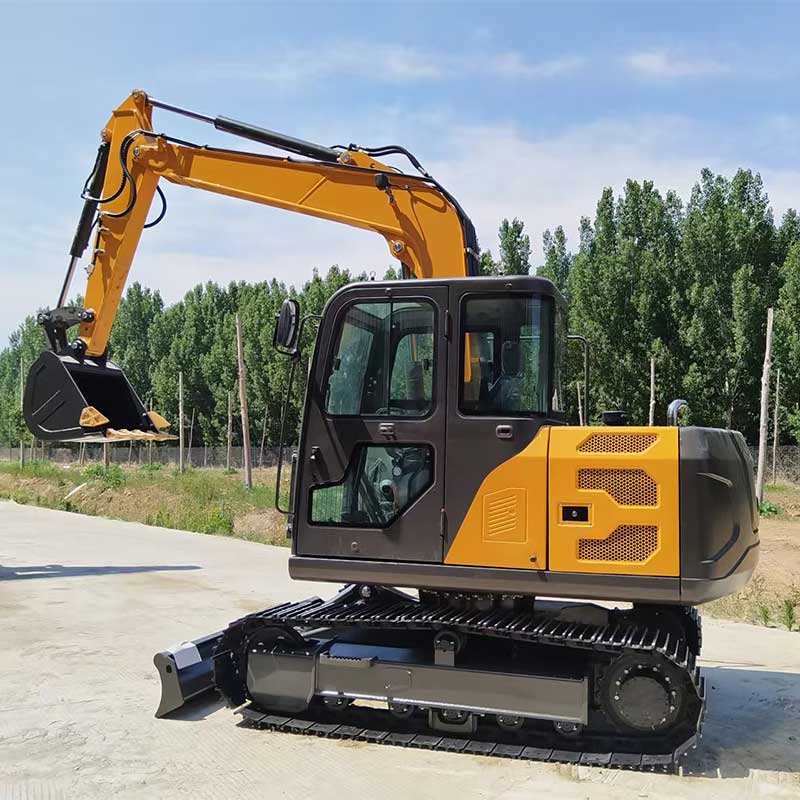

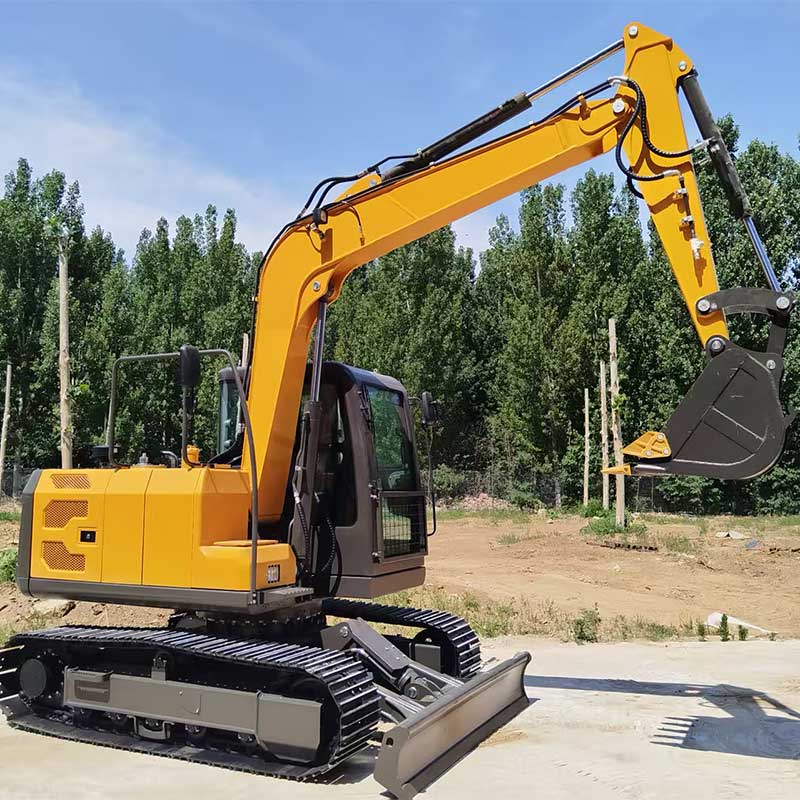

HT75 Crawler Excavator / 7.5T Wheel / Crawler Excavator

The 7 ton excavator have crawler type and wheel type, it's reliable and of user-friendly.

HT75 Crawler Excavator / 7.5T Wheel / Crawler Excavator Description

HT75 Crawler Excavator Instruction

The 7 ton excavator have crawler type and wheel type, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.


Engine: XINCHAI / YANGDONG / YUCHAI / YANMAR
Optional: Rubber Crawler or Steel Track


HT75 Crawler Excavator Paramteter



Model

HT75

Standard Bucket capacity

0.28m3

Swing speed

11rpm

Maximum Grade ability

35°

Maximum Bucket digging force

56KN

Maximum Arm digging force

38KN

Hydraulic system pressure

27Mpa

Machine weight

7500kg

Fuel tank

120L

Hydraulic oil tank

100L

Engine



Emission Standard

Tier 3/ Stage I

Make /Model

KUBOTA(V2607)

Power /Rotation speed

42. 4kw(58HP)@2000rpm

Number of cylinder

4

Track System



Maximum Travel speed

2.5/4. .5km/h

Width of track shoe

450mm

Number of track shoe per side

39pcs

Number of upper roller per side

1

Number of bottom roller per side

5

Machine Size



Overall dimension (L*W*H)

6054mm*2216mm*2672mm

Height of cabin

2672mm

Track length on ground(Axle base)

2209mm

Track gauge

1745mm

Minimum Ground clearance

375mm

Swing radius at tail

1730mm

Working Range



Maximum Digging height

7023mm

Maximum Dumping height

51 95mm

Maximum Digging depth

3898mm

Maximum Vertical digging depth

2968mm

Maximum Digging radius

6182mm

Minimum swing radius

1740mm

Maximum Lifting height of blade

382mm

Maximum Cutting depth of blade

332mm
